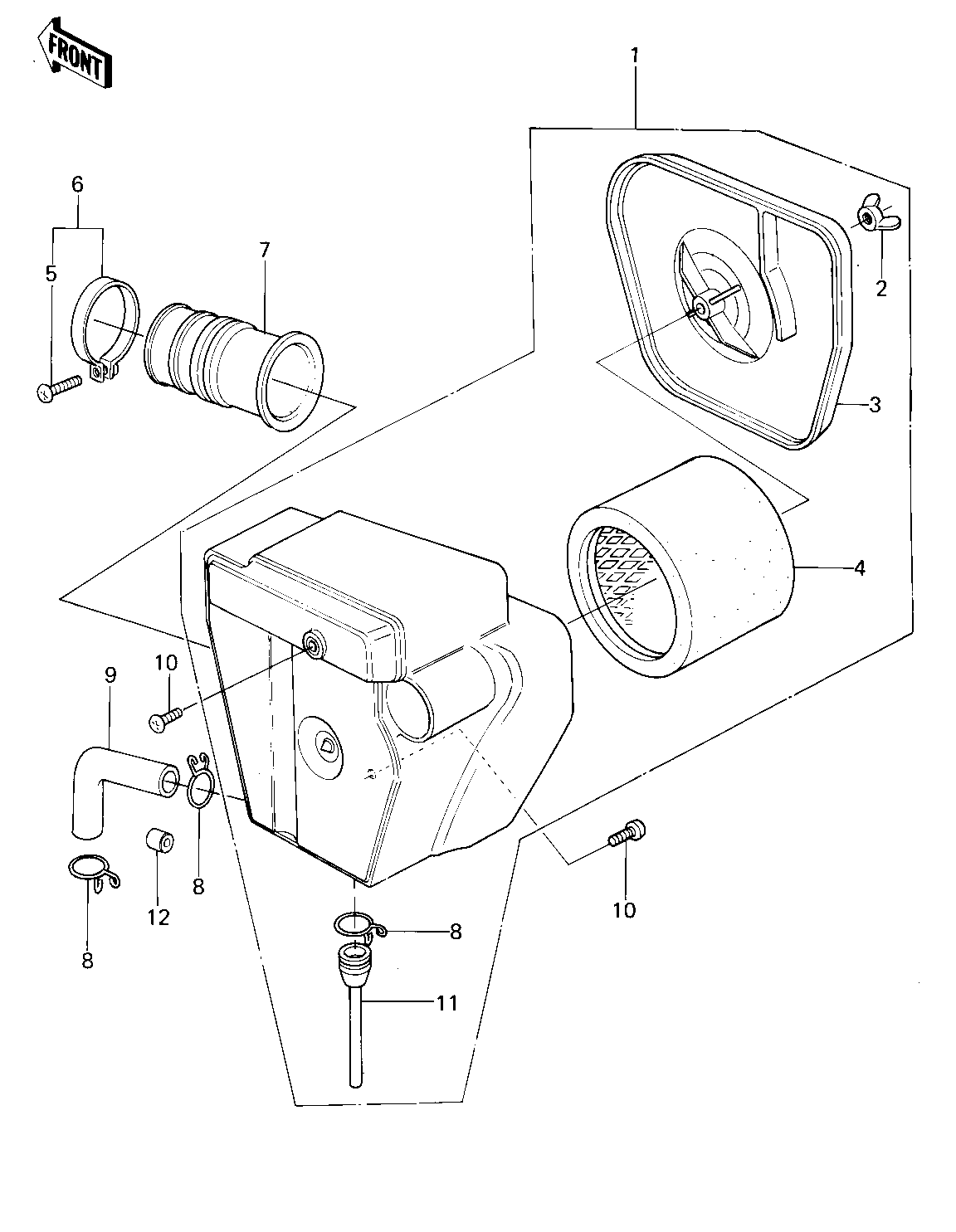

1978 KLR250 - AIR CLEANER ('78-'79 KL250-A1/A1A/A2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AIR CLEANER ASSY | 1 | 11010-1037 | 1 | KL250-A1 | |
| AIR CLEANER ASSY | 1 | 11010-1037 | 1 | KL250-A1A~ | |
| NUT,AIR CLEANER CAP | 2 | 92016-062 | 1 | ||
| CAP,AIR CLEANER | 3 | 11012-1088 | 1 | ||
| ELEMENT,AIR CLNR | 4 | 11013-1003 | 1 | ||
| SCREW-PAN-CROS,5X25 | 5 | 220B0525 | 1 | ||
| CLAMP,CARBURETOR | 6 | 92037-1021 | 1 | ||
| DUCT,CLEANER-CARB | 7 | 14073-1003 | 1 | ||
| CLAMP,BREATHER TUBE | 8 | 92037-213 | 3 | ||
| TUBE,BREATHER | 9 | 92059-1004 | 1 | ||
| SCREW PAN HEAD 6X10 | 10 | 220B0610 | 2 | ||
| TUBE,AIR CLNR DRAIN | 11 | 92059-1020 | 1 | ||
| BREATHER VALVE | 12 | 92062-1002 | 1 |
