Parts Diagrams |

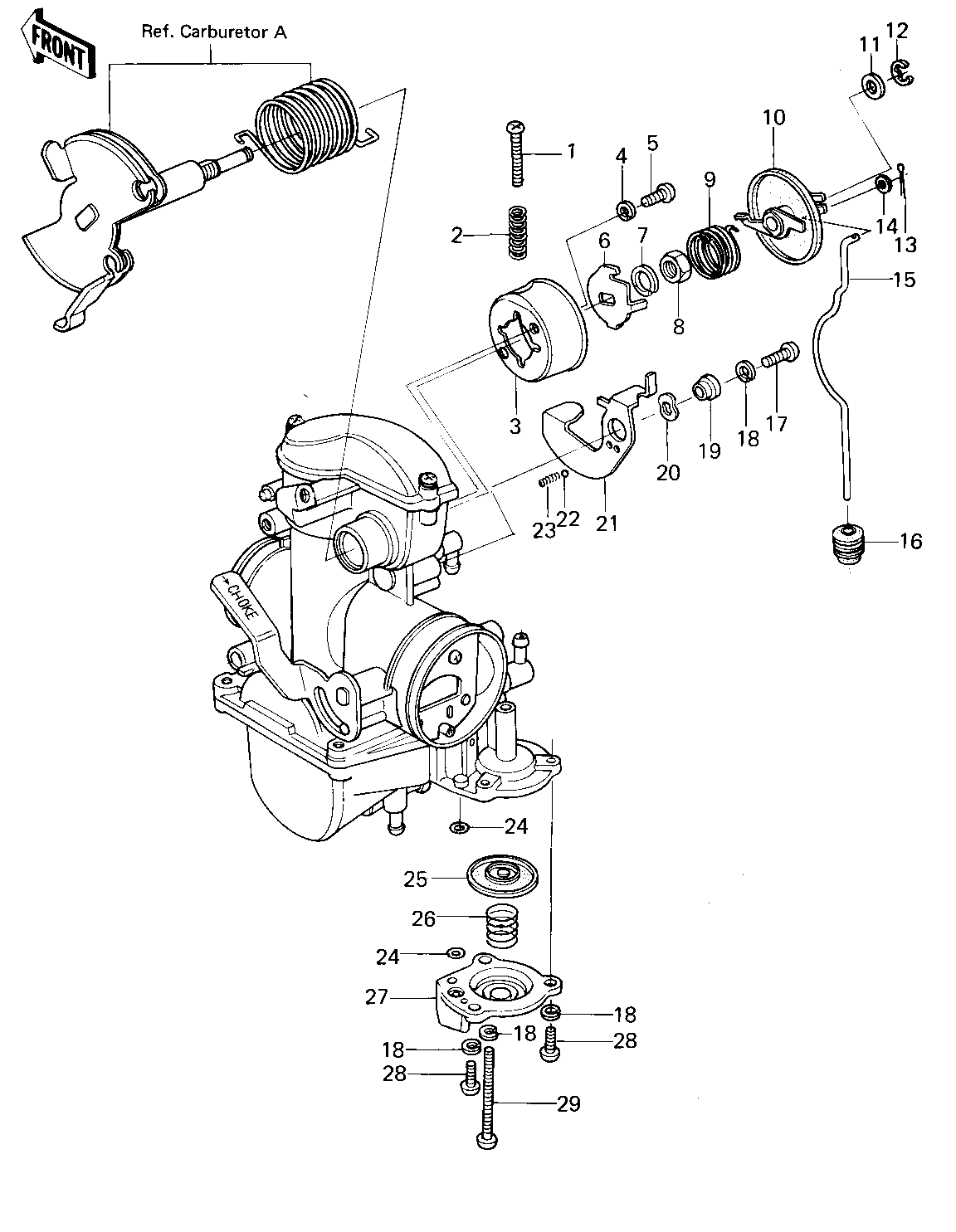

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW,TAPPING,4X16 | 1 | 92009-1044 | 1 | NOT REQUIRED FOR 16001-1009 | |
| SPRING, | 2 | 92081-1091 | 1 | NOT REQUIRED FOR 16001-1009 | |
| CAP,ROCKER ARM | 3 | 11012-1055 | 1 | NOT REQUIRED FOR 16001-1009 | |
| WASHER SPRING 4MM | 4 | 461F0400 | 2 | NOT REQUIRED FOR 16001-1009 | |
| SCREW PAN HEAD 4X6 | 5 | 220B0406 | 2 | NOT REQUIRED FOR 16001-1009 | |
| ARM-ROCKER,CARBURETOR | 6 | 39003-1003 | 1 | NOT REQUIRED FOR 16001-1009 | |
| WASHER,SPRING,7M/M | 7 | 92022-1090 | 1 | NOT REQUIRED FOR 16001-1009 | |
| NUT,7M/M | 8 | 92015-1048 | 1 | NOT REQUIRED FOR 16001-1009 | |
| SPRING,ROCKER ARM | 9 | 92081-1090 | 1 | NOT REQUIRED FOR 16001-1009 | |
| ARM-ROCKER,CARBURETOR | 10 | 39003-1002 | 1 | NOT REQUIRED FOR 16001-1009 | |
| WASHER PLAIN 5MM | 11 | 410B0500 | 1 | NOT REQUIRED FOR 16001-1009 | |
| CIRCLIP SELD BEM FIT | 12 | 482K4000 | 1 | NOT REQUIRED FOR 16001-1009 | |
| PIN COTTER 1.2X10 | 13 | 550D1210 | 1 | NOT REQUIRED FOR 16001-1009 | |
| WASHER PLAIN 3MM | 14 | 410B0300 | 1 | NOT REQUIRED FOR 16001-1009 | |
| ROD,DIAPHRAGM | 15 | 46102-1002 | 1 | NOT REQUIRED FOR 16001-1009 | |
| CAP,RUBBER | 16 | 11012-1056 | 1 | NOT REQUIRED FOR 16001-1009 | |
| SCREW-PAN-CROS | 17 | 220B0414 | 1 | NOT REQUIRED FOR 16001-1009 | |
| WASHER SPRING 4MM | 18 | 461F0400 | 4 | NOT REQUIRED FOR 16001-1009 | |
| COLLAR,LINK LEVER | 19 | 92027-1128 | 1 | ||
| WASHER,SPRING | 20 | 92022-1055 | 1 | NOT REQUIRED FOR 16001-1009 | |
| LEVER,LINK | 21 | 13168-1031 | 1 | NOT REQUIRED FOR 16001-1009 | |
| BALL,STEEL,1/8" | 22 | 600A0400 | 1 | NOT REQUIRED FOR 16001-1009 | |
| SPRING | 23 | 92081-1004 | 1 | NOT REQUIRED FOR 16001-1009 | |
| SEAL-"U"RING | 24 | 92093-1046 | 2 | NOT REQUIRED FOR 16001-1009 | |
| DIAPHRAGM,CARBURETOR | 25 | 43028-1006 | 1 | NOT REQUIRED FOR 16001-1009 | |
| SPRING,DIAPHRAGM | 26 | 92081-1092 | 1 | NOT REQUIRED FOR 16001-1009 | |
| COVER-PUMP | 27 | 14025-1076 | 1 | NOT REQUIRED FOR 16001-1009 | |
| SCREW PAN HEAD 4X10 | 28 | 220B0410 | 2 | NOT REQUIRED FOR 16001-1009 | |
| SCREW-PAN-CROS | 29 | 220B0440 | 1 | NOT REQUIRED FOR 16001-1009 |
