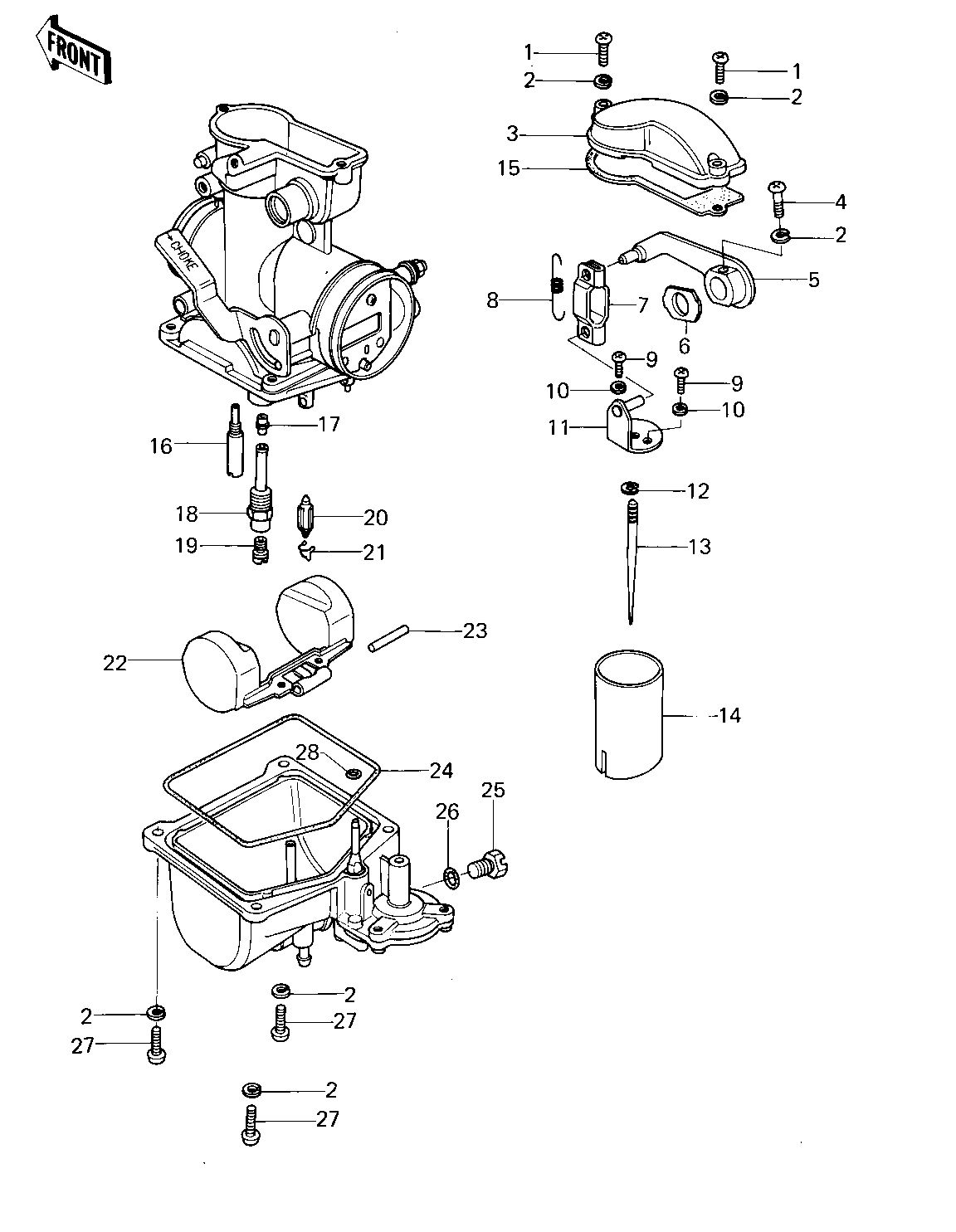

1978 KLR250 - CARBURETOR PARTS ('78-'79 KL250-A1/A1A/A

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW-PAN-CRSOSS,4X12 1 220B0412 2
WASHER SPRING 4MM 2 461F0400 7 USE FOR 16001-1009
WASHER SPRING 4MM 2 461F0400 6 USE FOR 16001-1045
TOP,MIXING CHAMBER 3 16005-1004 1
SCREW,4M/M 4 92009-1030 1
LEVER,LINK 5 13168-1016 1
COLLAR 6 92027-1080 1
ARM,LINK 7 21083-1002 1
SPRING,TENTION 8 92081-1057 1
SCREW PAN HEAD 3X8 9 220B0308 2
WASHER SPRING 3MM 10 461F0300 2
PLATE,VALVE 11 13169-1094 1
CIRCLIP,JET NEEDLE 12 92037-1039 1
JET NEEDLE,#272011 13 16009-1008 1 USE FOR 16001-1009
JET NEEDLE,F2352G 13 16009-1020 1 USE FOR 16001-1045
VALVE,THROTTLE,C.A2.5 14 16025-1007 1 USE FOR 16001-1009
VALVE,THROTTLE,CA3.0 14 16025-1023 1 USE FOR 16001-1045
GASKET,TOP CHAMBER 15 11009-1047 1
PILOT JET.#38 16 92064-1004 1 USE FOR 16001-1009
PILOT JET,#40 16 92064-1016 1 USE FOR 16001-1045
NEEDLE JET 17 16017-1010 1
HOLDER,NEEDLE JET 18 13091-1014 1 USE FOR 16001-1009
HOLDER,NEEDLE JET 18 13091-1031 1 USE FOR 16001-1045
MAIN JET,#140 19 92063-1013 1 USE FOR 16001-1009
MAIN JET,#135 19 92063-1014 1 USE FOR 16001-1045
MAIN JET,#138 19 92063-1015 (1 OFF-ROAD USE ONLY
MAIN JET,#142 19 92063-1016 (1 OFF-ROAD USE ONLY
MAIN JET,#145 19 92063-1017 (1 OFF-ROAD USE ONLY
FLOAT VALVE 20 16030-1007 1
CLIP,FLOAT VALVE 21 16044-007 1
FLOAT 22 16031-1001 1
FLOAT PIN 23 92043-1002 1
"O" RING,FLOAT BALL 24 16019-024 1
SCREW,DRAIN 25 92009-1003 1
"O" RING,DRAIN SCREW 26 92055-1003 1
SCREW-PAN-CROS 27 220B0414 4 USE FOR 16001-1009
SCREW-PAN-CROS 27 220B0414 3 USE FOR 16001-1045
"0" RING 28 92055-1026 1 NOT REQUIRED FOR 16001-1009
