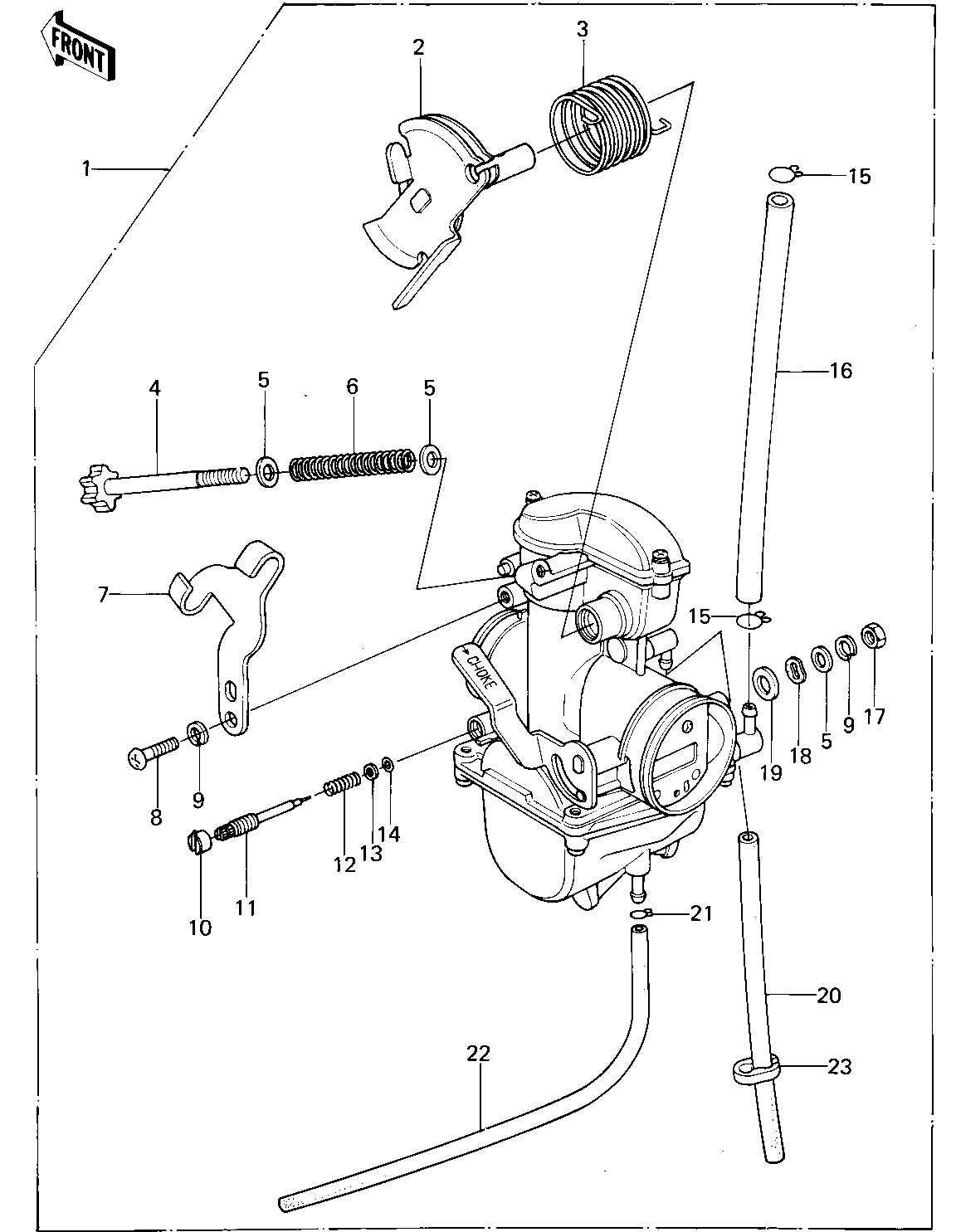

1978 KLR250 - CARBURETOR ASSY ('78-'79 KL250-A1/A1A/A2
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CARBURETOR ASSY | 1 | 16001-1148 | 1 | KL250-A1 | |
| CARBURETOR ASSY | 1 | 16001-1148 | 1 | KL250-A2~ | |
| CARBURETOR,RH,OUTSIDE | 1 | 16001-1405 | 1 | KL250-A1A~ | |
| SHAFT,THROTTLE | 2 | 16041-1001 | 1 | USE FOR 16001-1009 | |
| SHAFT,THROTTLE | 2 | 16041-1002 | 1 | USE FOR 16001-1045 | |
| SPRING | 3 | 92081-1056 | 1 | ||
| SCREW,THROTTLE STOP | 4 | 16021-1001 | 1 | ||
| WASHER PLAIN 5MM | 5 | 410B0500 | 3 | ||
| SPRING,THR.STOP SCREW | 6 | 92081-1005 | 1 | ||
| PLATE,STAY | 7 | 13169-1095 | 1 | ||
| SCREW-PAN-CROS | 8 | 220B0514 | 1 | ||
| WASHER SPRING 5MM | 9 | 461F0500 | 2 | ||
| CAP,JET NEEDLE | 10 | 11012-3727 | 1 | NOT REQUIRED FOR 16001-1045 | |
| SCREW,PILOT ADJUST | 11 | 16014-1011 | 1 | ||
| SPRING,PIROT ADJ SCRW | 12 | 92081-1002 | 1 | ||
| WASHER,PLAIN | 13 | 92022-1003 | 1 | ||
| O RING,PILOT ADJ | 14 | 92055-1002 | 1 | ||
| CLAMP,FUEL HOSE | 15 | 92037-1040 | 2 | ||
| HOSE,FUEL INLET | 16 | 92059-1001 | 1 | ||
| NUT,5MM | 17 | 311B0500 | 1 | ||
| WASHER,SPRING | 18 | 92022-1055 | 1 | ||
| WASHER PLAIN 6MM | 19 | 410B0600 | 1 | ||
| HOSE | 20 | 92059-110 | 1 | ||
| CLAMP,TUBE,OVERFLOW | 21 | 92037-1142 | 1 | ||
| HOSE,FUEL OVERFLOW | 22 | 92059-1046 | 1 | ||
| CLAMP,OVERFLOW | 23 | 92037-1067 | 1 |
| CARBURETOR ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KL250-A1 |
| CARBURETOR ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KL250-A2~ |
| CARBURETOR,RH,OUTSIDE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | KL250-A1A~ |
| SHAFT,THROTTLE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 16001-1009 |
| SHAFT,THROTTLE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | USE FOR 16001-1045 |
| SPRING | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,THROTTLE STOP | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 5MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SPRING,THR.STOP SCREW | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,STAY | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAP,JET NEEDLE | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | NOT REQUIRED FOR 16001-1045 |
| SCREW,PILOT ADJUST | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,PIROT ADJ SCRW | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,PILOT ADJ | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,FUEL HOSE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOSE,FUEL INLET | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,SPRING | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,TUBE,OVERFLOW | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOSE,FUEL OVERFLOW | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,OVERFLOW | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
