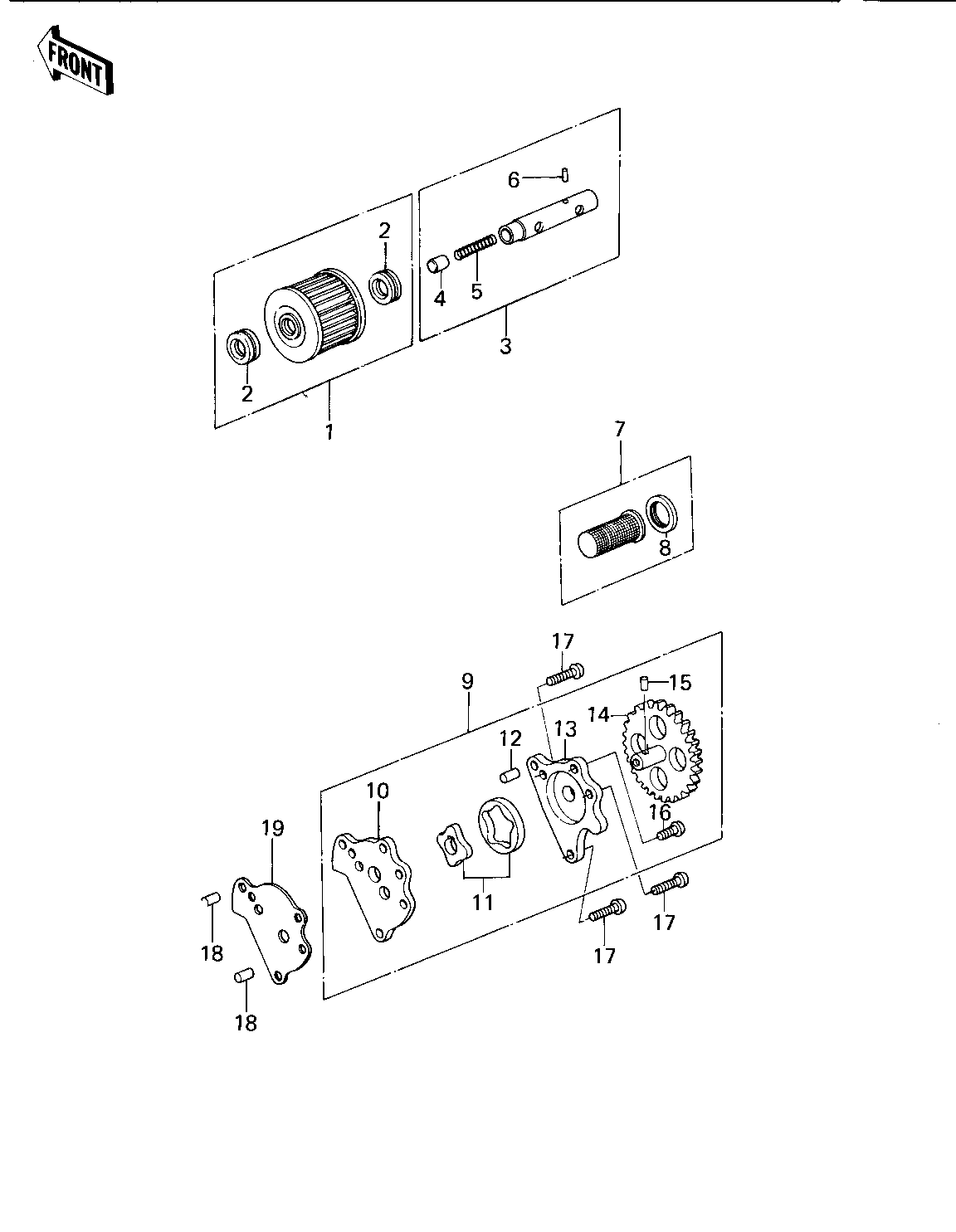

1978 KLR250 - OIL PUMP/OIL FILTER ('78-'79 KL250-A1/A1
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER,OIL | 1 | 16099-004 | 1 | ||
| GROMMET,OIL FILTER | 2 | 92071-101 | 2 | ||
| BOLT ASSY,OIL FILTER | 3 | 16156-002 | 1 | ||
| PISTON | 4 | 92136-002 | 1 | ||
| SPRING,PISTON | 5 | 92081-043 | 1 | ||
| SPRING PIN | 6 | 92043-123 | 1 | ||
| STRAINER ASSY,OIL | 7 | 16097-1001 | 1 | ||
| GROMMET,OIL STRAINER | 8 | 92071-100 | 1 | ||
| OIL PUMP ASSY | 9 | 16082-066 | 1 | ||
| BODY,OIL PUMP | 10 | 16141-006 | 1 | ||
| ROTOR,OIL PUMP | 11 | 16154-5001 | 1 | ||
| PIN,DOWEL,6X8 | 12 | 551A0608 | 1 | ||
| COVER,OIL PUMP | 13 | 16142-006 | 1 | ||
| GEAR,OIL PUMP | 14 | 16085-026 | 1 | ||
| PIN,DOWEL | 15 | 92042-041 | 1 | ||
| SCREW PAN HEAD 6X14 | 16 | 220B0614 | 1 | ||
| SCREW PAN HEAD 6X25 | 17 | 220B0625 | 3 | ||
| PIN,DOWEL,6X8 | 18 | 551A0608 | 2 | ||
| GASKET,OIL PUMP | 19 | 11060-1115 | 1 |
