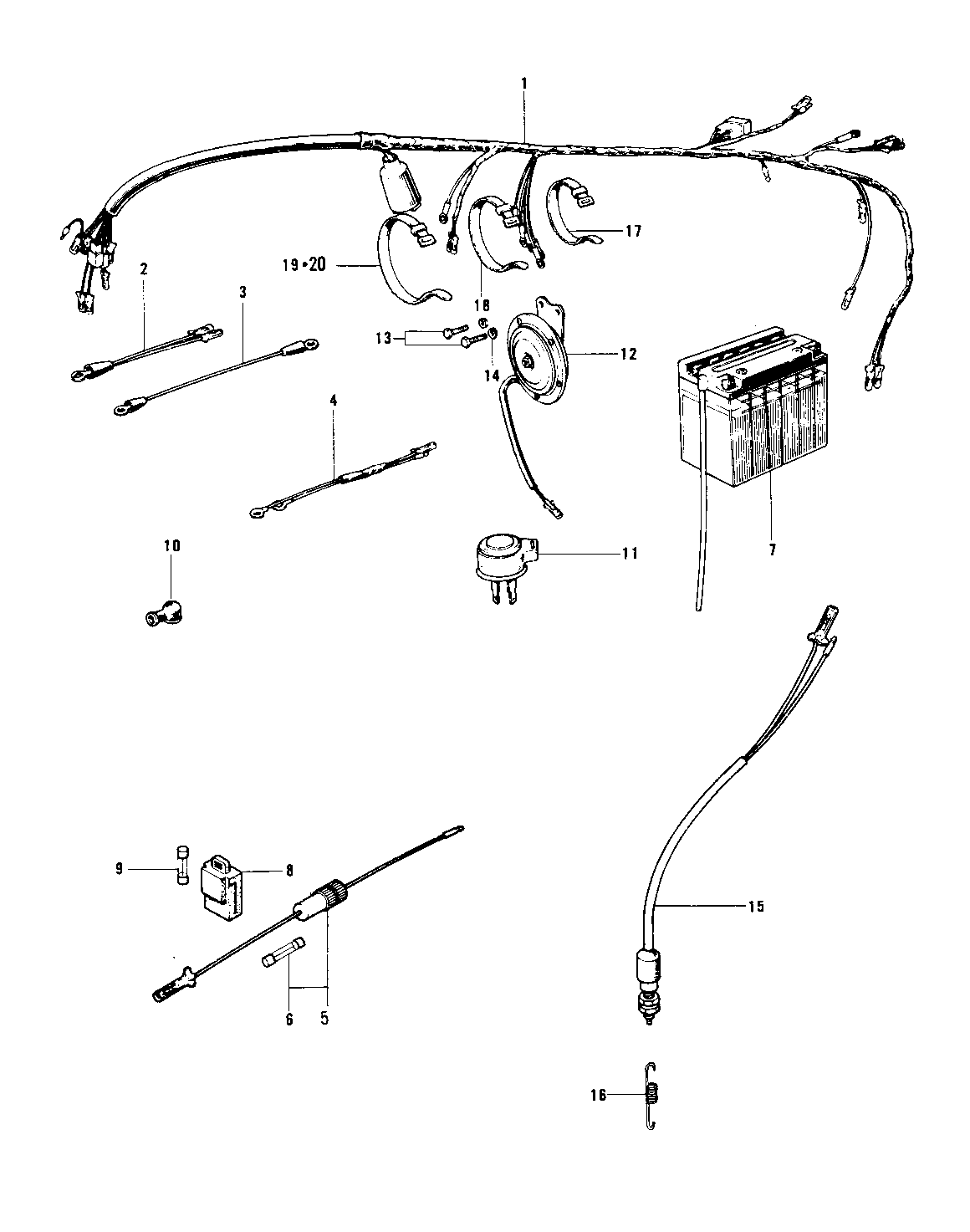

1976 KH250-A5 - CHASSIS ELECTRICAL EQUIPMENT (S1-A/B/C)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WIRING HARNESS-MAIN 1 26001-081 S1-A
WIRING HARNESS,MAIN 1 26001-106 S1-B/C
WIRE BATTERY LEAD 2 26010-015 S1-A
WIRE,BATTERY LEAD 2 26010-033 S1-B/C
WIRE BATTERY GROUND 3 26010-017
WIRE-SIGNAL LAMP LEAD 4 26011-064
FUSE ASSY 5 26004-015 S1-A
FUSE ASSY 5 26004-013 S1-B/C
FUSE-20A 6 26006-005 S1-A
FUSE 20A 6 26006-002 S1-B/C
FB BAT 12N5.5-4A 7 26012-022 12N5.5-4A
HOLDER-SPARE FUSE 8 26016-004 S1-A
HOLDER,SPARE FUSE 8 26016-002 S1-B/C
FUSE-20A 9 26006-005 S1-A
FUSE 20A 9 26006-002 S1-B/C
CAP BAT TERMINAL RUBB 10 92073-001
RELAY-TURN SIGNAL 11 27002-011
HORN 12 27003-042 S1-A/B
HORN 12 27003-042 S1-C
BOLT HEX HEAD 8X16 13 116B0816
WASHER SPRING 8MM 14 461F0800
SWITCH-BRAKE LAMP 15 27010-020 S1-A/B
SWITCH-BRAKE LAMP 15 27010-015 S1-C
SPRING-BRAKE LAMP SW 16 27011-013
BAND,SHORT 17 92072-030
BAND,MIDDLE 18 92072-031 S1-A
BAND,MIDDLE 18 92072-031 S1-B/C
BAND,LONG 19 92072-032
BAND,WIRING HARNESS 20 92072-056 S1-B/C
