Parts Diagrams |

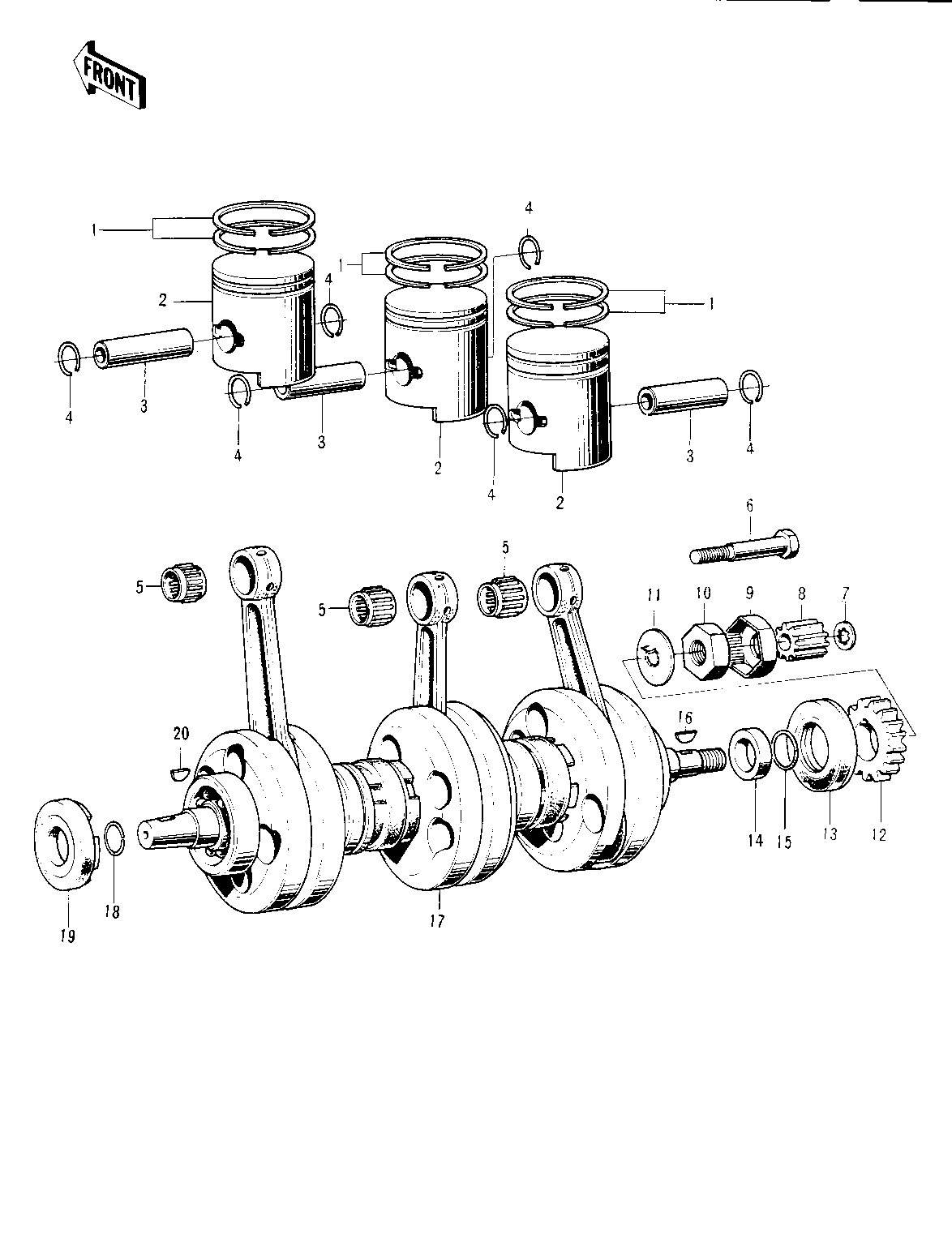

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RING SET,STD | 1 | 13008-033 | |||
| RING SET,0.040'O.S | 1 | 13024-041 | |||
| RING SET,0.020'O.S | 1 | 13025-038 | |||
| PISTON,STD | 2 | 13001-056 | |||
| PISTON,0.040'O.S | 2 | 13027-055 | |||
| PISTON,0.020' O.S | 2 | 13029-057 | |||
| PIN-PISTON | 3 | 13002-021 | |||
| CIRCLIP PISTON PIN | 4 | 92036-005 | |||
| NEEDLE BEARING SM END | 5 | 13033-007 | |||
| BOLT-OIL PUMP GEAR | 6 | 92003-068 | |||
| WASHER LOCK 6MM | 7 | 463H0600 | |||
| PINION-OIL PUMP | 8 | 16084-014 | |||
| WASHER LOCK | 9 | 92024-021 | |||
| NUT 18MM | 10 | 92015-019 | |||
| WASHER,LOCK,18MM | 11 | 92024-067 | |||
| PINION-PRIMARY | 12 | 13121-021 | |||
| OIL SEAL,TC326210 | 13 | 92050-052 | |||
| COLLAR CRANK OIL SEAL | 14 | 92027-031 | |||
| "0" RING,22MM | 15 | 92055-018 | |||
| WOODRUFF KEY | 16 | 92038-015 | |||
| CRANK CONROD ASSY | 17 | 13031-1008 | |||
| CIRCLIP | 18 | 92036-013 | |||
| OIL SEAL TCY256210 | 19 | 92050-041 | |||
| WOODRUFF KEY | 20 | 92038-001 |
| RING SET,STD | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RING SET,0.040'O.S | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RING SET,0.020'O.S | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PISTON,STD | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PISTON,0.040'O.S | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PISTON,0.020' O.S | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PIN-PISTON | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CIRCLIP PISTON PIN | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NEEDLE BEARING SM END | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-OIL PUMP GEAR | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK 6MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PINION-OIL PUMP | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT 18MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER,LOCK,18MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PINION-PRIMARY | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,TC326210 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| COLLAR CRANK OIL SEAL | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| "0" RING,22MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CRANK CONROD ASSY | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CIRCLIP | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| OIL SEAL TCY256210 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
