Parts Diagrams |

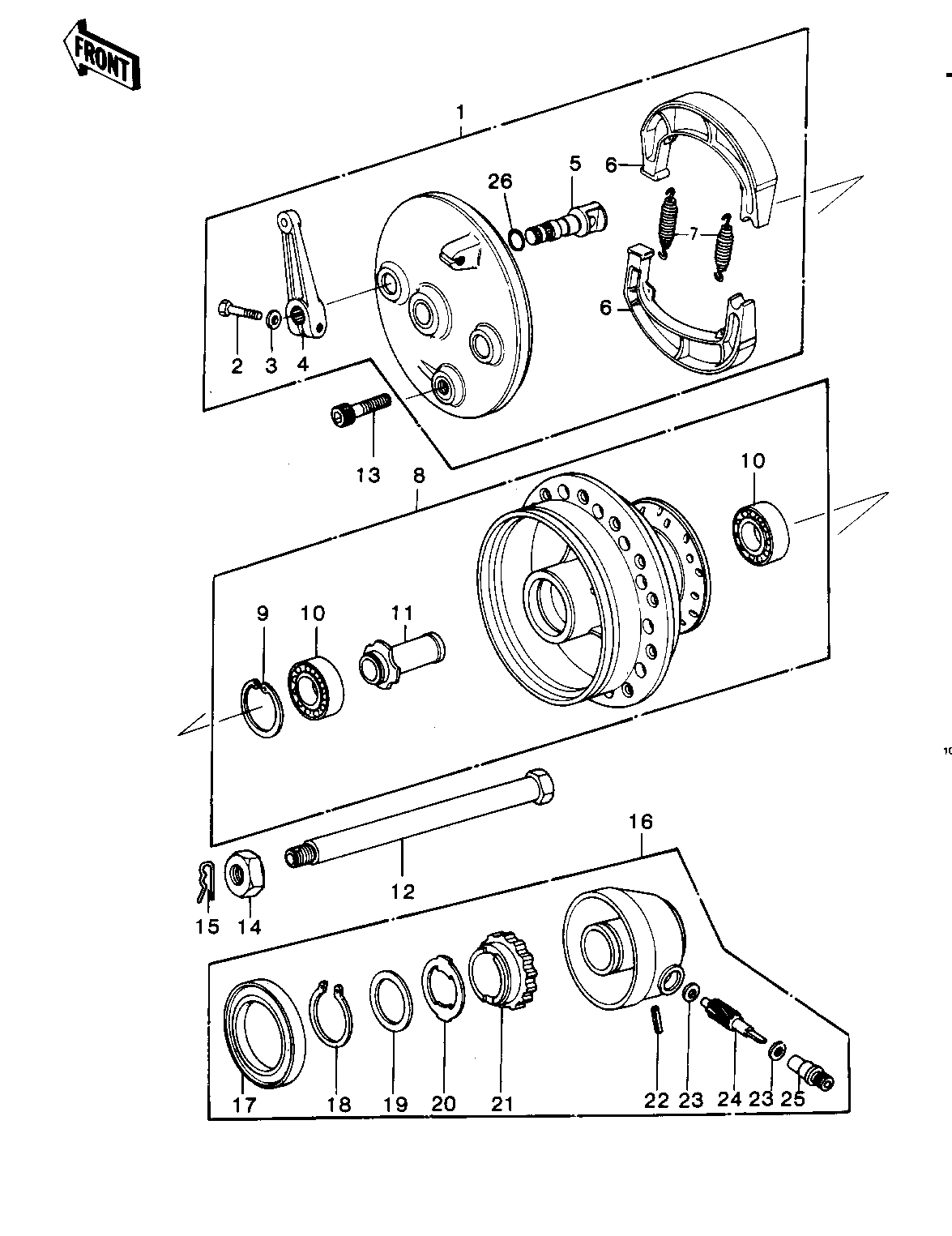

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-ASY,FR BRK | 1 | 41035-1002 | 1 | ||
| BOLT-UPSET | 2 | 112G0622 | 1 | ||
| WASHER PLAIN 6MM | 3 | 410B0600 | 1 | ||
| LEVER,FRONT BRAKE CAM | 4 | 41053-1003 | 1 | ||
| CAM SHAFT,BRAKE | 5 | 41050-1002 | 1 | ||
| SHOE-BRAKE | 6 | 41048-1068 | 2 | ||
| SPRING-BRAKE SHOE | 7 | 42020-004 | 2 | ||
| DRUM-ASSY,FR BRK | 8 | 41034-4001 | 1 | ||
| CIRCLIP,42MM | 9 | 92033-1041 | 1 | ||
| BEARING,FRONT DRUM | 10 | 92045-033 | 2 | ||
| COLLAR,FRONT BRAKE | 11 | 92027-1034 | 1 | ||
| AXLE,FRONT | 12 | 41068-4001 | 1 | ||
| BOLT,SOCKET,10X40 | 13 | 92001-4002 | 1 | ||
| NUT,14MM | 14 | 42045-020 | 1 | ||
| PIN,COTTER | 15 | 550D3230 | 1 | ||
| GEAR BOX ASSY | 16 | 41078-011 | 1 | ||
| OIL SEAL,#50659 | 17 | 654A506509 | 1 | ||
| CIRCLIP 24MM | 18 | 480J2400 | 1 | ||
| WASHER,THRUST | 19 | 41065-005 | 1 | ||
| RECEIVER,SPEEDOMETER | 20 | 41064-015 | 1 | ||
| GEAR SPEEDOMETER 25T | 21 | 41059-027 | 1 | ||
| PIN,SPRING | 22 | 41082-001 | 1 | ||
| WASHER THRST SPD PINI | 23 | 41063-001 | 2 | ||
| PINION,SPEEDOMETER | 24 | 41060-015 | 1 | ||
| BUSH,SPEEDMETER CABLE | 25 | 41062-005 | 1 | ||
| "O" RING,15MM | 26 | 670B2015 | 1 |
| PANEL-ASY,FR BRK | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER,FRONT BRAKE CAM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAM SHAFT,BRAKE | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHOE-BRAKE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRAKE SHOE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DRUM-ASSY,FR BRK | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,42MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING,FRONT DRUM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FRONT BRAKE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| AXLE,FRONT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X40 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,14MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,COTTER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR BOX ASSY | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL,#50659 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP 24MM | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RECEIVER,SPEEDOMETER | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR SPEEDOMETER 25T | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,SPRING | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER THRST SPD PINI | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PINION,SPEEDOMETER | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BUSH,SPEEDMETER CABLE | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,15MM | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
