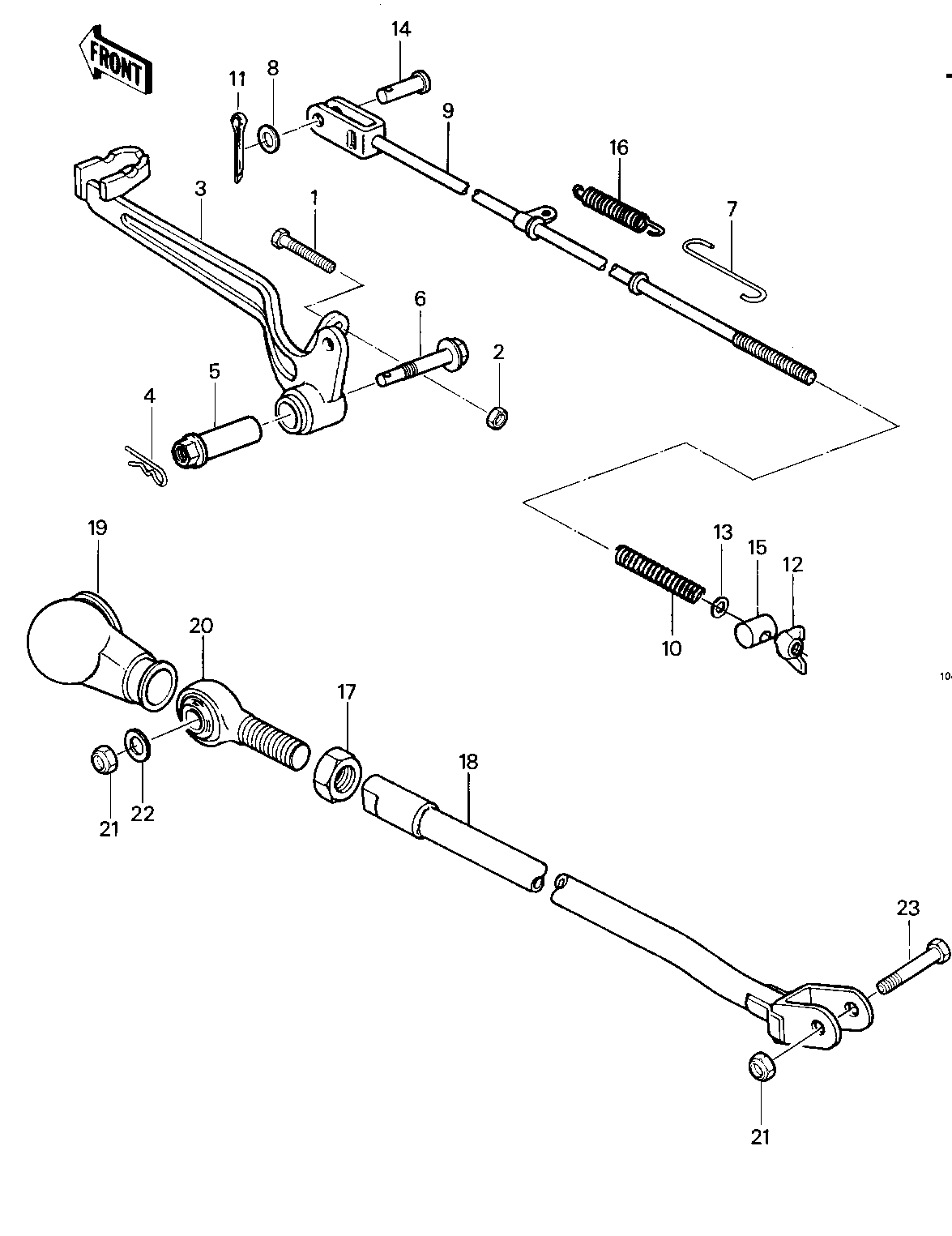

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT 6X22 | 1 | 112B0622 | 1 | ||
| NUT 6MM | 2 | 311B0600 | 1 | ||
| PEDAL,BRAKE | 3 | 43001-4004 | 1 | ||
| PIN,SNAP | 4 | 554A0800 | 1 | ||
| BOLT,HEX HEAD,12M/M | 5 | 92001-1035 | 1 | ||
| HOOK | 7 | 27012-4001 | 1 | ||
| WASHER PLAIN 6MM | 8 | 410B0600 | 1 | ||
| ROD,BRAKE | 9 | 43011-4001 | 1 | ||
| SPRING,BRAKE ROD | 10 | 43012-001 | 1 | ||
| PIN COTTER 2.0X15 | 11 | 550D2015 | 1 | ||
| NUT,WING,6M/M | 12 | 92015-4004 | 1 | ||
| WASHER, BRAKE ROD | 13 | 92022-4003 | 1 | ||
| PIN-BRAKE ROD FITTING | 14 | 92043-064 | 1 | ||
| PIN,BRAKE | 15 | 92043-1024 | 1 | ||
| SPRING,BRAKE PEDAL | 16 | 92081-1025 | 1 | ||
| NUT 12MM | 17 | 312B1200 | 1 | ||
| ROD,TORQUE | 18 | 43007-4001 | 1 | ||
| BOOT | 19 | 49006-4001 | 1 | ||
| JOINT,BALL,NTN-SMR112 | 20 | 59266-4001 | 1 | ||
| NUT,LOCK,8MM | 21 | 92015-1124 | 2 | ||
| WASHER CHNG DRUM LEV | 22 | 92022-091 | 1 | ||
| BOLT,HEX HEAD,8X36 | 23 | 92001-1041 | 1 |
