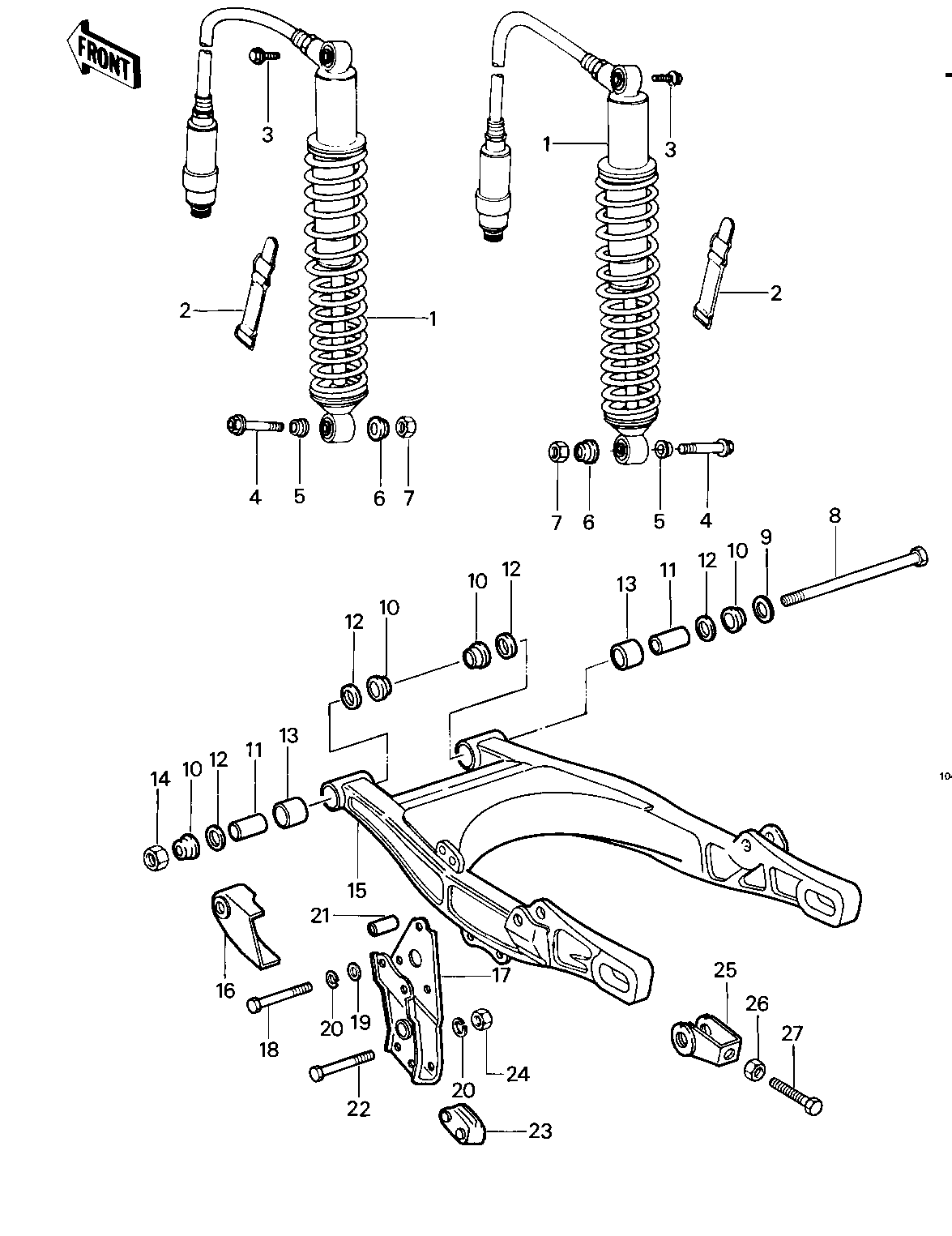

1980 KDX250 - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHOCK ABSBR RR 1 45014-4004 2
BAND,FUEL TANK 2 92072-076 2
BOLT,HEX HEAD,6X10 3 92001-1034 2
BOLT,HEX HEAD,10X48 4 92001-1029 2
COLLAR 5 92027-1029 2
COLLAR 6 92027-1030 2
NUT,LOCK,10MM 7 92019-021 2
SHAFT,SWING ARM 8 33032-4001 1
WASHER PLAIN 14MM 9 411B1400 1
CAP,SWING ARM 10 11012-1099 4
SLEEVE,SWING ARM 11 42036-4002 2
SHIM,SWING ARM 12 92025-1116 4
BUSHING,SWING ARM 13 92028-4001 2
NUT-LOCK,14MM 14 92019-011 1
SWING ARM 15 33001-4001 1
GUIDE,CHAIN 16 12053-1047 1
CHAIN GUIDE 17 55020-4001 1
BOLT-UPSET 18 112G0660 3
WASHER PLAIN 6MM 19 411B0600 3
WASHER SPRING 6MM 20 461F0600 5
COLLAR 21 92027-4003 3
BOLT 6X35 22 110R0635 2
GUIDE,CHAIN,REAR 23 12053-1011 1
NUT 6MM 24 311B0600 2
ADJUSTER,CHAIN 25 33040-4001 2
NUT 8MM 26 318G0800 2
BOLT,CHAIN ADJUSTER 27 92001-1027 2
