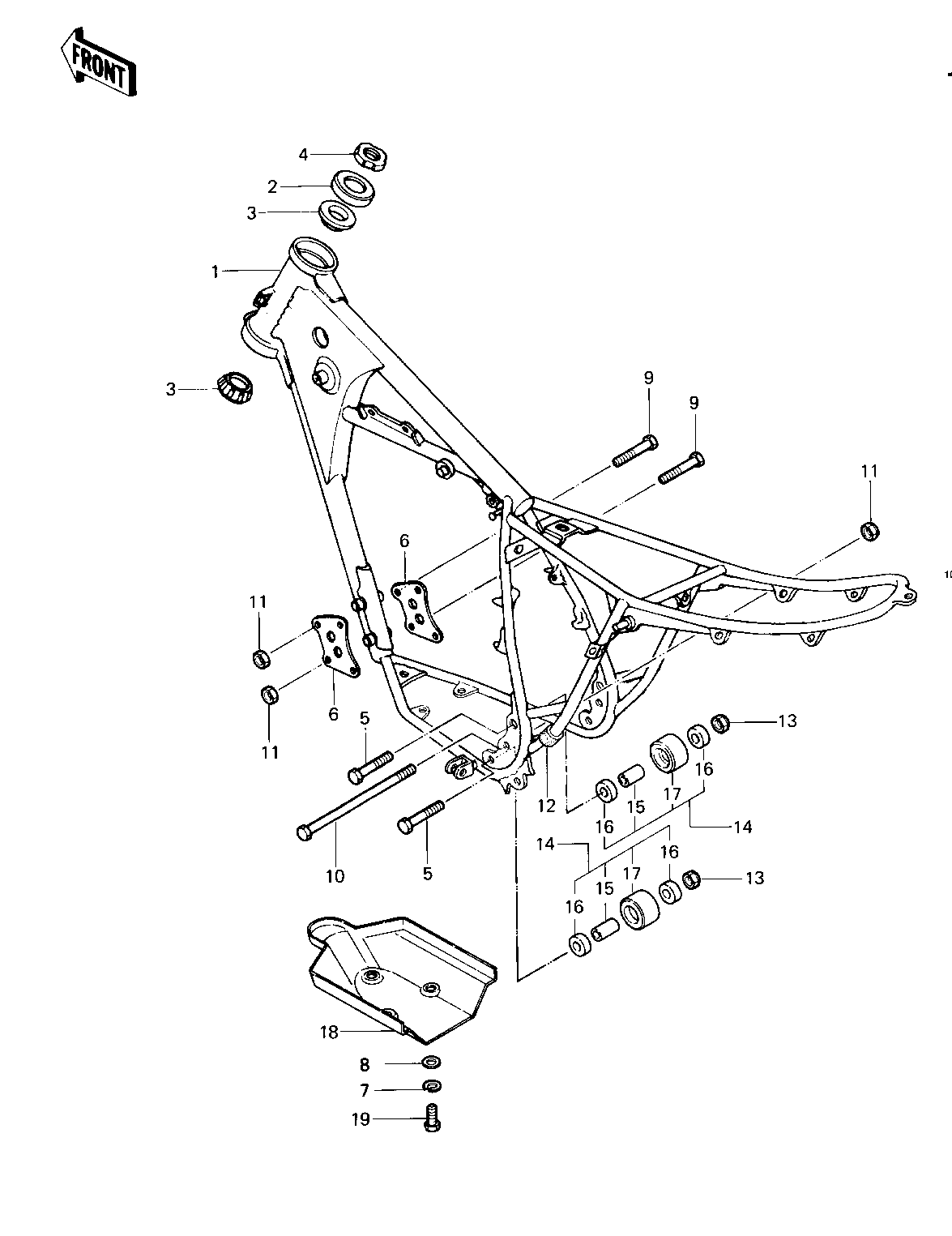

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FRAME | 1 | 32002-4004 | 1 | ||
| CAP,STEERING STEM | 2 | 46098-015 | 1 | ||
| BEARING,STEERING STEM | 3 | 92047-017 | 2 | ||
| NUT | 4 | 92015-1546 | 1 | ||
| BOLT-SMALL-UPSET,8X55 | 5 | 115G0855 | 2 | ||
| BRKT,ENG | 6 | 32029-4009 | 2 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 3 | ||
| WASHER-PLAIN,7MM | 8 | 92022-240 | 3 | ||
| BOLT HEX HEAD,10X66.5 | 9 | 92001-1033 | 4 | ||
| BOLT,HEX HEAD,10X127 | 10 | 92001-4001 | 1 | ||
| NUT,LOCK,10MM | 11 | 92019-021 | 5 | ||
| GUARD, FRAME | 12 | 55020-4004 | 1 | ||
| NUT,LOCK,8MM | 13 | 92015-1124 | 2 | ||
| ROLLER,CHAIN ADJUST | 14 | 92122-4004 | 2 | ||
| SPACER,CHN GDE ROLLER | 15 | 92027-4007 | 2 | ||
| BEARING,BALL | 16 | 92045-1009 | 4 | ||
| ROLLER | 17 | 92122-1014 | 2 | ||
| GUARD,ENG | 18 | 55020-4005 | 1 | ||
| BOLT-UPSET,6X16 | 19 | 112G0616 | 3 |
