Parts Diagrams |

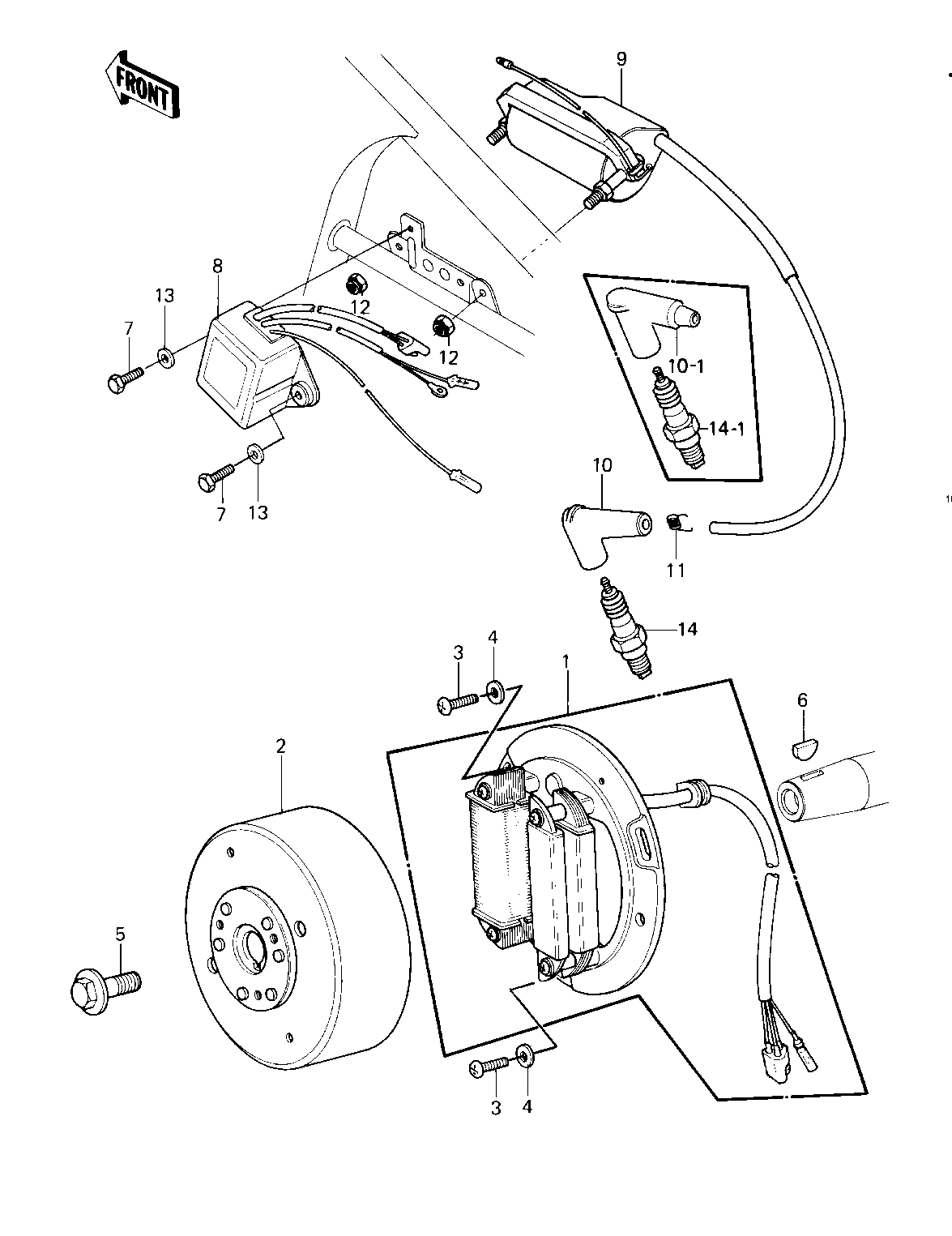

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STATOR ASSY | 1 | 21003-1032 | 1 | ||
| FLYWHEEL,MAGNETO | 2 | 21007-1012 | 1 | ||
| SCREW PAN HEAD 5X20 | 3 | 220B0520A | 3 | ||
| WASHER PLAIN 5MM | 4 | 411B0500 | 3 | ||
| BOLT,10X40 | 5 | 92001-1201 | 1 | ||
| WOODRUFF KEY | 6 | 92038-001 | 1 | ||
| BOLT,6X18 | 7 | 110G0618 | 2 | ||
| IGNITER | 8 | 21119-1009 | 1 | ||
| COIL,IGNITION | 9 | 21121-1024 | 1 | ||
| CAP SPARK PLUG | 10 | 21130-009 | 1 | ||
| CAP ASSY,SPARK PLUG | 10-1 | 21160-1009 | 1 | CANADA | |
| SPRING-SPARK PLUG CAP | 11 | 92101-001 | 1 | ||
| NUT | 12 | 92019-008 | 2 | ||
| WASHER PLAIN | 13 | 92022-024 | 2 | ||
| SPARK PLUGS B8ES | 14 | 92070-037 | 1 | ||
| SPK PLG BR8ES | 15 | 92070-1021 | 1 | CANADA |
| STATOR ASSY | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLYWHEEL,MAGNETO | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X20 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 5MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,10X40 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WOODRUFF KEY | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X18 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| IGNITER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COIL,IGNITION | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP SPARK PLUG | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP ASSY,SPARK PLUG | |
| REF # | 10-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CANADA |
| SPRING-SPARK PLUG CAP | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPARK PLUGS B8ES | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPK PLG BR8ES | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | CANADA |
