Parts Diagrams |

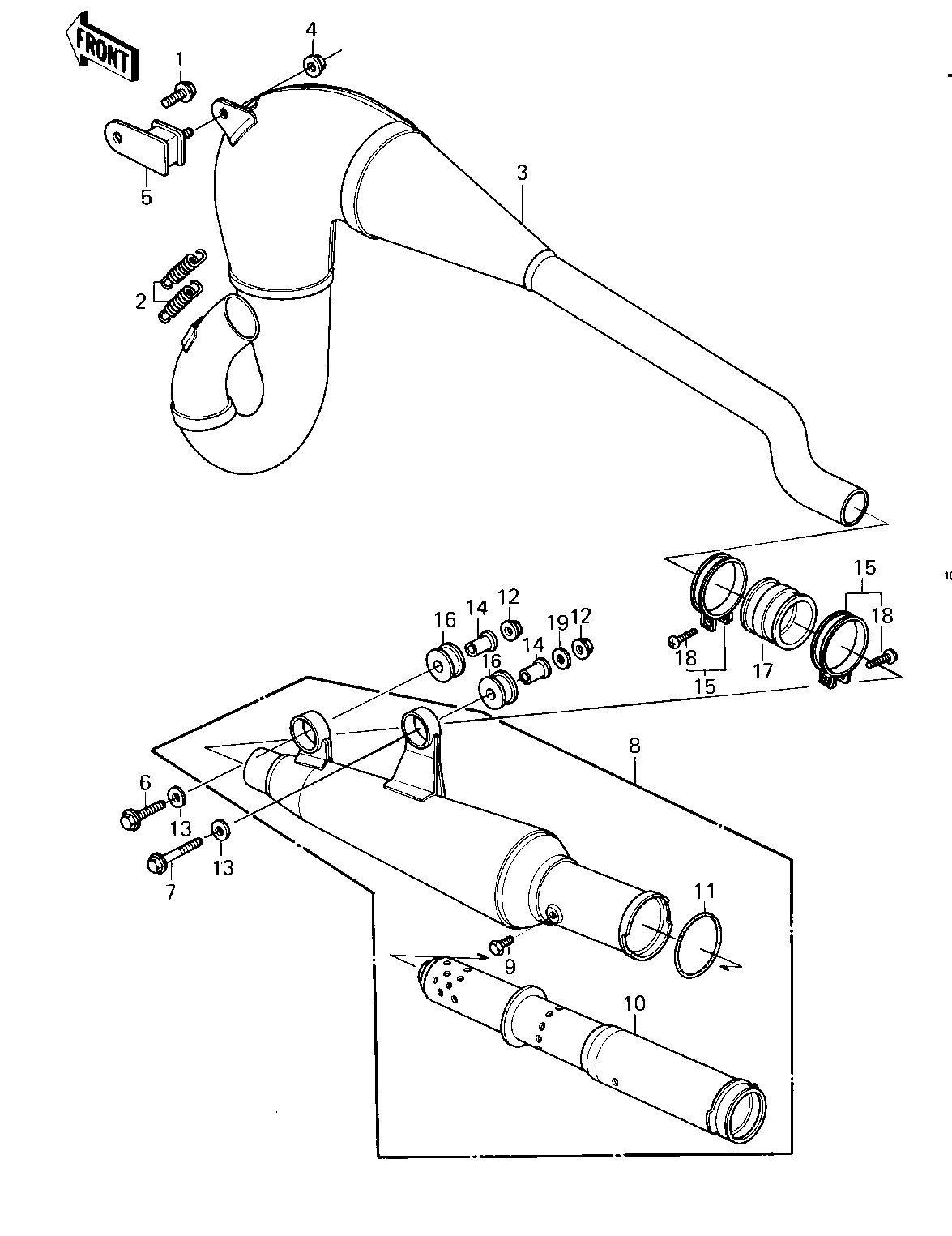

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,FLANGED,8X14 | 1 | 130G0814 | 1 | ||
| SPRING-CONNECTOR | 2 | 18071-003 | 2 | ||
| BODY,MUFFLER | 3 | 49070-1026 | 1 | ||
| NUT,8M/M | 4 | 92015-1014 | 1 | ||
| DAMPER,MUFFLER FITING | 5 | 92075-1060 | 1 | ||
| BOLT,FLANGED,8X35 | 6 | 130G0835 | 1 | ||
| BOLT,FLANGED,8X55 | 7 | 130G0855 | 1 | ||
| MUFFLER ASSY,F.BLACK | 8 | 18001-1109 | 1 | ||
| BOLT,FLANGED,6X8 | 9 | 130B0608 | 1 | ||
| BAFFLE PIPE,MUFFLER | 10 | 49099-1011 | 1 | ||
| "0" RING,50.8MM,MUFLR | 11 | 92055-1077 | 1 | ||
| NUT,LOCK,8MM | 12 | 92015-1124 | 2 | ||
| WASHER,PLAIN | 13 | 92022-298 | 2 | ||
| COLLAR,FUEL TANK FITT | 14 | 92027-1134 | 2 | ||
| CLAMP,MUFFLER | 15 | 92037-177 | 2 | ||
| DAMPER,MUFFLER | 16 | 92075-1196 | 2 | ||
| DUST SHIELD,MUFFLER | 17 | 92093-1014 | 1 | ||
| SCREW-PAN-CROS,5X25 | 18 | 220B0525 | 2 | ||
| WASHER,8X26X2.3 | 19 | 92022-1564 | 1 |
| BOLT,FLANGED,8X14 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-CONNECTOR | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BODY,MUFFLER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,8M/M | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MUFFLER FITING | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X35 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X55 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MUFFLER ASSY,F.BLACK | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X8 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAFFLE PIPE,MUFFLER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,50.8MM,MUFLR | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,8MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,FUEL TANK FITT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP,MUFFLER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,MUFFLER | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DUST SHIELD,MUFFLER | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,5X25 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,8X26X2.3 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
