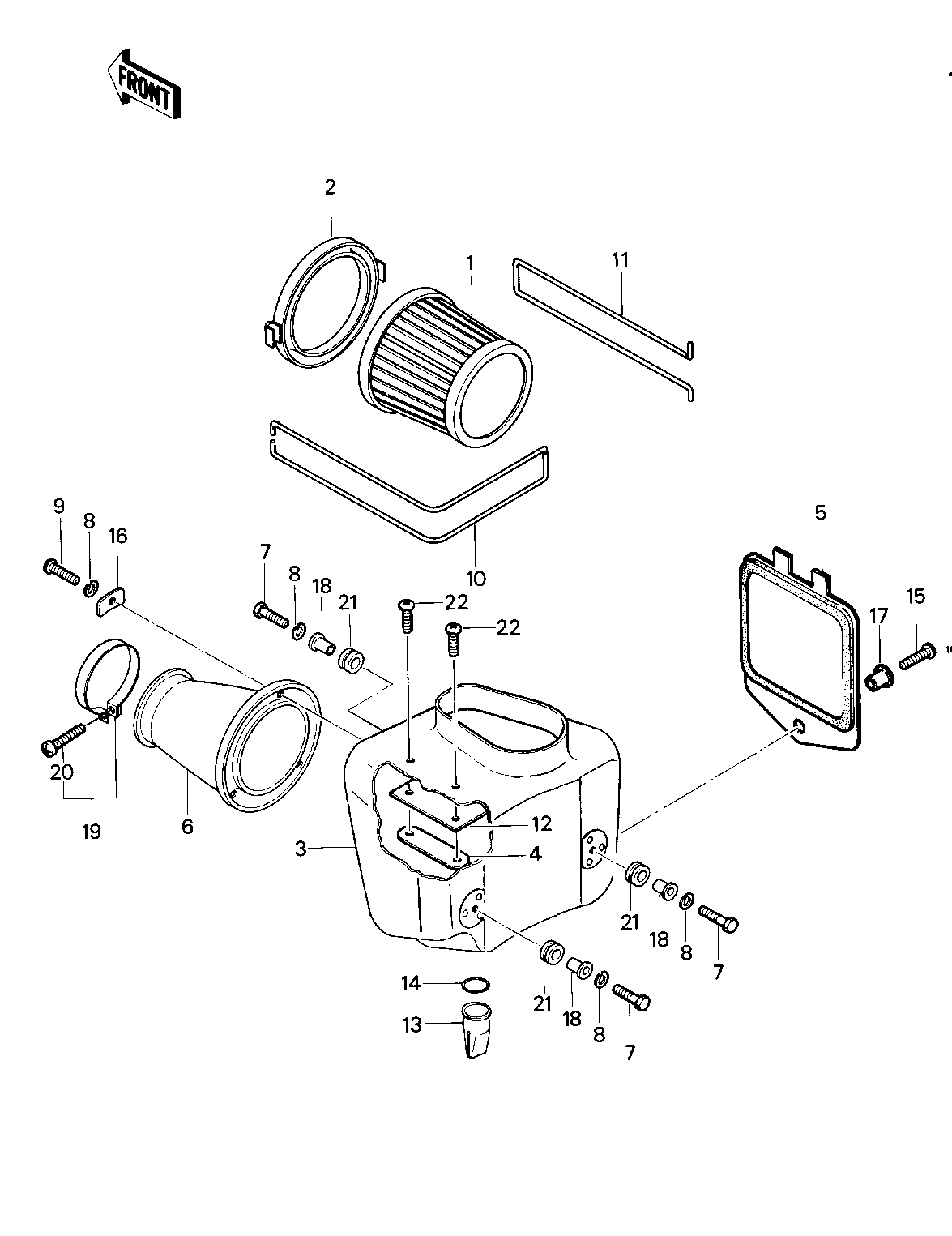

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| AIR FILTER | 1 | 11010-4001 | 1 | ||
| CASE,AIR FILTER | 2 | 11011-4001 | 1 | ||
| CASE | 3 | 11011-4002 | 1 | ||
| PLATE, NUT | 4 | 13169-4007 | 1 | ||
| COVER, AIRBOX | 5 | 14025-4004 | 1 | ||
| DUCT,AIR CLEANER | 6 | 14073-1040 | 1 | ||
| BOLT-UPSET | 7 | 112G0625 | 3 | ||
| WASHER SPRING 6MM | 8 | 461F0600 | 6 | ||
| SCREW PAN HEAD 6X16 | 9 | 220B0616 | 3 | ||
| HOOK | 10 | 27012-4002 | 1 | ||
| HOOK | 11 | 27012-4005 | 1 | ||
| FLAP, AIR BOX SHIELD | 12 | 35019-4002 | 1 | ||
| BOOT | 13 | 49006-1012 | 1 | ||
| "0" RING,20MM | 14 | 670B2020 | 1 | ||
| SCREW,6X20 | 15 | 92009-1289 | 1 | ||
| WASHER,PLAIN | 16 | 92022-1018 | 3 | ||
| COLLAR | 17 | 92027-1045 | 1 | ||
| COLLAR | 18 | 92027-194 | 3 | ||
| CLAMP-AIR CLEANER | 19 | 92037-068 | 1 | ||
| SCREW PAN HEAD 6X35 | 20 | 220B0635 | 1 | ||
| DAMPER RUBBER | 21 | 92075-112 | 3 | ||
| SCREW,6X14 | 22 | 92009-1287 | 2 |
