Parts Diagrams |

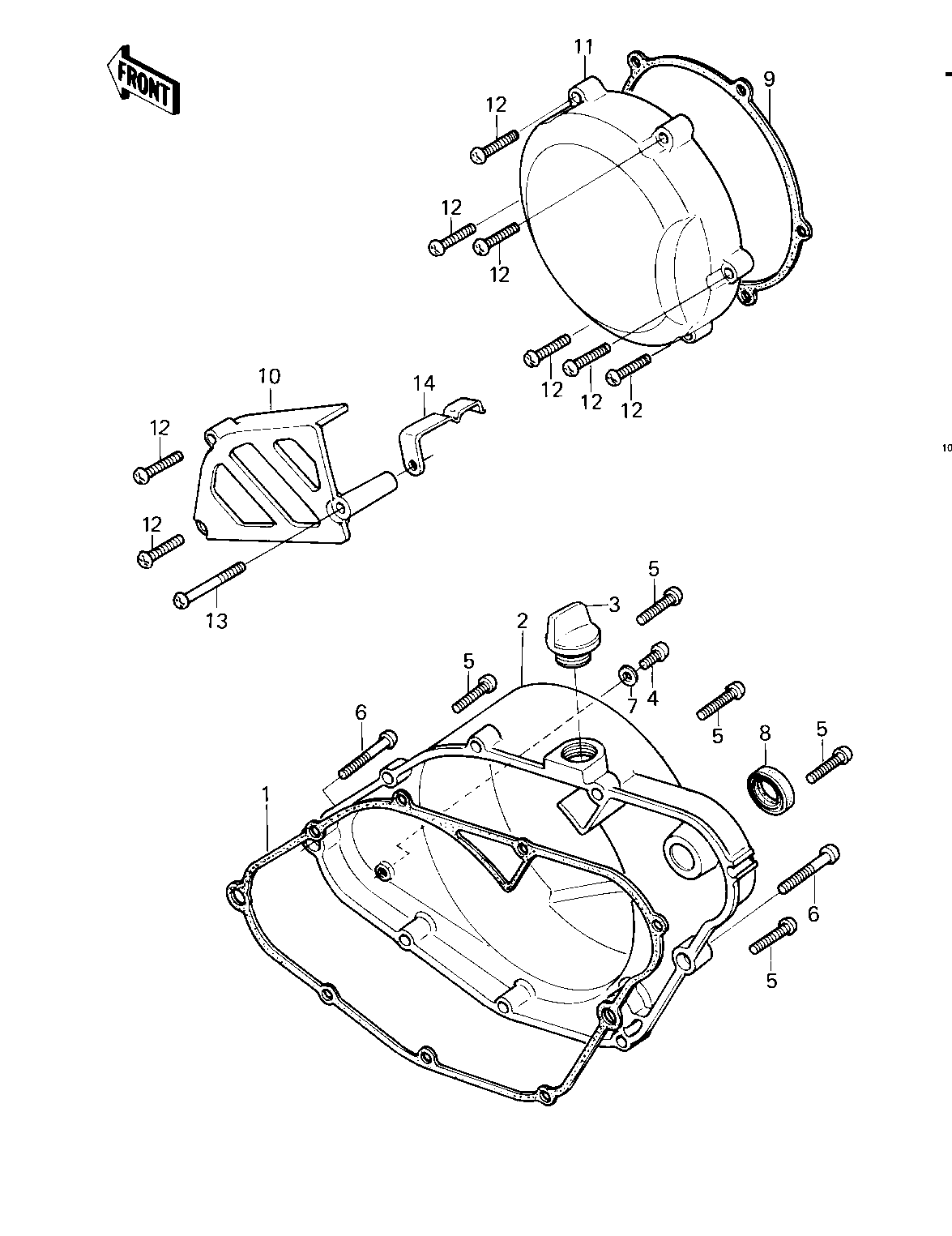

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,R.H ENG COVER | 1 | 11009-1171 | 1 | ||
| COVER,R.H ENG,BLACK | 2 | 14032-1042 | 1 | ||
| FILLER,OIL | 3 | 16115-018 | 1 | ||
| SCREW PAN HEAD 6X8 | 4 | 220B0608 | 1 | ||
| SCREW PAN HEAD 6X25 | 5 | 220B0625 | 6 | ||
| SCREW PAN HEAD 6X35 | 6 | 220B0635 | 2 | ||
| WASHER OIL PUMP BANJO | 7 | 92022-077 | 1 | ||
| OIL SEAL SB16244 | 8 | 92049-002 | 1 | ||
| GASKET,L.H ENG,COVER | 9 | 11009-1172 | 1 | ||
| COVER,CHAIN,F.BLACK | 10 | 14026-1027 | 1 | ||
| COVER,L.H ENG,F.BLACK | 11 | 14031-1049 | 1 | ||
| SCREW PAN HEAD 6X25 | 12 | 220B0625 | 8 | ||
| SCREW PAN HEAD 6X45 | 13 | 220B0645 | 1 | ||
| CLAMP,WIRING HARNESS | 14 | 92037-142 | 1 |
| GASKET,R.H ENG COVER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,R.H ENG,BLACK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FILLER,OIL | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X8 | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X25 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X35 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER OIL PUMP BANJO | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL SB16244 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,L.H ENG,COVER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CHAIN,F.BLACK | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,L.H ENG,F.BLACK | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X25 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X45 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP,WIRING HARNESS | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
