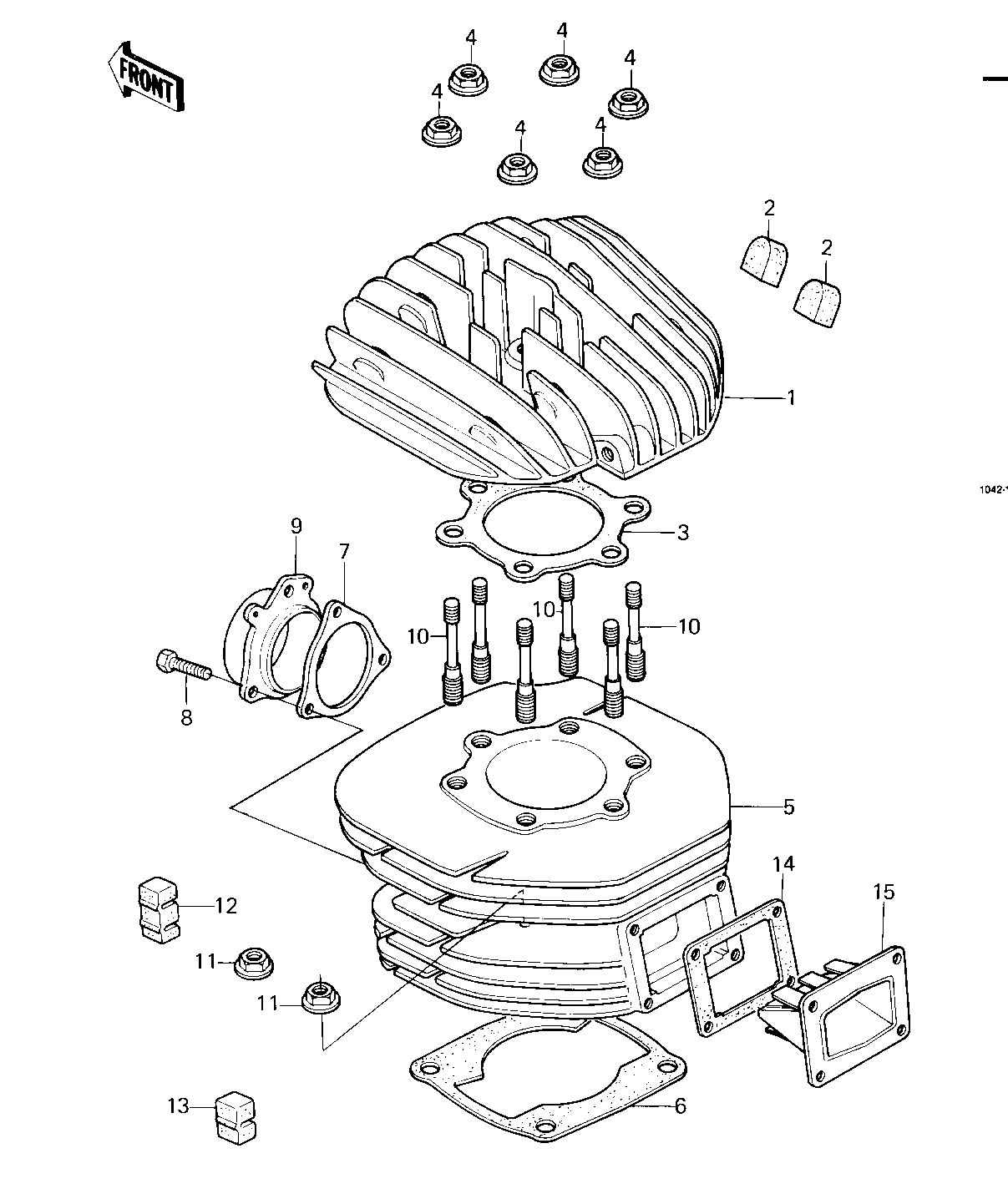

1980 KDX250 - CYLINDER HEAD/CYLINDER/REED VALVE
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER HEAD,F BLACK | 1 | 11001-1031 | 1 | ||
| DAMPER RUBBER | 2 | 92075-1176 | 20 | ||
| GASKET,CYL HEAD | 3 | 11004-1012 | 1 | ||
| NUT,8M/M | 4 | 92015-1014 | 6 | ||
| CYLINDER,ELECTRO-FUSE | 5 | 11005-1066 | 1 | ||
| GASKET,CYLINDER BASE | 6 | 11009-038 | 1 | ||
| GASKET,EXHAUST PIPE | 7 | 11009-1017 | 1 | ||
| BOLT-UPSET | 8 | 112G0618 | 3 | ||
| HOLDER,EXHAUST PIPE | 9 | 18069-1013 | 1 | ||
| STUD,CYLINDER | 10 | 92004-1026 | 6 | ||
| NUT,10MM | 11 | 92015-1415 | 4 | ||
| DAMPER,CYLINDER | 12 | 92075-1160 | 2 | ||
| DAMPER,CYLINDER | 13 | 92075-1161 | 4 | ||
| GASKET,REED VALVE | 14 | 11009-1018 | 1 | ||
| VALVE ASSY,REED | 15 | 12021-1007 | 1 |
