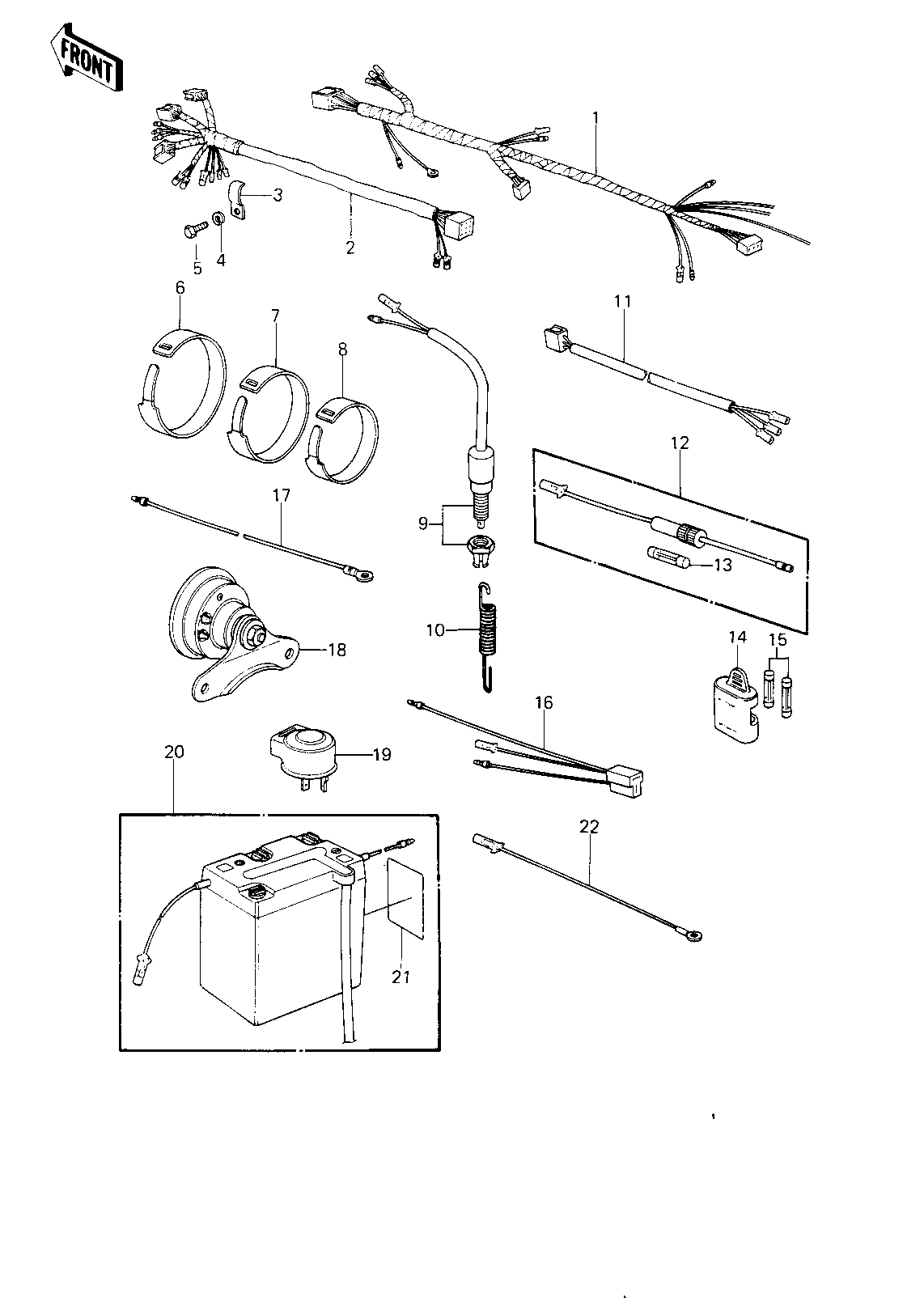

1979 KE250-B3 - CHASSIS ELECTRICAL EQUIPMENT
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| WIRING HARNESS,MAIN | 1 | 26001-141 | |||
| WIRING HARNESS,HEAD | 2 | 26002-061 | |||
| CLAMP-WIRE HARNESS | 3 | 92037-086 | |||
| WASHER SPRING 6MM | 4 | 461F0600 | |||
| BOLT-UPSET,6X12 | 5 | 112G0612 | |||
| BAND,LONG | 6 | 92072-032 | L=218 M/M | ||
| BAND,MIDDLE | 7 | 92072-031 | L=149 M/M | ||
| BAND,SHORT | 8 | 92072-030 | L=123 M/M | ||
| SWITCH,BRAKE LIGHT | 9 | 27010-025 | |||
| SPRING BRAKE LAMP SW | 10 | 27011-006 | |||
| WIRING HARNESS,TAIL L | 11 | 26001-1007 | |||
| FUSE ASSY | 12 | 26004-025 | |||
| FUSE 15A | 13 | 26006-007 | |||
| HOLDER-SPARE FUSE | 14 | 26016-004 | |||
| FUSE 15A | 15 | 26006-007 | |||
| WIRE,RECTIFIER LEAD | 16 | 26011-072 | |||
| WIRE,GROUND | 17 | 26011-082 | |||
| HORN | 18 | 27003-083 | |||
| RELAY-TURN SIGNAL | 19 | 27002-013 | |||
| YUA BAT 6N6-1D-2 | 20 | K26012-034 | 6N6 1D 2 | ||
| LABEL-WARNING,BATTERY | 21 | 56040-1036 | |||
| WIRE,LEAD,BATTERY GRO | 22 | 26011-1009 |
| WIRING HARNESS,MAIN | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,HEAD | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CLAMP-WIRE HARNESS | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BAND,LONG | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | L=218 M/M |
| BAND,MIDDLE | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | L=149 M/M |
| BAND,SHORT | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | L=123 M/M |
| SWITCH,BRAKE LIGHT | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPRING BRAKE LAMP SW | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WIRING HARNESS,TAIL L | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| FUSE ASSY | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| FUSE 15A | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| HOLDER-SPARE FUSE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| FUSE 15A | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WIRE,RECTIFIER LEAD | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WIRE,GROUND | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| HORN | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RELAY-TURN SIGNAL | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| YUA BAT 6N6-1D-2 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 6N6 1D 2 |
| LABEL-WARNING,BATTERY | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WIRE,LEAD,BATTERY GRO | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
