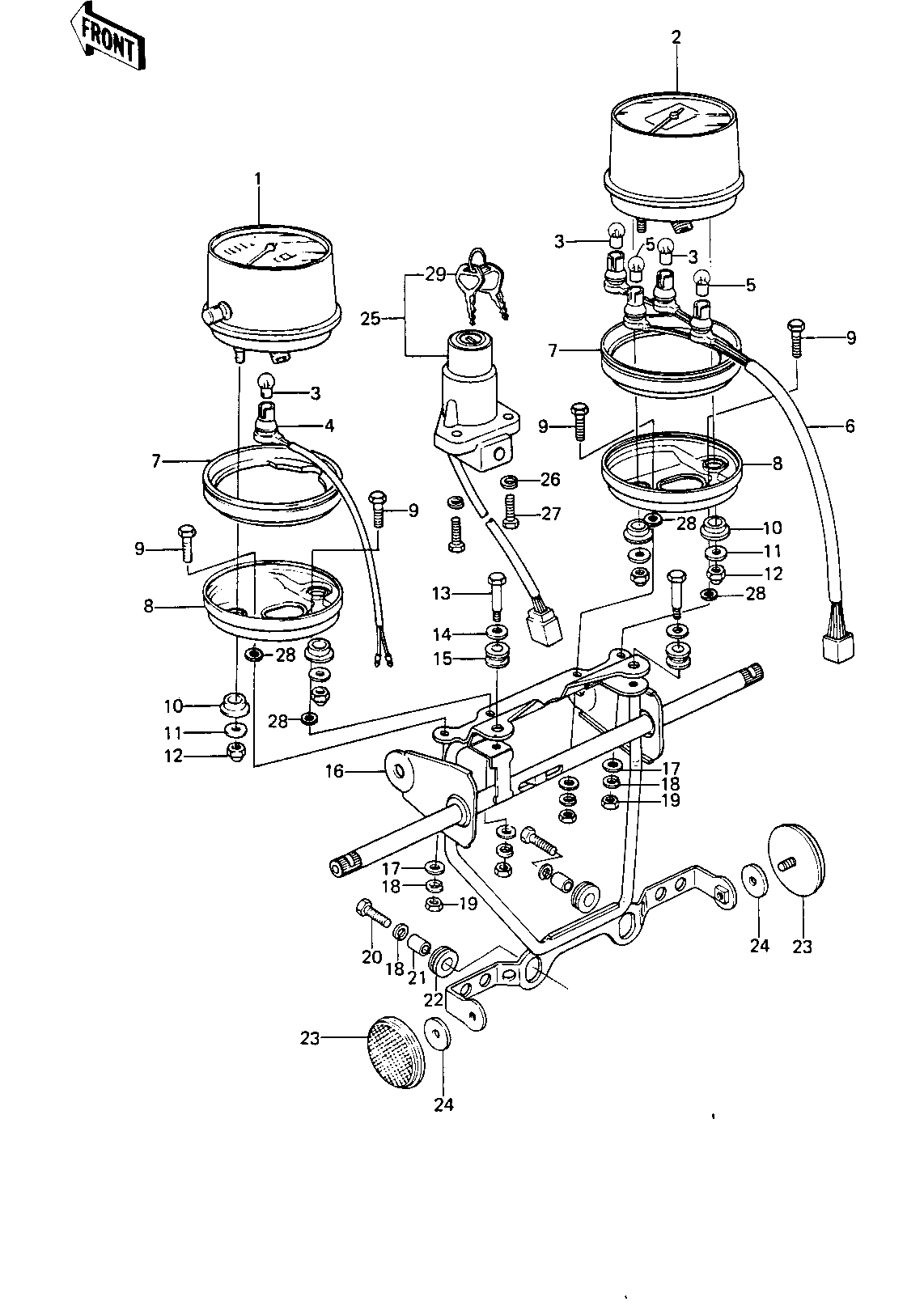

1979 KE250-B3 - METERS/IGNITION SWITCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPEEDOMETER,ASSY,MPH 1 25005-1026 KE250-B1
SPEEDOMETER,ASSY,MPH 1 25005-1026 KE250-B2/B
SPEEDOMETER,ASSY,MPH 1 25006-1062 KE250-B1
SPEEDOMETER,ASSY,KPH (Canada) 1 25005-1027 KE250-B2/B
TACHOMETER 2 25016-029
BULB-6V 3W 3 92069-053
SOCKET ASSY,SPEEDOMET 4 25010-021
BULB 6V 1.5W 5 92069-024
SOCKET ASSY,TACHOMETE 6 25011-053
SHOCK DAMPER,SPEEDMET 7 25019-031
COVER,METER 8 25012-025
BOLT,HEX HEAD,6X14 9 92003-204
DAMPER RUBBER-METER 10 25019-013
WASHER PLAIN 5MM 11 411B0500
NUT,5MM 12 92015-059
BOLT,HEX HEAD,6M/M 13 92001-184
WASHER PLAIN 6MM 14 410B0600
DAMPER RUBB SPEEDMETR 15 92075-024
BRACKET,METER 16 25008-049
WASHER PLAIN 6MM 17 411B0600
WASHER SPRING 6MM 18 461F0600
NUT 6MM 19 311B0600
BOLT-UPSET 20 112G0625
COLLAR 21 92027-241
DAMPER RUBBER,RR FENR 22 92075-209
REFLECTOR,REFLEX,REAR 23 28012-009
DAMPER RUBBER,REFLECT 24 92094-011
SWITCH ASSY,IGNITION 25 27005-1029
SWITCH ASSY,IGNITION 25 27005-1029
WASHER SPRING 6MM 26 461F0600
BOLT-UPSET,6X16 27 112G0616
WASHER,6M/M,METER 28 92022-1039
KEY SET,#A01 29 27008-073-01
KEY SET,#A35 29 27008-073-35
KEY,BLANK 29 27008-1028
KEY,BLANK 29 27008-1029
KEY,BLANK 29 27008-1034
KEY,BLANK 29 27008-1035
