Parts Diagrams |

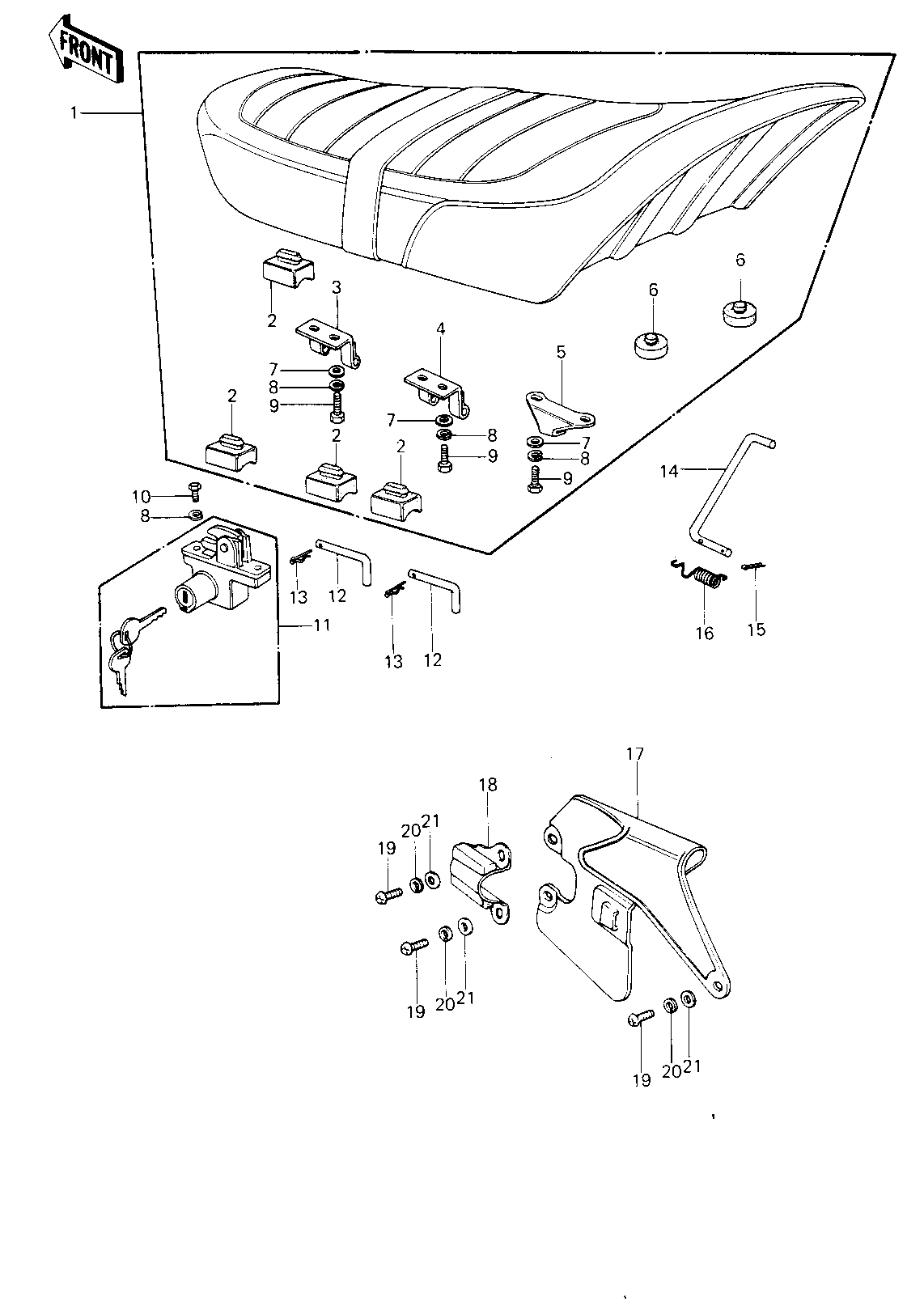

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SEAT ASSY,DUAL | 1 | 53002-1013 | KE250-B1/B2 | ||
| SEAT ASSY,DUAL | 1 | 53002-1013 | KE250-B3 | ||
| DAMPER RUBBER,SEAT | 2 | 92075-216 | |||
| HINGE,BLACK | 3 | 53009-017-10 | |||
| HINGE B | 4 | 53009-018 | |||
| HOOK,SEAT | 5 | 53008-035 | |||
| DAMPER RUBB DUAL SEAT | 6 | 92075-023 | KE250-B1 | ||
| DAMPER,SEAT,11M/M | 6 | 92075-1043 | KE250-B2/B3 | ||
| WASHER PLAIN 6MM | 7 | 411B0600 | |||
| WASHER, SPRING, 6MM | 8 | 461F0600 | |||
| BOLT-UPSET 6X14 | 9 | 112B0614 | |||
| BOLT-UPSET,6X16 | 10 | 112G0616 | |||
| LOCK ASSY,SEAT | 11 | 27016-5024 | |||
| PIN,DUAL SEAT PIVOT | 12 | 92043-1007 | |||
| COTTER PIN | 13 | 92041-003 | |||
| STAND,SEAT | 14 | 53054-009 | |||
| PIN COTTER 2.0X15 | 15 | 550D2015 | |||
| SPRING,SEAT HOOK | 16 | 53055-001 | |||
| CASE-CHAIN | 17 | 36014-067 | |||
| GUARD,CHAIN | 18 | 55020-1003 | |||
| SCREW PAN HEAD 6X16 | 19 | 220B0616 | |||
| WASHER SPRING 6MM | 20 | 461F0600 | |||
| WASHER PLAIN 6MM | 21 | 411B0600 |
| SEAT ASSY,DUAL | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B1/B2 |
| SEAT ASSY,DUAL | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B3 |
| DAMPER RUBBER,SEAT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| HINGE,BLACK | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| HINGE B | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| HOOK,SEAT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBB DUAL SEAT | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B1 |
| DAMPER,SEAT,11M/M | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B2/B3 |
| WASHER PLAIN 6MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER, SPRING, 6MM | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X16 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| LOCK ASSY,SEAT | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PIN,DUAL SEAT PIVOT | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| COTTER PIN | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| STAND,SEAT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PIN COTTER 2.0X15 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPRING,SEAT HOOK | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GUARD,CHAIN | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X16 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
