Parts Diagrams |

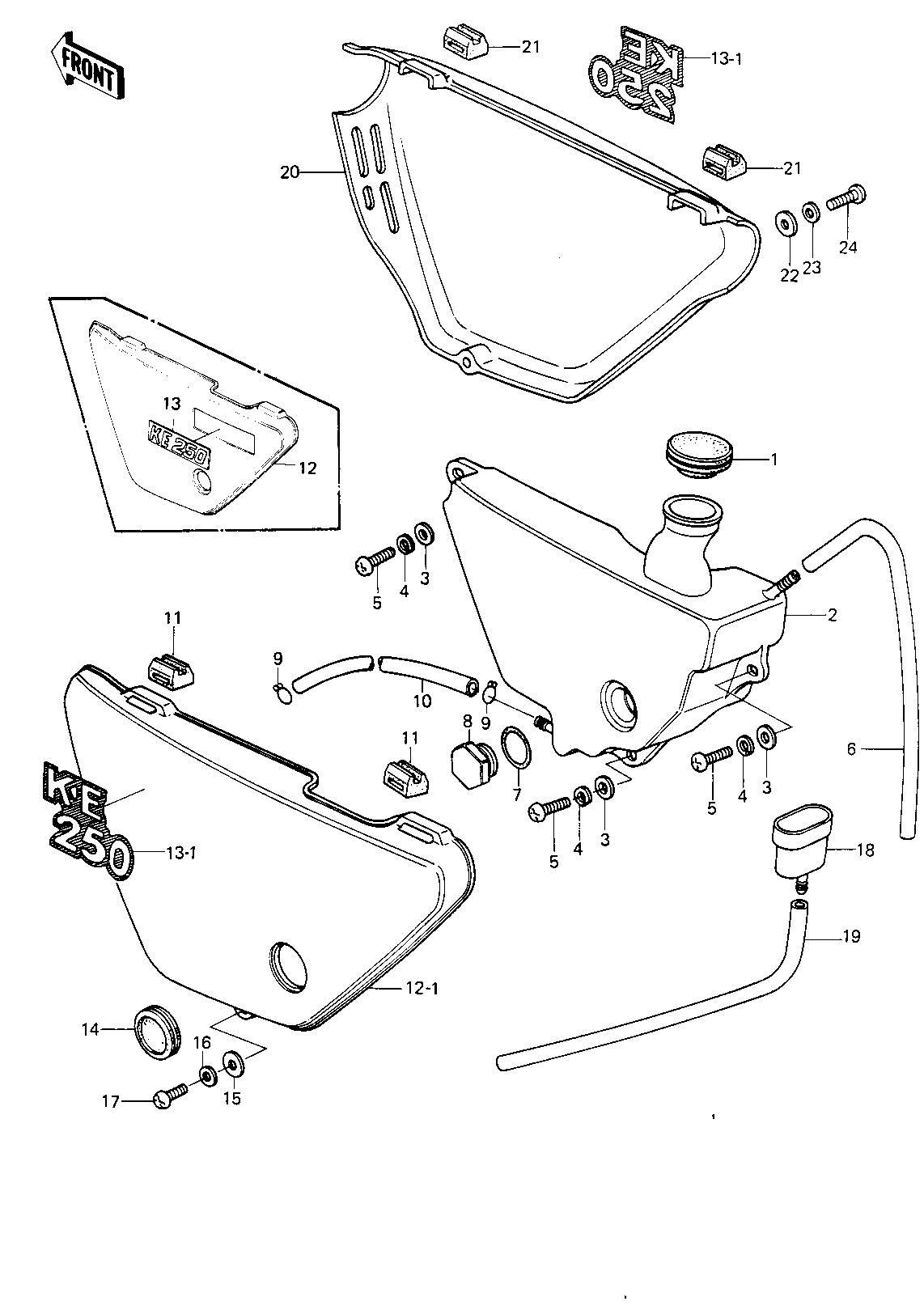

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP-OIL TANK | 1 | 51049-1004 | |||
| TANK,OIL | 2 | 52001-048 | KE250-B1/B2 | ||
| TANK,OIL | 2 | 52001-1004 | KE250-B3 | ||
| WASHER 6.5X20X1.6T | 3 | 92022-125 | |||
| WASHER SPRING 6MM | 4 | 461F0600 | |||
| SCREW PAN HEAD 6X16 | 5 | 220B0616 | |||
| TUBE-VINYL,5X600 | 6 | 700Q05600 | |||
| "O" RING,20MM | 7 | 92055-051 | |||
| GUAGE-OIL LEVEL | 8 | 52015-002 | |||
| CLAMP FUEL PIPE | 9 | 92037-010 | |||
| TUBE,VINYL,9X470 | 10 | 92059-117 | |||
| DAMPER,SIDE COVER | 11 | 92075-313 | |||
| COVER,L.H.SIDE,GREEN | 12 | 36001-056-4U | KE250-B1/B2 | ||
| COVER,L.H,SIDE,F.RED | 12-1 | 36001-1063-6L | KE250-B3 | ||
| EMBLEM,SIDE COVER | 13 | 56018-226 | KE250-B1/B2 | ||
| MARK,SIDE COVER | 13-1 | 56018-1034 | KE250-B3 | ||
| GROMMET,L.H SIDE COV | 14 | 92071-080 | |||
| DAMPER RUBBER,SIDE CV | 15 | 92075-251 | |||
| WASHER PLAIN | 16 | 92022-024 | |||
| SCREW PAN HEAD 6X20 | 17 | 220E0620 | |||
| CONNECTOR PIPE | 18 | 92059-101 | |||
| TUBE-VINYL 7X480 | 19 | 700Q07480 | |||
| COVER,R.H,SIDE,F.RED | 20 | 36001-1064-6L | KE250-B3 | ||
| DAMPER,SIDE COVER | 21 | 92075-313 | KE250-B3 | ||
| DAMPER RUBBER,SIDE CV | 22 | 92075-251 | KE250-B3 | ||
| WASHER PLAIN | 23 | 92022-024 | KE250-B3 | ||
| SCREW PAN HEAD 6X20 | 24 | 220E0620 | KE250-B3 |
