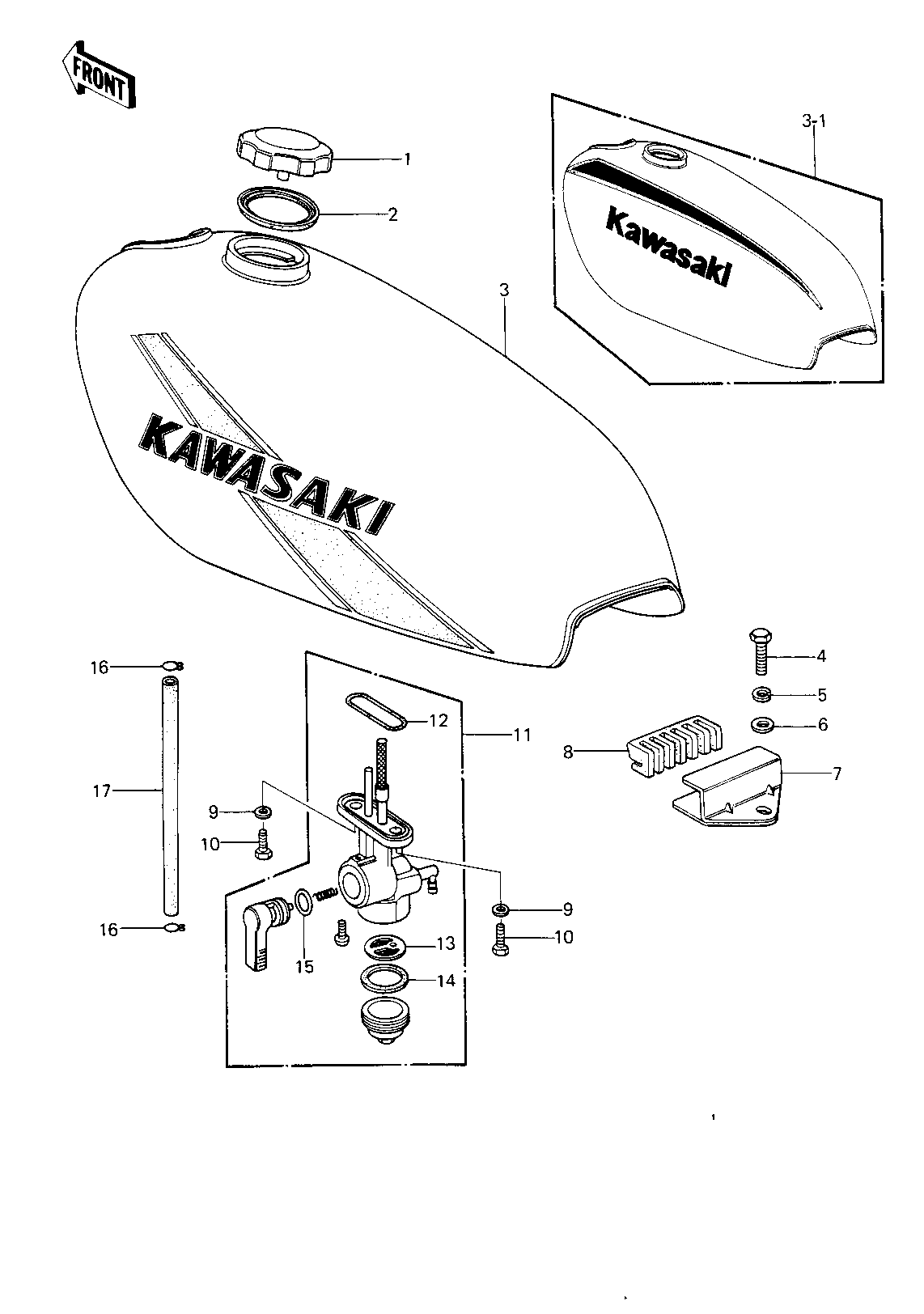

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,FUEL TANK | 1 | 51048-1013 | |||
| GASKET,FUEL TANK CAP | 2 | 51059-011 | |||
| TANK-FUEL,C.E.GREEN | 3 | 51001-113-4U | KE250-B1/B2 | ||
| TANK-FUEL,F.RED | 3-1 | 51001-113-B1 | KE250-B3 | ||
| BOLT,8X20 | 4 | 115G0820 | |||
| WASHER SPRING 8MM | 5 | 461F0800 | |||
| WASHER PLAIN 8MM | 6 | 411B0800 | |||
| BRACKET,FUEL TANK | 7 | 32052-085 | |||
| DAMPER RUBBER,FUEL TK | 8 | 92075-292 | |||
| WASHER-PLAIN | 9 | 92022-183 | |||
| BOLT-HEX HEAD,6X16 | 10 | 92001-114 | |||
| TAP ASSY,FUEL | 11 | 51023-1001 | |||
| "O" RING | 12 | 51039-003 | |||
| STRAINER,FUEL | 13 | 51038-008 | |||
| GASKET FUEL COCK CUP | 14 | 51037-011 | |||
| "0" RING, 10MM | 15 | 670B2010 | |||
| CLAMP FUEL PIPE | 16 | 92037-010 | |||
| PIPE FUEL TANK CONECT | 17 | 51047-001 | L=180 M/M |
