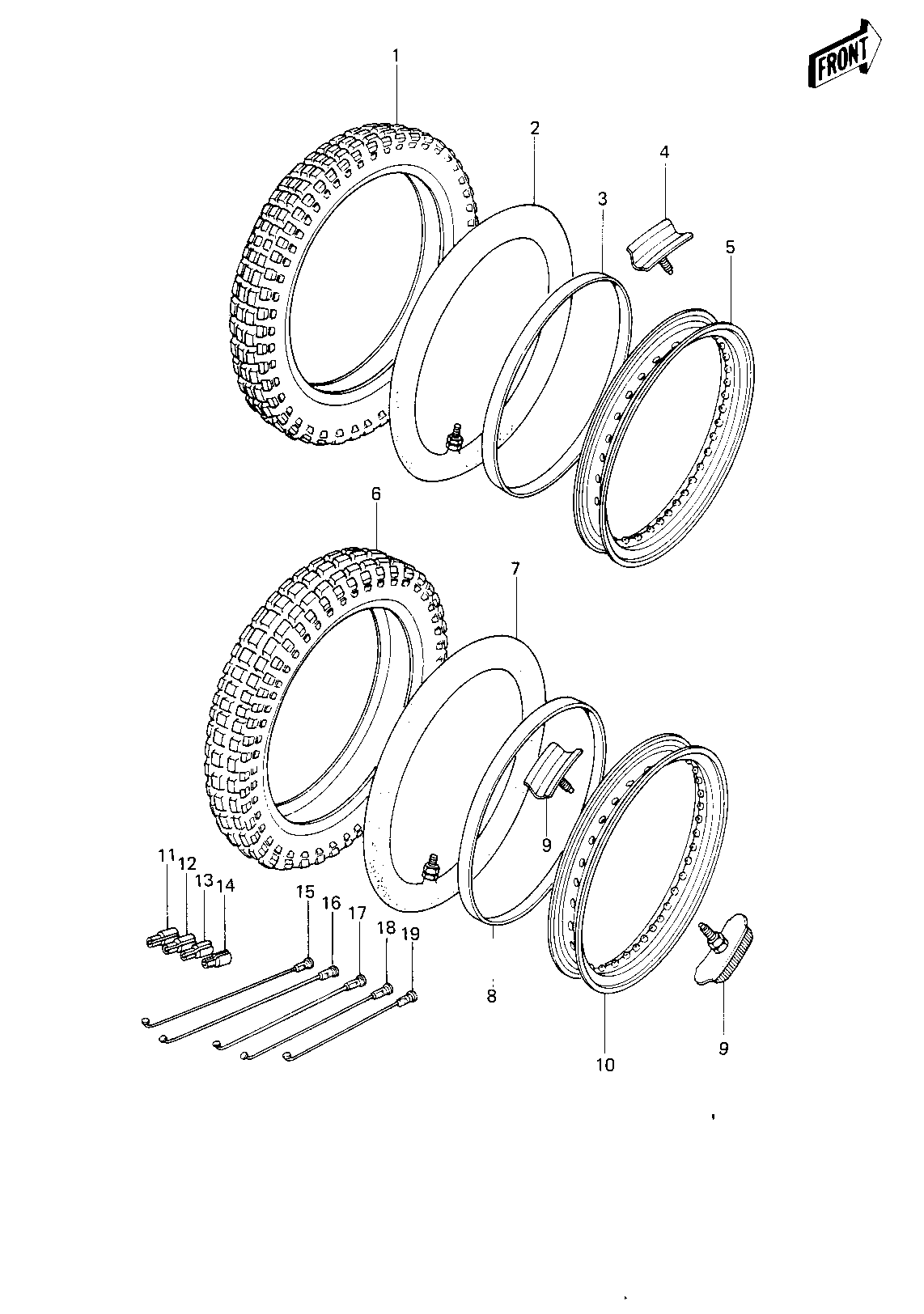

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 300-21 Y959C F | 1 | 41002-1003 | TRAIL SPORT Y-959C | ||
| TUBE,2.75/3.70-21 | 2 | 41022-1021 | |||
| BAND,RIM,3.00-21 | 3 | 41023-1001 | |||
| PROTECTOR-BEAD 1.60A | 4 | 41024-006 | |||
| RIM,1.60X21 | 5 | 41025-089 | |||
| TIRE 400-18 Y959C R | 6 | 41002-1004 | TRAIL SPORT Y-959C | ||
| TUBE 350/375/410-18 | 7 | 41022-031 | |||
| BAND,RIM,4.00/5.10-18 | 8 | 41023-1006 | |||
| PROTECTOR-BEAD,2.15B | 9 | 41024-008 | |||
| RIM,2.15X18 | 10 | 41025-090 | |||
| WEIGHT,BALANCE,10G | 11 | 41075-1007 | FRONT | ||
| WEIGHT,BALANCE,20G | 12 | 41075-1008 | FRONT | ||
| WEIGHT,BALANCE,30G | 13 | 41075-1009 | FRONT | ||
| WEIGHT,BALANCE,5G | 14 | 41075-1010 | FRONT | ||
| SPOKE-ASY,FR INNER LH | 15 | 41027-5004 | 223 M/M X 100 | ||
| SPOKE-ASY,FR OUTER LH | 16 | 41028-5003 | 223 M/M X 84 | ||
| SPOKE-ASY,FR RH | 17 | 41027-5003 | 237 M/M X 90 | ||
| SPOKE-ASY,RR INNER | 18 | 41027-080 | 162 M/M X 108 | ||
| SPOKE-ASY,RR OUTER | 19 | 41028-078 | 161 M/M X 79 |
| TIRE 300-21 Y959C F | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | TRAIL SPORT Y-959C |
| TUBE,2.75/3.70-21 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,3.00-21 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PROTECTOR-BEAD 1.60A | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RIM,1.60X21 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| TIRE 400-18 Y959C R | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | TRAIL SPORT Y-959C |
| TUBE 350/375/410-18 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BAND,RIM,4.00/5.10-18 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PROTECTOR-BEAD,2.15B | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RIM,2.15X18 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WEIGHT,BALANCE,10G | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | FRONT |
| WEIGHT,BALANCE,20G | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | FRONT |
| WEIGHT,BALANCE,30G | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | FRONT |
| WEIGHT,BALANCE,5G | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | FRONT |
| SPOKE-ASY,FR INNER LH | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 223 M/M X 100 |
| SPOKE-ASY,FR OUTER LH | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 223 M/M X 84 |
| SPOKE-ASY,FR RH | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 237 M/M X 90 |
| SPOKE-ASY,RR INNER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 162 M/M X 108 |
| SPOKE-ASY,RR OUTER | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 161 M/M X 79 |
