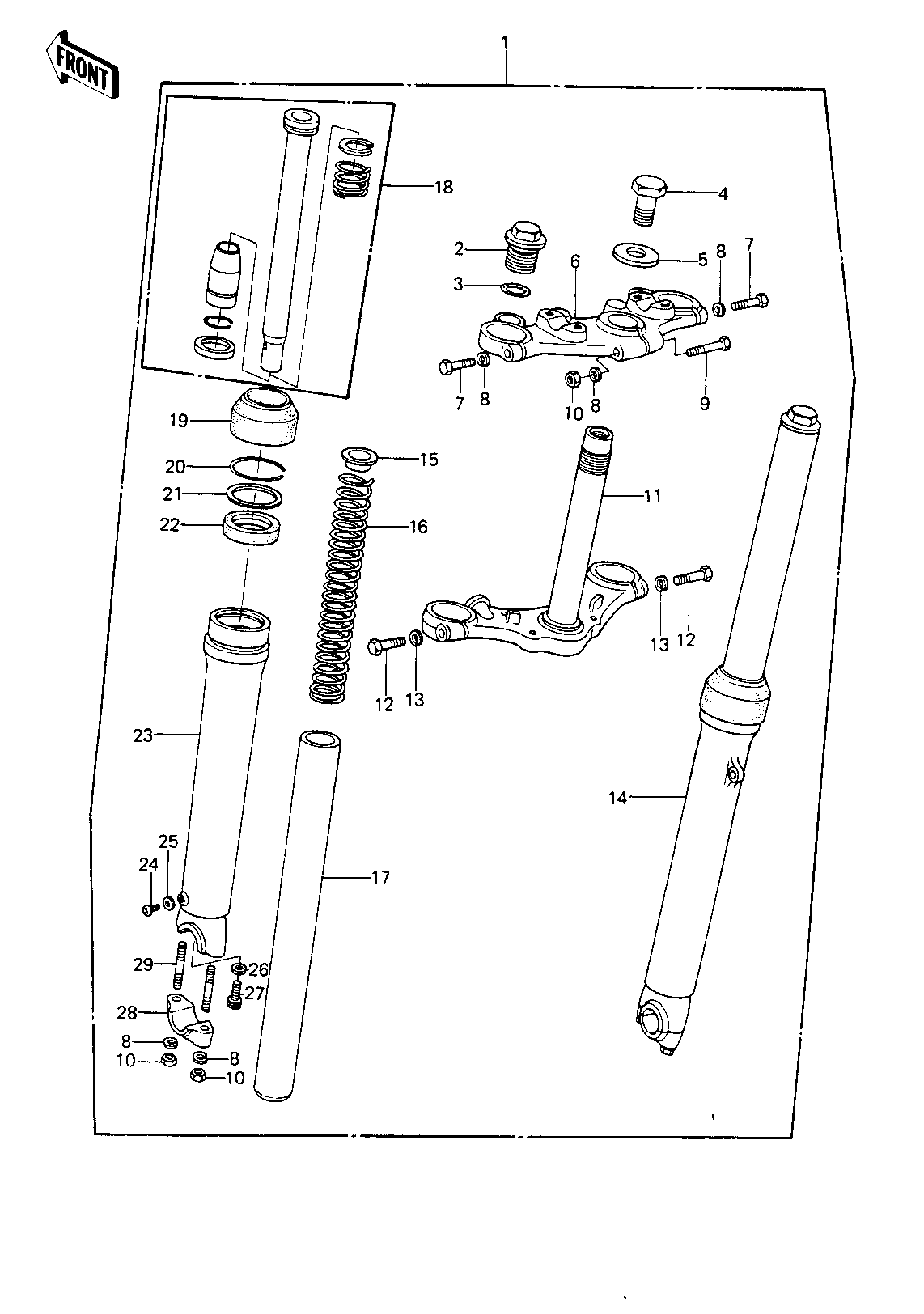

1979 KE250-B3 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1039 F/NO. 000101~007860
FORK-FRONT 1 44001-1039 F/NO. 007861~
FORK-FRONT 1 44001-1039 KE250-B3
BOLT,FORK TOP 2 44062-010
"O" RING,FORK TOP 3 92055-1012
BOLT STRNG STEM HEAD 4 44041-007
WASHER STRNG STEM HD 5 44043-016
HEAD,STEERING STEM 6 44039-080
BOLT-STEERING STEM HD 7 44041-044
WASHER SPRING 8MM 8 461F0800
BOLT-STEERING STEM HD 9 44041-042
NUT,LOCK,8MM 10 92015-1124
STEM,STEERING 11 44037-112
BOLT-HEX HEAD,12X36 12 92003-064
WASHER SPRING 12MM 13 461F1200
TUBE,RH,FORK OUTER 14 44006-1007
GUIDE,FORK SPRING 15 44028-033
SPRING,FORK,INNER 16 44026-1007
TUBE,FORK INNER 17 44013-1006 USE FOR 44001-204
TUBE,FORK INNER 17 44013-1013 USE FOR 44001-1057/1039
CYLINDER-FORK 18 44022-1005 USE FOR 44001-204
CYLINDER-FORK 18 44022-1013 USE FOR 44001-1057/1039
DUST SHIELD,FORK 19 44010-036
CIRCLIP-OIL SEAL FIT 20 44044-012
WASHER-OIL SEAL FIT 21 44043-044
OIL SEAL 22 44009-016
TUBE,LH,FORK OUTER 23 44005-1007
SCREW PAN HEAD 4X8 24 220B0408
GASKET FORK DRAIN PLG 25 44045-002
GASKET,FORK CYLINDER 26 44045-057
BOLT-FORK CYLINDER 27 44041-040
HOLDER,FRONT AXLE 28 44063-011
STUD 8X30 29 172G0830
