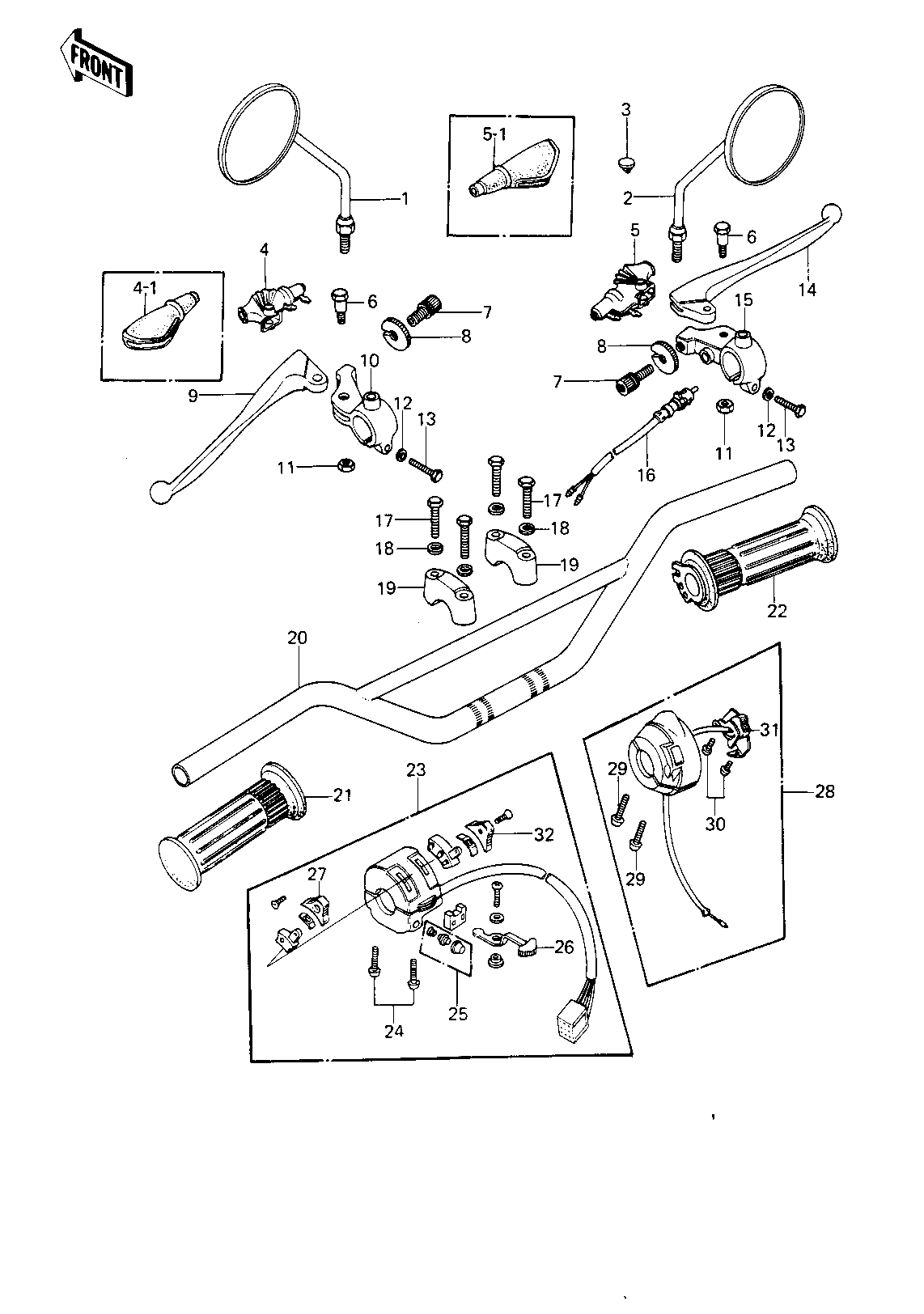

1979 KE250-B3 - HANDLEBAR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
REAR VIEW MIRROR,L.H 1 56003-009
REAR VIEW MIRROR,R.H 2 56002-020
CAP-RR VIEW MIRROR 3 92102-009
BOOTS,LEVER HOLDER 4 49006-1017 KE250-B1/B2
BOOTS,LEVER HOLDER 4-1 49006-1017 KE250-B3
BOOTS,LEVER HOLDER 5 49006-1017 KE250-B1/B2
BOOTS,LEVER HOLDER 5-1 49006-1017 KE250-B3
BOLT,HEX HEAD,5X22 6 92007-046
SCREW CABLE ADJUST 7 46055-003
NUT-LOCK 8 46056-005
LEVER-CLUTCH 9 46092-015
HOLDER-CLUTCH LEV,BLK 10 46094-011-21
NUT-LOCK,5MM 11 92019-014
WASHER-PLAIN,6MM 12 411D0600
BOLT HEX HEAD 6X25 13 110N0625
LEVER FRONT BRAKE 14 46058-004
HOLDER-FR BRK LEV,BLK 15 46060-009-21
SWITCH-FR. BRAKE LAMP 16 27021-004
BOLT 8X38 17 92001-1405
WASHER SPRING 8MM 18 461F0800
HOLDER,HANDLEBAR 19 46012-014
HANDLEBAR,BRIDGE 20 46003-1004
RUBBER,L.H GRIP 21 46075-029
GRIP ASSY,THROTTLE 22 46019-040
CASE ASSY,L.H 23 46091-061 KE250-B1/B2
CASE ASSY,L.H. 23 46091-1021 KE250-B3
CASE ASSY,L.H. 23 46091-1021 USE FOR CANADIAN MARKET
SCREW PAN HEAD 5X22 24 220B0522
SWITCH ASSY,HORN BUTN 25 27010-1009
KNOB,SGNL LIGHT SWICH 26 92077-1005
KNOB,LIGHTING SWITCH 27 92077-1004
CASE ASSY,R.H. 28 46091-1022
SCREW PAN HEAD 5X22 29 220B0522
SCREW-PAN-HEAD 3X6 30 220B0306
SWITCH ASSY,ENG STOP 31 46027-014
KNOB,LIGHTING SWITCH 32 92077-1004 NOT REQUIRED FOR 46091-1021
