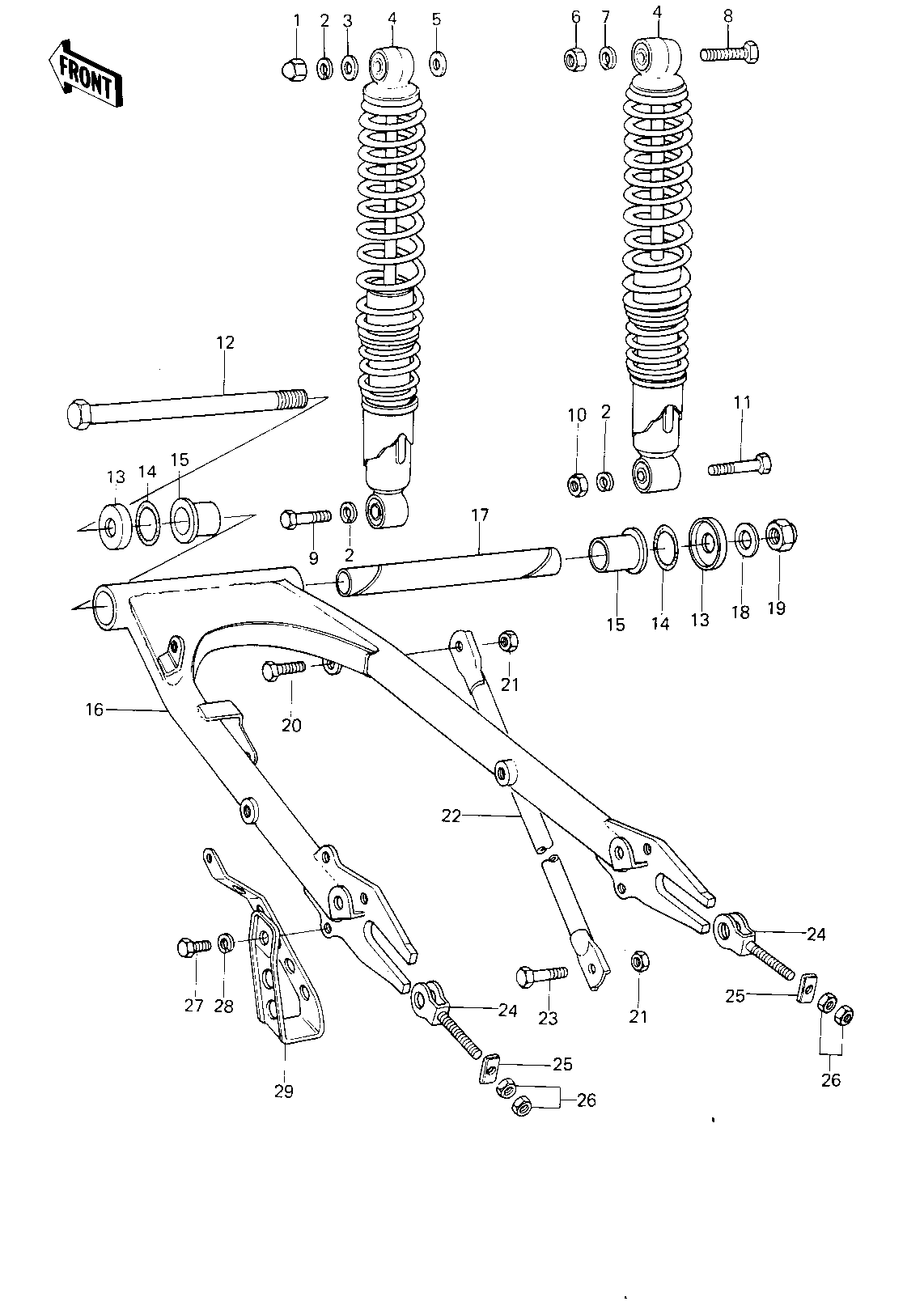

1979 KE250-B3 - SWING ARM/SHOCK ABSORBERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT SHOCK ABSORBER 1 92020-003
WASHER SPRING 10MM 2 461F1000
WASHER PLAIN 10MM 3 411B1000
SHOCK ABSBR RR 4 45014-122 KE250-B1/B2
SHOCK ABSBR RR 4 45014-1016 KE250-B3
WASHER PLAIN 12MM 5 411B1200
NUT-HEX-FINE,12MM 6 315B1200
WASHER SPRING 12MM 7 461F1200
BOLT HEX HEAD 12X40 8 113B1240
BOLT HEX HEAD 10X35 9 113N1035
NUT,10MM 10 314B1000
BOLT HEX HEAD 10X45 11 113N1045
SHAFT-SWING ARM PIVOT 12 33032-035
CAP-SWINGING ARM 13 33035-005
"0" RING,30MM 14 671B2530
BUSHING-SWING ARM 15 33033-009
SWING ARM 16 33001-088
SLEEVE,SWING ARM 17 42036-1003
WASHER PLAIN 12MM 18 410B1200
NUT-LOCK,12MM 19 92019-009
BOLT,HEX HEAD,10X22 20 113G1022
NUT,10MM 21 92019-016
TORQUE LINK,REAR BRAK 22 43007-048
BOLT,10X28 23 113G1028
ADJUSTER,CHAIN 24 33040-1002
PLATE,CHAIN ADJUSTER 25 33041-005
NUT,8MM 26 311B0800
BOLT, HEX HEAD 8 X 14 27 110B08-14
WASHER SPRING 8MM 28 461F0800
GUARD,CHAIN 29 55020-021
