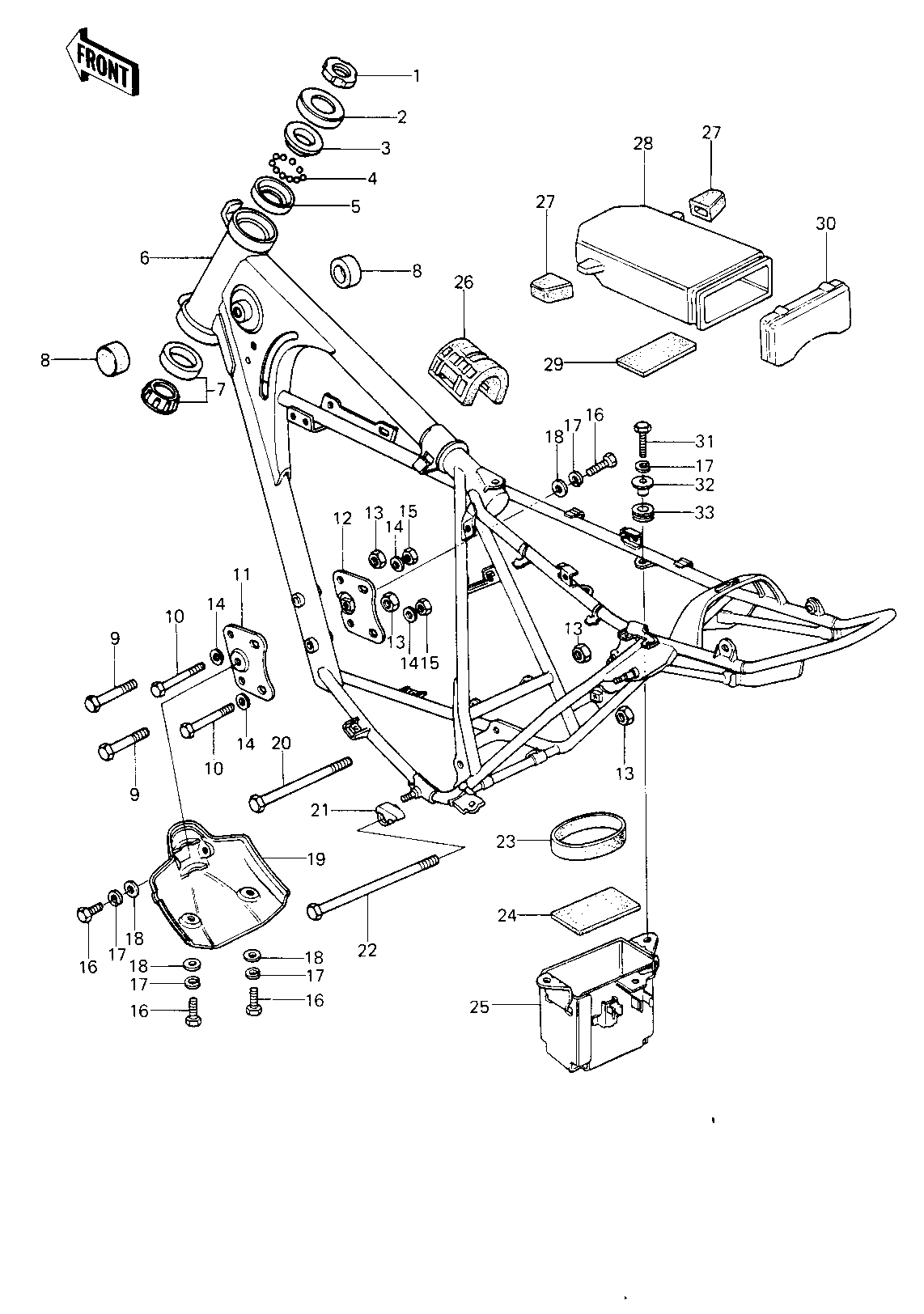

1979 KE250-B3 - FRAME/FRAME FITTINGS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT,STEERING STEM 1 92090-022
CAP,STEERING STEM 2 46098-018
CONE,STEERING STEM 3 92047-020
BALL STEEL 1/4' 4 600A0800
RACE,STEERING STEM 5 92048-010
FRAME 6 32002-156 KE250-B1/B2
FRAME 6 32002-1041 KE250-B3
BEARING,STEERING STEM 7 92047-017
DAMPER RUBBER-FL TANK 8 92075-101
BOLT,HEX HEAD,10X65 9 113B1065
BOLT FLANGED,8X70 10 92001-1583
PLATE,ENGINE MUNT,L.H 11 32030-062
PLATE,ENGINE MUNT,R.H 12 32030-072
NUT,LOCK,10MM 13 92019-021
WASHER PLAIN 8MM 14 411B0800
NUT,LOCK,8MM 15 92017-013
BOLT-UPSET,6X16 16 112G0616
WASHER SPRING 6MM 17 461F0600
WASHER-PLAIN,7MM 18 92022-240
GUARD,ENGINE 19 55011-025
BOLT,HEX HEAD,10X130 20 92001-1249
GUARD 21 55020-1009
BOLT,HEX HEAD,10X150 22 92001-1251
MAT-BATTERY SIDE 23 32103-023
MAT,BATTERY 24 32103-027
CASE,BATTERY 25 32097-042
DAMPER RUBBER 26 92075-284
DAMPER,RUBBER 27 92075-316
CASE,TOOL 28 32098-027
DAMPER,RUBBER 29 92075-1015
COVER,TOOL CASE 30 32104-007
BOLT-UPSET,6X20 31 112G0620
COLLAR 32 92027-153
DAMPER RUBBER 33 92075-051
