Parts Diagrams |

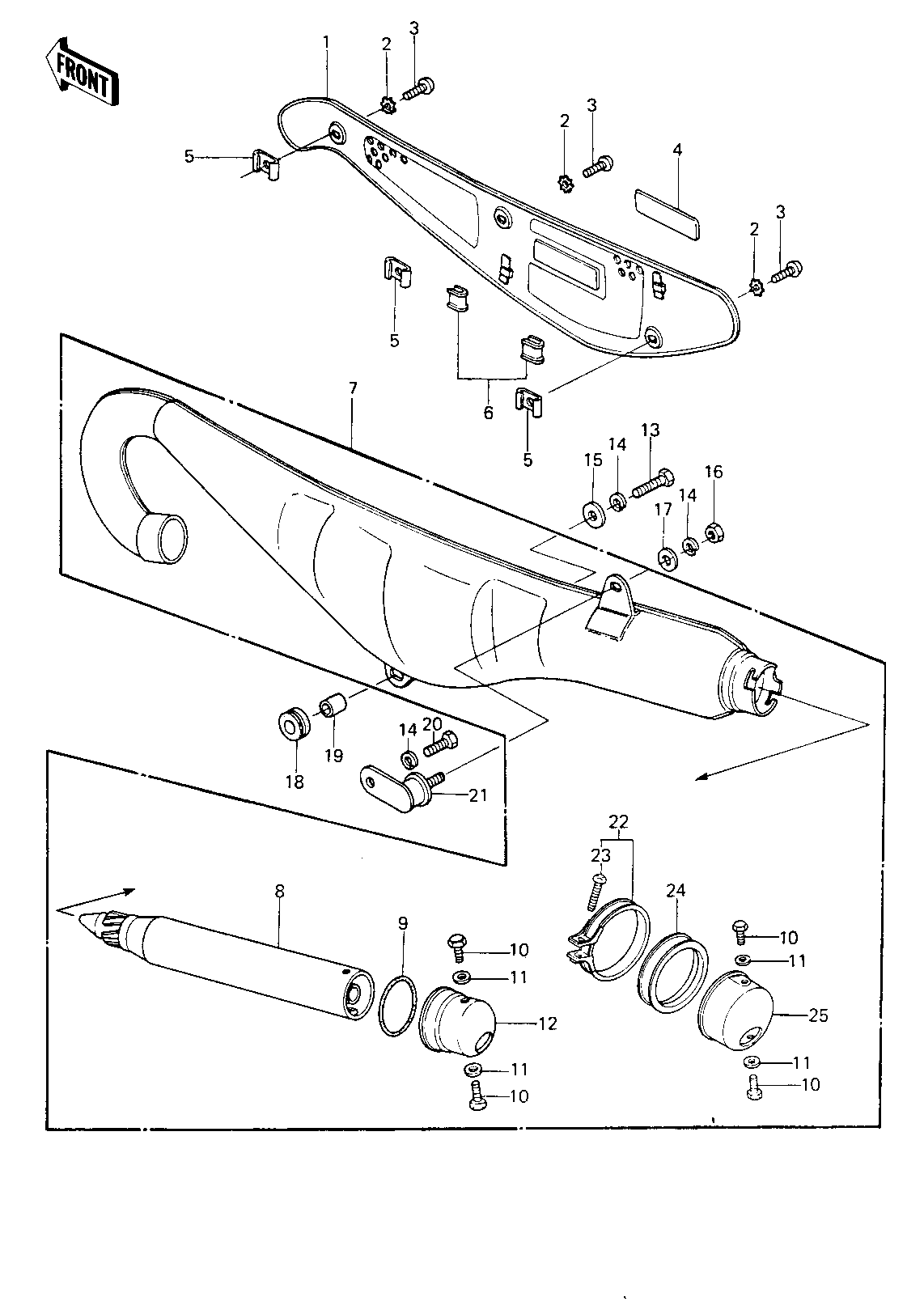

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,MUFFLER | 1 | 18064-020-21 | |||
| WASHER LOCK 6MM | 2 | 464H0600 | |||
| SCREW,TRUSS HEAD 6X12 | 3 | 92011-038 | |||
| EMBLEM,SIDE COVER | 4 | 56018-226 | |||
| INSULATOR,HEAT | 5 | 18065-010 | |||
| INSULATOR | 6 | 18065-007 | |||
| MUFFLER ASSY | 7 | 18001-1029-21 | KE250-B1 | ||
| MUFFLER ASSY | 7 | 18001-1029-21 | KE250-B2 | ||
| BAFFLE TUBE | 8 | 18033-109 | |||
| "0" RING,MUFFLER | 9 | 92055-114 | USE FOR 18001-210-21 | ||
| BOLT-UPSET,6X12 | 10 | 112G0612 | |||
| WASHER OIL PUMP BANJO | 11 | 92022-077 | |||
| TAIL PIECE,MUFFLER | 12 | 18048-019 | USE FOR 18001-210-21 | ||
| BOLT-SMALL-UPSET 8X25 | 13 | 115G0825 | |||
| WASHER SPRING 8MM | 14 | 461F0800 | |||
| WASHER,8X26X2.3 | 15 | 92022-1564 | |||
| NUT,8MM | 16 | 311B0800 | |||
| WASHER,8.5X20X1.6 | 17 | 92022-1561 | |||
| DAMPER RUBBER-MUFFLER | 18 | 18063-005 | |||
| COLLAR | 19 | 92027-102 | |||
| BOLT-SMALL-UPSET,8X16 | 20 | 115G0816 | |||
| BRACKET,MUFFLER | 21 | 18061-060 | |||
| CLAMP | 22 | 92037-171 | USE FOR 18001-1029-21 | ||
| SCREW-PAN-CROS | 23 | 220B0535 | USE FOR 18001-1029-21 | ||
| DUST SHIELD,MUFFLER | 24 | 92093-1008 | USE FOR 18001-1029-21 | ||
| BAFFLE PIPE,MUFFLER | 25 | 49099-1004 | USE FOR 18001-1029-21 |
| COVER,MUFFLER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER LOCK 6MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW,TRUSS HEAD 6X12 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| EMBLEM,SIDE COVER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| INSULATOR,HEAT | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| INSULATOR | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| MUFFLER ASSY | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B1 |
| MUFFLER ASSY | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B2 |
| BAFFLE TUBE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| "0" RING,MUFFLER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 18001-210-21 |
| BOLT-UPSET,6X12 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER OIL PUMP BANJO | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| TAIL PIECE,MUFFLER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 18001-210-21 |
| BOLT-SMALL-UPSET 8X25 | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER,8X26X2.3 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT,8MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X20X1.6 | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER-MUFFLER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-UPSET,8X16 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BRACKET,MUFFLER | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 18001-1029-21 |
| SCREW-PAN-CROS | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 18001-1029-21 |
| DUST SHIELD,MUFFLER | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 18001-1029-21 |
| BAFFLE PIPE,MUFFLER | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | USE FOR 18001-1029-21 |
