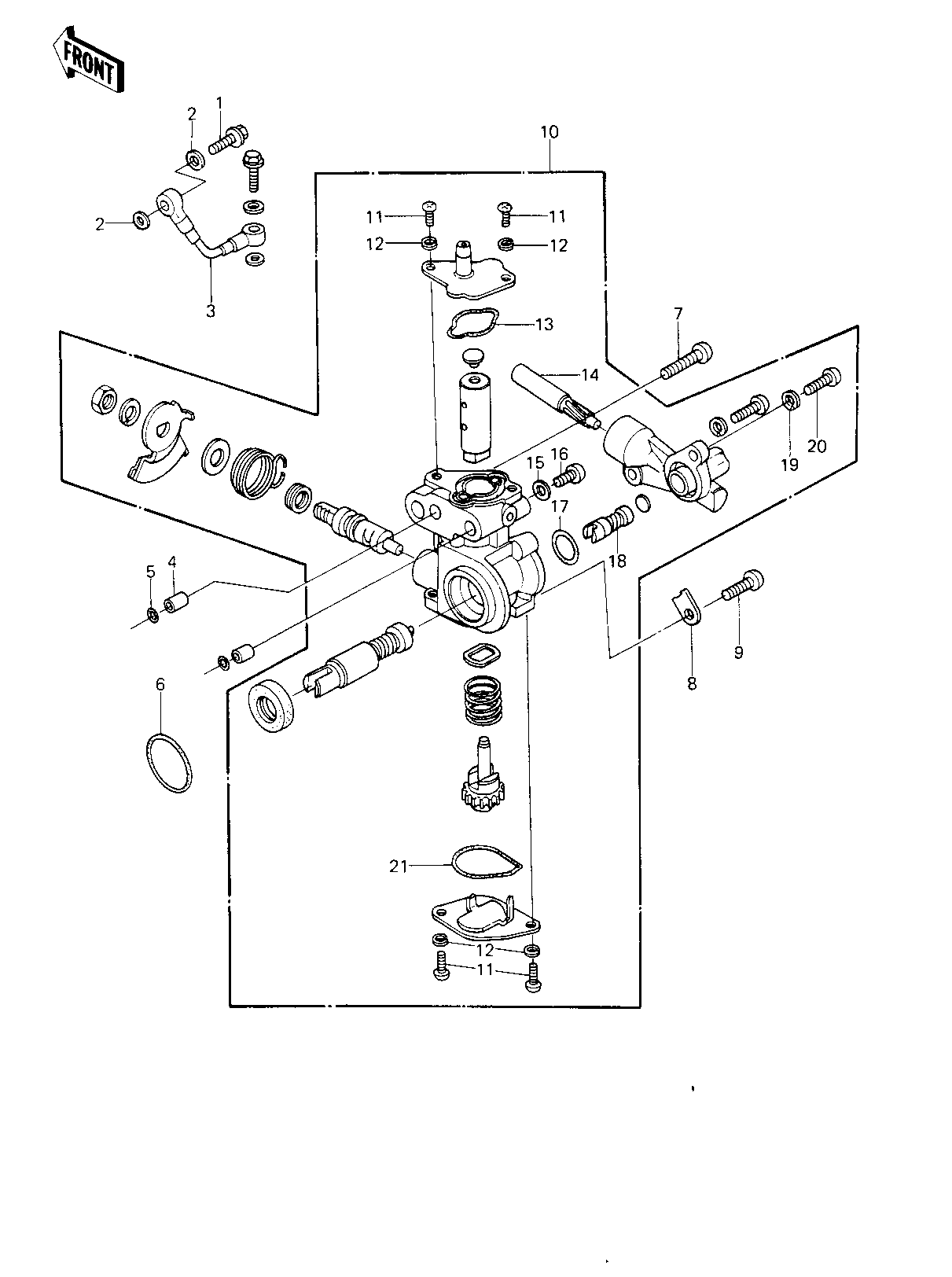

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-BANJO,6MM | 1 | 92060-013 | |||
| WASHER OIL PUMP BANJO | 2 | 92022-077 | |||
| PIPE,OIL | 3 | 16134-030 | |||
| COLLAR | 4 | 92027-256 | |||
| "O" RING,5MM | 5 | 670B1505 | |||
| "O" RING | 6 | 92055-055 | |||
| SCREW PAN HEAD 5X20 | 7 | 220B0520 | |||
| CLAMP | 8 | 92037-187 | |||
| SCREW PAN HEAD 6X14 | 9 | 220B0614 | |||
| OIL PUMP ASSY | 10 | 16082-1008 | KE250-B1/B2 | ||
| OIL PUMP ASSY | 10 | 16082-1008 | KE250-B1/B2 | ||
| OIL PUMP ASSY | 10 | 16082-1008 | KE250-B3 | ||
| SCREW PAN HEAD 3X8 | 11 | 220B0308 | |||
| WASHER SPRING 3MM | 12 | 461F0300 | |||
| "0" RING,OIL PUMP,UPP | 13 | 92055-1016 | |||
| GEAR,TACHOMETER | 14 | 41060-1008 | |||
| WASHER,AIR VENT | 15 | 92022-1025 | |||
| "0" RING,TACHOMTR CAS | 17 | 92055-1017 | |||
| GEAR,WORM TACHOMETER | 18 | 41060-1007 | |||
| WASHER SPRING 4MM | 19 | 461F0400 | |||
| SCREW PAN HEAD 4X10 | 20 | 220B0410 | |||
| "O" RING,OIL PUMP LOW | 21 | 92055-1015 |
| BOLT-BANJO,6MM | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER OIL PUMP BANJO | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PIPE,OIL | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| "O" RING,5MM | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| "O" RING | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 5X20 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X14 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| OIL PUMP ASSY | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B1/B2 |
| OIL PUMP ASSY | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B1/B2 |
| OIL PUMP ASSY | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B3 |
| SCREW PAN HEAD 3X8 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 3MM | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| "0" RING,OIL PUMP,UPP | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GEAR,TACHOMETER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER,AIR VENT | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| "0" RING,TACHOMTR CAS | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GEAR,WORM TACHOMETER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 4MM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 4X10 | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| "O" RING,OIL PUMP LOW | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
