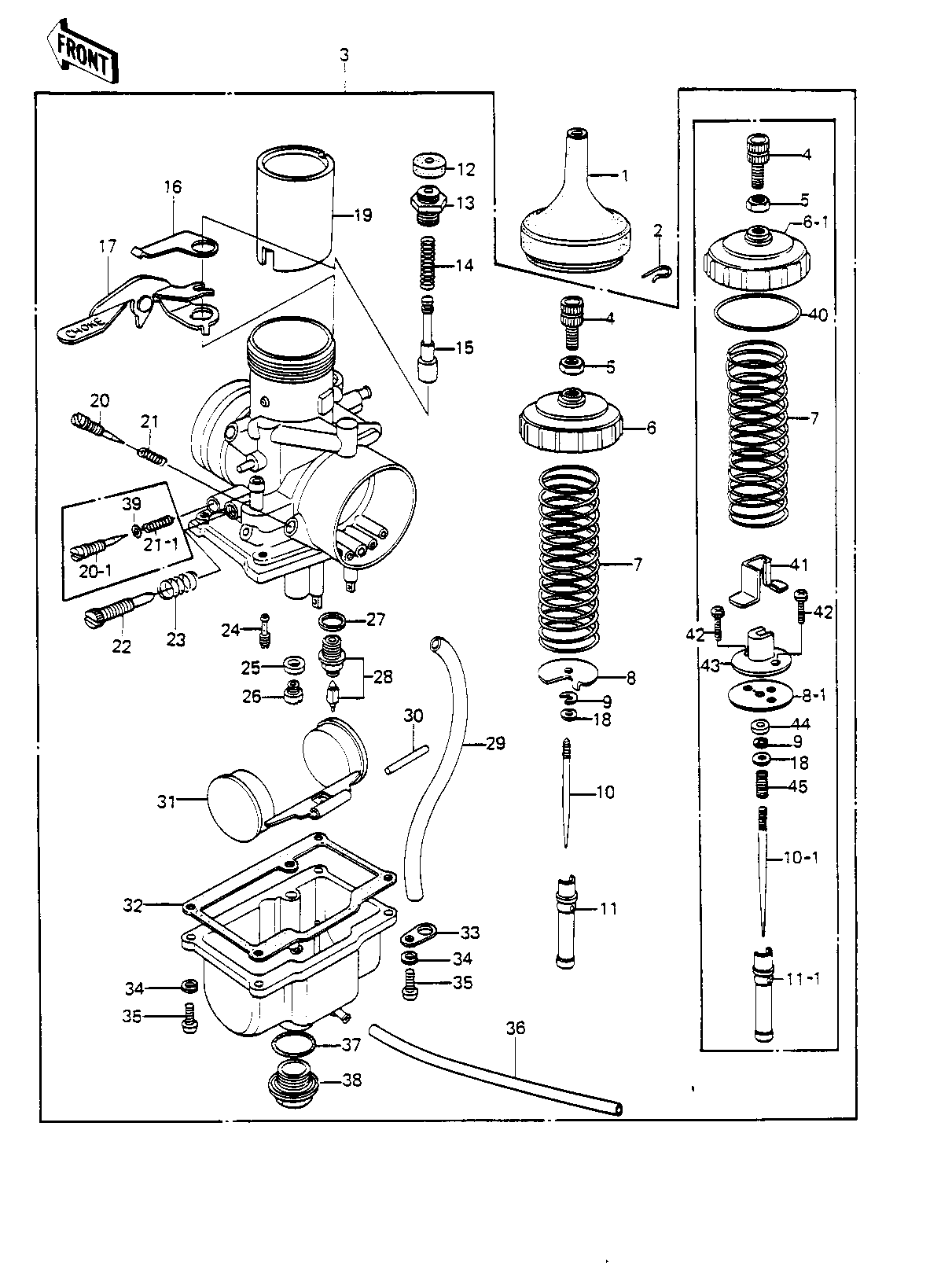

1979 KE250-B3 - CARBURETOR

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOOTS,CABLE ADJUSTER 1 49006-1004 KE250-B1/B2
BOOT,CARBURETOR 1 49006-1019 KE250-B3
CIRCLIP 2 92036-018
CARBURETOR ASSY 3 16001-280 KE250-B1/B2
CARBURETOR ASSY 3 16001-1087 KE250-B3
ADJUSTER,CABLE 4 16002-014
NUT-CABLE ADJUST LOCK 5 16003-006
CAP-MIXING CHAMBER 6 16004-018 KE250-B1/B2
CAP,MIXING CHAMBER 6-1 16004-1006 KE250-B3
SPRING,THROTTLE VALVE 7 92081-1041
SPRING SEAT,THRTL VL 8 16007-021 KE250-B1/B2
PLATE,THROTTLE VALVE 8-1 16007-1011 KE250-B3
CIRCLIP 9 16008-010
JET NEEDLE,5CN9-3 10 16009-1006 KE250-B1/B2
JET NEEDLE,5CN22-2 10-1 16009-1028 KE250-B3
NEEDLE JET,P-2 11 16017-1008 KE250-B1/B2
NEEDLE JET,#AP-0 11-1 16017-1032 KE250-B3
CAP,STARTER PLUNGER 12 16039-015
CAP,PLUNGER 13 16012-016
SPRING,STARTER PLUG 14 16013-008
PLUNGER,STARTER 15 16016-1002
SPRING PLATE,STARTER 16 13169-1052
LEVER,STARTER PLUNGER 17 13168-1008
WASHER,THROTTLE VALVE 18 92022-1024
VALVE,THROTTLE,CA2.5 19 16025-1005 KE250-B1/B2
VALVE,THROTTLE,CA2.5 19 16025-1024 KE250-B3
SCREW 20 16014-006 KE250-B1/B2
SCREW,PILOT 20-1 16014-1010 KE250-B3
SPRING-THR STOP SCREW 21 16022-007 KE250-B1/B2
SPRING,PILOT SCREW 21-1 16022-016 KE250-B3
SCREW-THROTTLE-ADJ 22 16021-1005
SPRING THR STOP SCREW 23 16022-005
JET-PILOT NO 35 24 92064-023 KE250-B1/B2
PILOT JET,#A30 24 92064-1021 KE250-B3
WASHER MAIN JET 25 16034-001
MAIN JET,#A97.5R 26 92063-1035 KE250-B1/B2
MAIN JET NO 92.5R 26 92063-068 OFF-ROAD USE ONLY
MAIN JET,#A95 26 92063-1031 OFF-ROAD USE ONLY
MAIN JET,#A100 26 92063-1033 OFF-ROAD USE ONLY
MAIN JET,#A102.5 26 92063-1028 OFF-ROAD USE ONLY
MAIN JET,#A100 26 92063-1033 KE250-B3
WASHER FLOAT VLV SEAT 27 16029-004
FLOAT VALVE ASSY 28 16030-005
TUBE,3.5X6.5X290,BRTH 29 92059-1017
FLOAT PIN 30 16032-003
FLOAT 31 16031-023
GASKET,FLOAT CHAMBER 32 11009-1031
PLATE,TUBE CLAMP 33 13169-1053
WASHER SPRING 4MM 34 461F0400
SCREW PAN HEAD 4X16 35 220B0416
TUBE,3X5X300 36 92059-1755
GASKET-COVER 37 16038-009
COVER,MAIN JET 38 16049-003
"O" RING 39 16038-024 KE250-B3
"O" RING,MIXING CHAMB 40 92055-1054 KE250-B3
COVER,THROTTLE,VALVE 41 14025-1113 KE250-B3
SCREW,PAN HEAD,3X14 42 16033-031 KE250-B3
CONNECTOR, THROTTLE CABLE 43 13159-1004 KE250-B3
RING,JET NEEDLE 44 92027-1103 KE250-B3
SPRING,JET NEEDLE 45 92081-1072 KE250-B3
