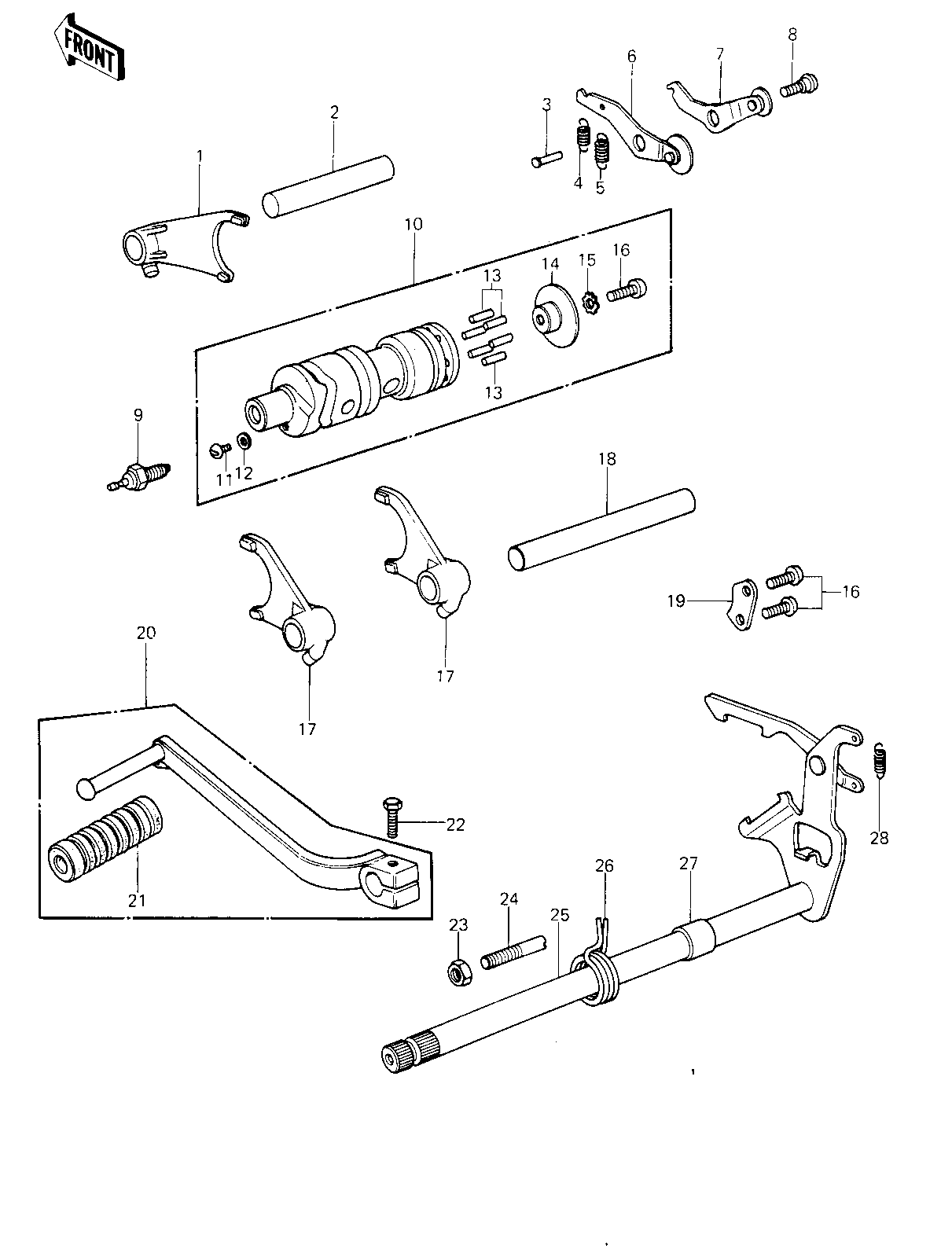

1979 KE250-B3 - GEAR CHANGE MECHANISM

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHIFT FORK,4TH & TOP 1 13140-078
ROD,SHIFT 71.7M/M 2 49047-1002 L=71.7 M/M
PIN 3 92043-1004
SPRING,GEAR CHANGE 4 92081-156
SPRING,CHNG DRUM LEVR 5 92081-1045
LEVER ASSY,GEAR CHANG 6 13236-009
LEVER ASSY,GEAR CHANG 7 13236-010
SCREW-PAN HEAD 8 92011-023
SWITCH,NEUTRAL 9 13151-019
DRUM ASSY,CHANGE 10 13239-027
SCREW,PAN HEAD,4X6 11 92009-006
WASHER PLAIN 4MM 12 410B0400
PIN GEAR CHANGE DRUM 13 92042-014
HOLDER,CHANGE DRUM 14 13142-014
WASHER LOCK 6MM 15 464H0600
SCREW PAN HEAD 6X14 16 220B0614
SHIFT FORK,LOW,2ND&3D 17 13140-077
ROD,SHIFT 93.7M/M 18 49047-1003 L=93.7 M/M
PLATE,CHANGE DRUM 19 13169-012 L=2.0 M/M
PEDAL,GEAR CHANGE 20 13156-066
RUBBER CHANGE PEDAL 21 13157-004
BOLT-UPSET,6X20 22 112G0620
NUT 8MM 23 312B0800
BOLT,RETURN SPRING 24 92001-1401
SHAFT ASSY,GEAR CHANG 25 13161-1008
SHAFT ASSY,GEAR CHANG 25 13161-1008
SPRING,GEAR CHANGE 26 92083-031
COLLAR,13X18.3X21.5 27 92027-1440 13 X 18.3 X 21.5
SPRING-CHANGE LEVER 28 92081-076
