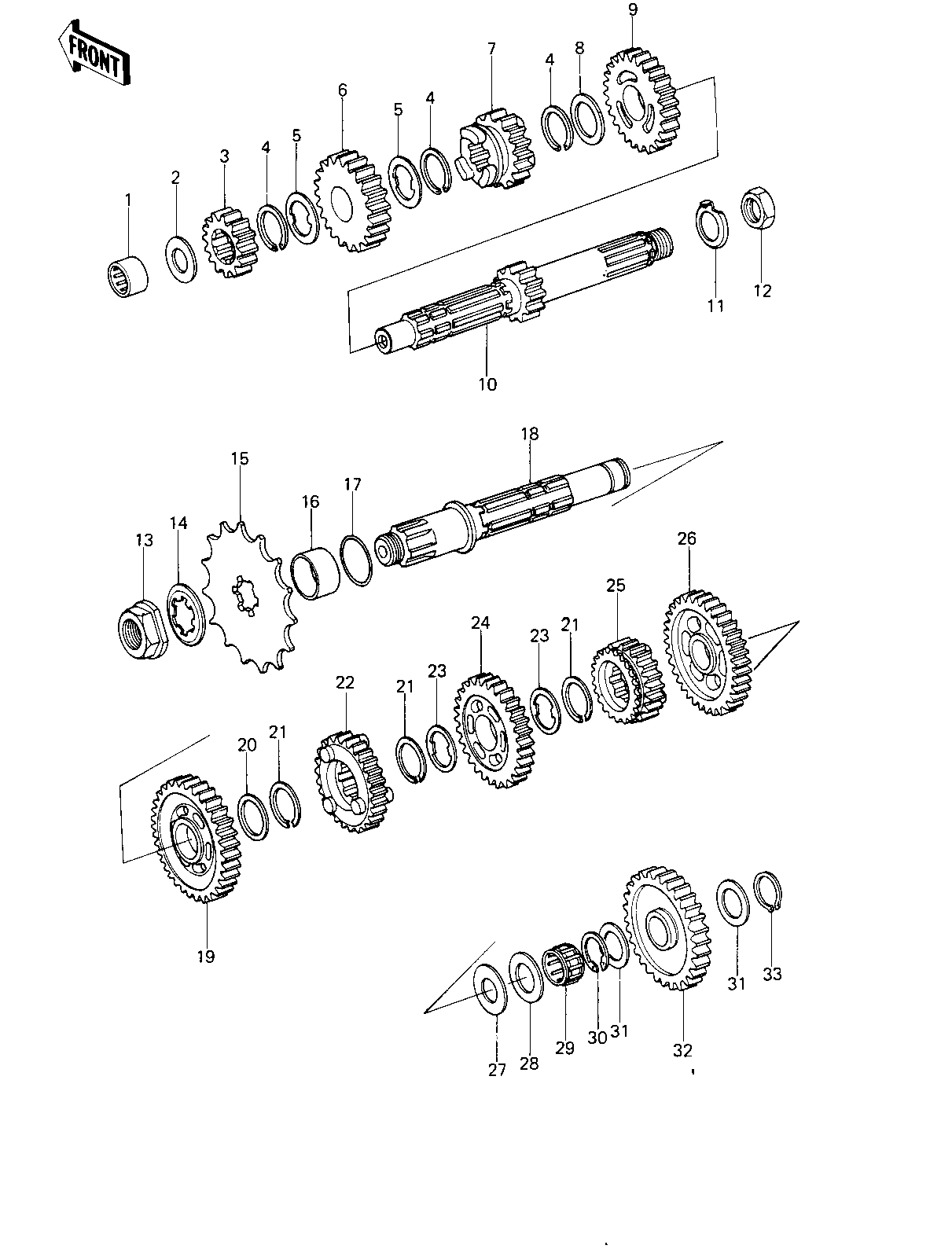

1979 KE250-B3 - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NEEDLE BEARING,HK1516 (Canada) 1 92046-057 HK1516
WASHER,THRUST,15MM 2 92022-279 1.0 T
2ND GEAR,DRIVE SHAFT 3 13130-046 14 T
CIRCLIP,18MM 4 92033-029
WASHER,LOCK 5 92024-059 O.D.=25
4TH GEAR,DRIVE SHAFT 6 13134-031 21 T
3RD GEAR,DRIVE SHAFT 7 13132-046 18 T
WASHER 8 92022-252 I.D.=20.5
TOP GEAR,DRIVE SHAFT 9 13136-062 21 T
SHAFT,DRIVE 10 13127-057 11 T
WASHER,LOCK,16M/M 11 92024-076
NUT,LOCK,16MM 12 92015-072
NUT,18MM 13 92015-075
WASHER,LOCK 14 92024-065 I.D.=21.5
ENGINE SPROCKET,14T 15 13144-068
ENGINE SPROCKET,13T 15 13144-1017 OFF-ROAD USE ONLY
COLLAR,ENGINE SPROKET 16 92027-1053
"O" RING 17 92055-035
SHAFT,OUTPUT 18 13128-043
2ND GEAR,OUTPUT SHAFT 19 13131-054 27 T
WASHER-PLAIN 20 92022-198 I.D.=22.3
CIRCLIP,25MM 21 92033-025
4TH GEAR,OUTPUT SHAFT 22 13135-036 24 T
WASHER-LOCK 23 92024-039 O.D.=27
3RD GEAR,OUTPUT SHAFT 24 13133-043 26 T
TOP GEAR,OUTPUT SHAFT 25 13137-041 20 T
LOW GEAR,OUTPUT SHAFT 26 13129-060 30 T
WASHER,PLAIN 27 92022-280 PHOSPHOR BRONZ
WASHER,PLAIN 28 92022-281 STEEL
BEARING-NEEDLE 29 92046-1184 KT172314
CIRCLIP,16MM 30 92033-032
WASHER-THRUST 31 92022-197 I.D.=17.3
IDLE GEAR 28T 32 13073-012 28 T
CIRCLIP 16MM 33 480J1600
