Parts Diagrams |

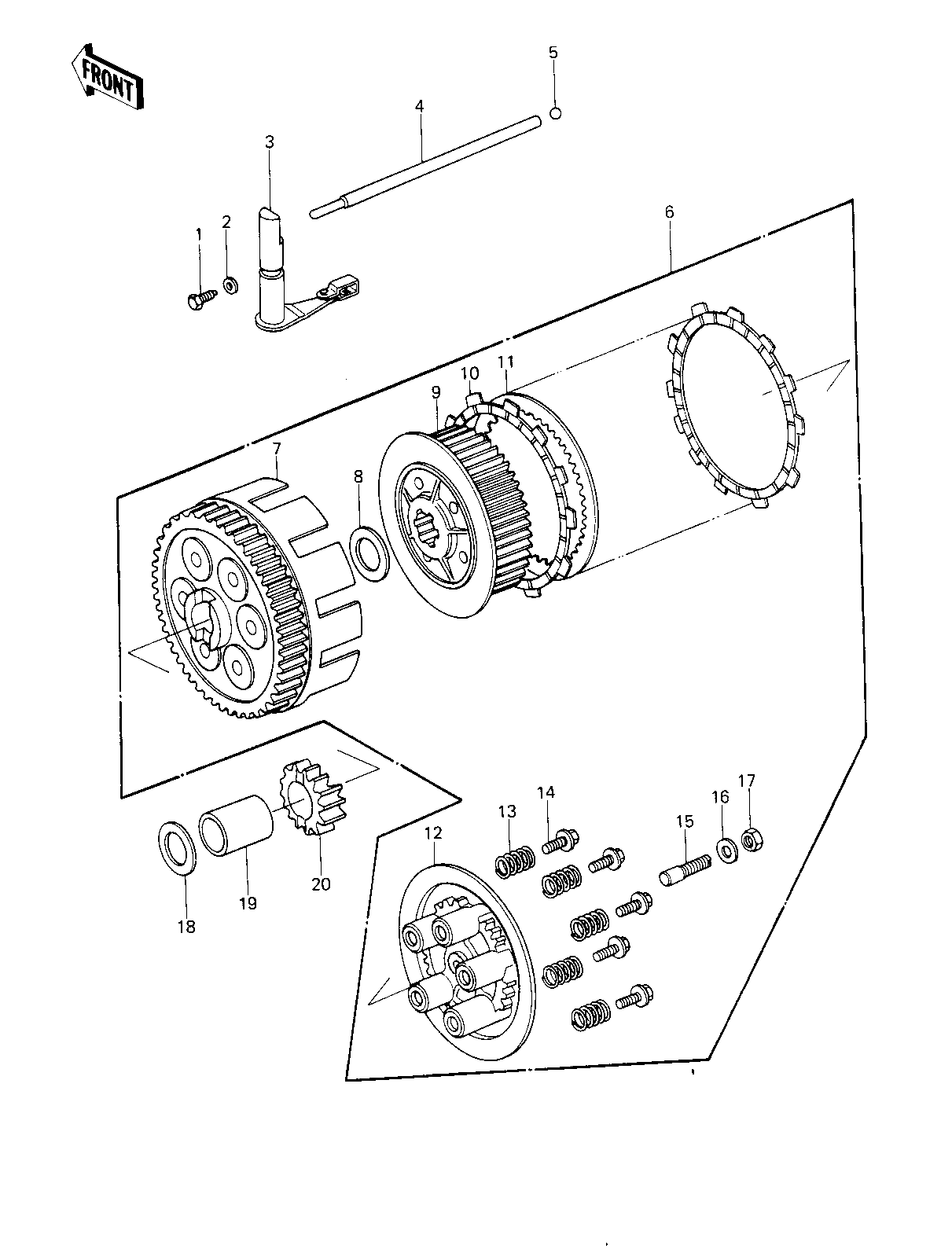

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,CLUTCH RELEASE | 1 | 92003-130 | |||
| GASKET,R.H ENG COVER | 2 | 92065-092 | |||
| LEVER,CLUTCH RELEASE | 3 | 13102-026 | |||
| ROD,CLUTCH PUSH | 4 | 13116-034 | L=162.5 M/M | ||
| BALL-STEEL,11/32" | 5 | 600A1100 | |||
| CLUTCH-ASSY | 6 | 13081-086 | |||
| HOUSING,CLUTCH | 7 | 13095-055 | |||
| WASHER,CLUTCH THRUST | 8 | 92022-282 | 1.4 T | ||
| HUB,CLUTCH | 9 | 13087-044 | |||
| PLATE,CLUTCH FRICTION | 10 | 13088-041 | |||
| PLATE,CLUTCH,STEEL | 11 | 13089-1005 | |||
| PLATE-CLUTCH OPERATIN | 12 | 13187-1009 | |||
| SPRING,CLUTCH | 13 | 92081-155 | |||
| BOLT,CLUTCH SPR FITT | 14 | 92001-1066 | |||
| SCREW,SLOTTED,8X35 | 15 | 92014-017 | |||
| WASHER,PLAIN,8M/M | 16 | 92022-063 | |||
| NUT 8MM | 17 | 318B0800 | |||
| WASHER,CLUTCH | 18 | 92022-031 | 2.0 T | ||
| BUSHING,CLUTCH | 19 | 92028-150 | |||
| PINION,KICK GEAR 16T | 20 | 13075-011 | 16 T |
| BOLT,CLUTCH RELEASE | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GASKET,R.H ENG COVER | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| LEVER,CLUTCH RELEASE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| ROD,CLUTCH PUSH | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | L=162.5 M/M |
| BALL-STEEL,11/32" | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CLUTCH-ASSY | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| HOUSING,CLUTCH | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER,CLUTCH THRUST | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 1.4 T |
| HUB,CLUTCH | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH FRICTION | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PLATE,CLUTCH,STEEL | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PLATE-CLUTCH OPERATIN | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPRING,CLUTCH | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH SPR FITT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW,SLOTTED,8X35 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,8M/M | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| NUT 8MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER,CLUTCH | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 2.0 T |
| BUSHING,CLUTCH | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PINION,KICK GEAR 16T | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | 16 T |
