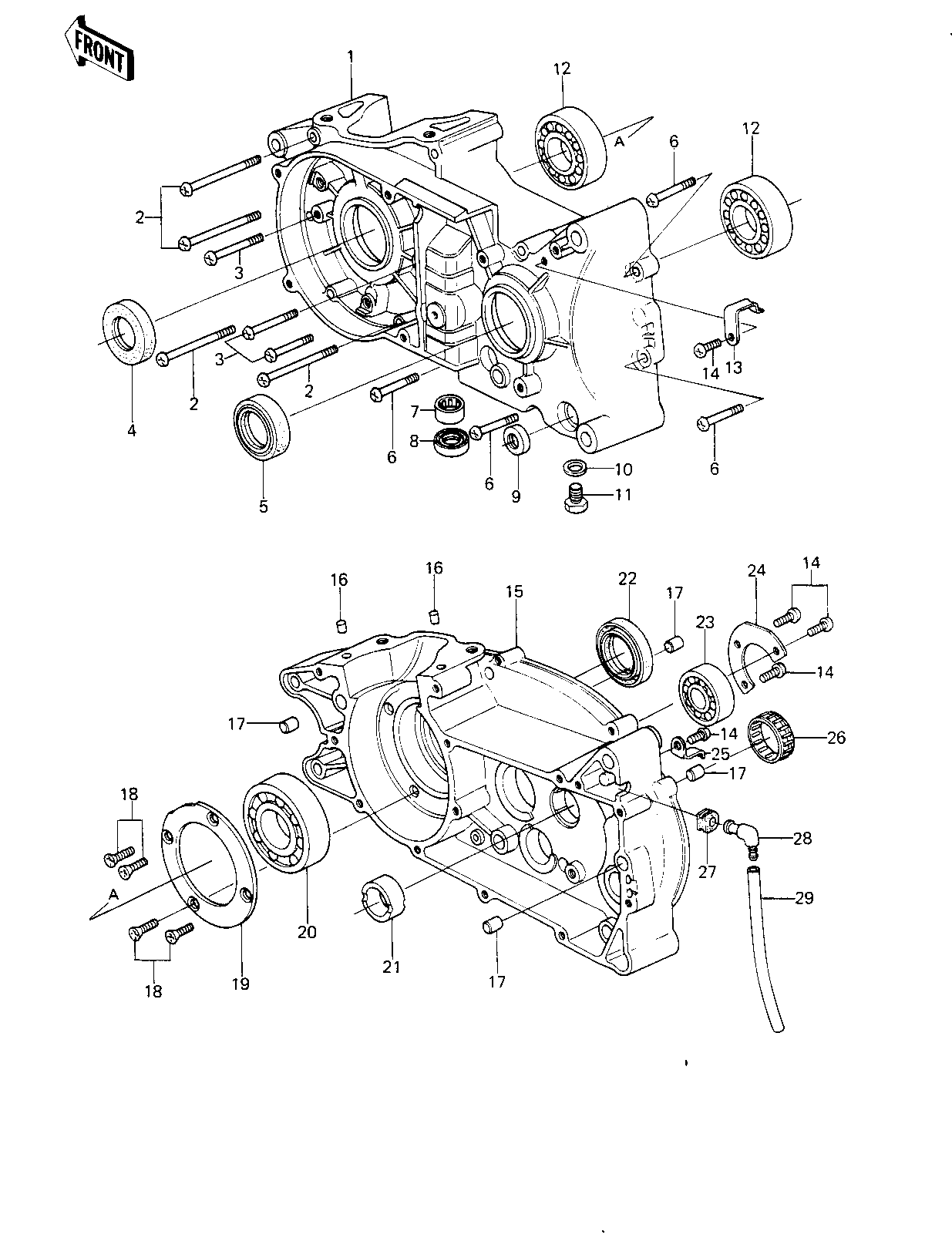

1979 KE250-B3 - CRANKCASE

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CRANKCASE,L.H,AL SHOT 1 14002-127-2J
SCREW PAN HEAD 6X65 2 220B0665
SCREW PAN HEAD 6X45 3 220B0645
OIL SEAL,TB25457 4 653B254507 TB25457
SEAL-OIL,TC32457 5 92049-1159 TC32458
SCREW PAN HEAD 6X25 6 220B0625
NEEDLE BEARING,HK1612 7 92046-058 HK1612
OIL SEAL TB16267 8 92051-003 TB16267
OIL SEAL,TB13225.5 9 92051-005
GASKET CHECK VALVE 10 92065-058
PLUG OIL DRAIN 11 92067-001
BEARING BALL #6305 12 601B6305 #6306C3
CLAMP,OIL PIPE 13 92037-157
SCREW PAN HEAD 6X14 14 220B0614
CRANKCASE,R.H,AL SHOT 15 14003-094-2J
PIN,DOWEL,6X12 16 551A0612
PIN,DOWEL,10X8.2X14 17 92043-1037
SCREW CNTSNK HD 6X16 18 221B0616
HOLDER-CRANK BEARING 19 14014-019
BEARING-BALL 20 92045-016 SC0626C3
BUSHING 21 92028-147
OIL SEAL,TB38508 22 653B385008 TB38508
PLATE,POSITIONING,MSN 24 14014-039
CLAMP,CARBURETOR 25 92037-1025
BEARING,NEEDLE,344012 26 92046-040 #344012
GROMMET 27 92071-042
BREATHER ASSY 28 14069-1001
PIPE-BREATHER 29 92059-061
