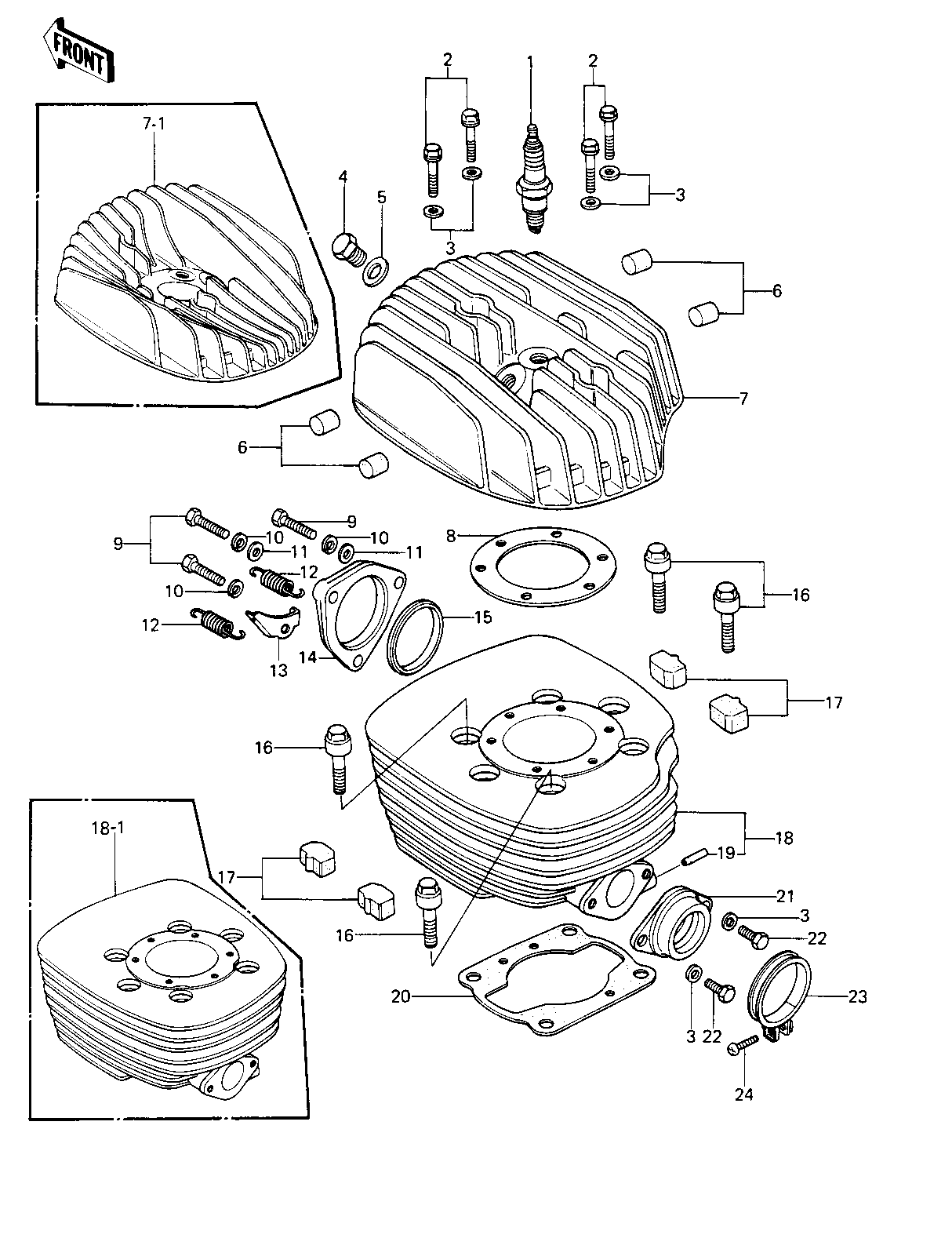

1979 KE250-B3 - CYLINDER HEAD/CYLINDER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPARK PLUG B8ES | 1 | B8ES | |||
| BOLT | 2 | 92001-1578 | |||
| WASHER PLAIN 8MM | 3 | 410B0800 | |||
| PLUG,CYLINDER HEAD | 4 | 92067-023 | |||
| GASKET-CYL HEAD PLUG | 5 | 92065-068 | |||
| DAMPER RUBBER | 6 | 92075-075 | KE250-B1/B2 | ||
| DAMPER RUBBER | 6 | 92075-075 | KE250-B3 | ||
| HEAD,CYLINDER | 7 | 11001-108-21 | KE250-B1/B2 | ||
| HEAD,CYLINDER,F.BLACK | 7-1 | 11001-1010 | KE250-B3 | ||
| GASKET,CYLINDER HEAD | 8 | 11004-075 | |||
| BOLT,HEX HEAD,6X35 | 9 | 92001-164 | |||
| WASHER SPRING 6MM | 10 | 461F0600 | |||
| WASHER PLAIN 6MM | 11 | 411B0600 | |||
| SPRING-CONNECTOR | 12 | 18071-003 | |||
| BRACKET,MUFFLER SPRNG | 13 | 18061-059 | |||
| HOLDER,EXHAUST | 14 | 18069-062 | |||
| GASKET,EXHAUST HOLDER | 15 | 18067-021 | |||
| BOLT,CYLINDER,10X40 | 16 | 92003-217 | |||
| DAMPER,RUBBER | 17 | 92075-304 | |||
| CYLINDER,ELECTRO-FUSE | 18 | 11005-157-21 | KE250-B1/B2 | ||
| CYLINDER,ENG,F.BLACK | 18-1 | 11005-1021 | KE250-B3 | ||
| NOZZLE | 19 | 92062-009 | |||
| GASKET,CYLINDER BASE | 20 | 11009-045 | |||
| HOLDER-CARBURETOR | 21 | 16065-011 | |||
| BOLT, HEX HEAD, 8 X 20 | 22 | 110B0820 | |||
| CLAMP | 23 | 92037-200 | |||
| SCREW-PAN-CROS,5X25 | 24 | 220B0525 |
| SPARK PLUG B8ES | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 8MM | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PLUG,CYLINDER HEAD | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GASKET-CYL HEAD PLUG | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B1/B2 |
| DAMPER RUBBER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B3 |
| HEAD,CYLINDER | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B1/B2 |
| HEAD,CYLINDER,F.BLACK | |
| REF # | 7-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B3 |
| GASKET,CYLINDER HEAD | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X35 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPRING-CONNECTOR | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BRACKET,MUFFLER SPRNG | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| HOLDER,EXHAUST | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GASKET,EXHAUST HOLDER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT,CYLINDER,10X40 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| DAMPER,RUBBER | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CYLINDER,ELECTRO-FUSE | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B1/B2 |
| CYLINDER,ENG,F.BLACK | |
| REF # | 18-1 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | KE250-B3 |
| NOZZLE | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GASKET,CYLINDER BASE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| HOLDER-CARBURETOR | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT, HEX HEAD, 8 X 20 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS,5X25 | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
