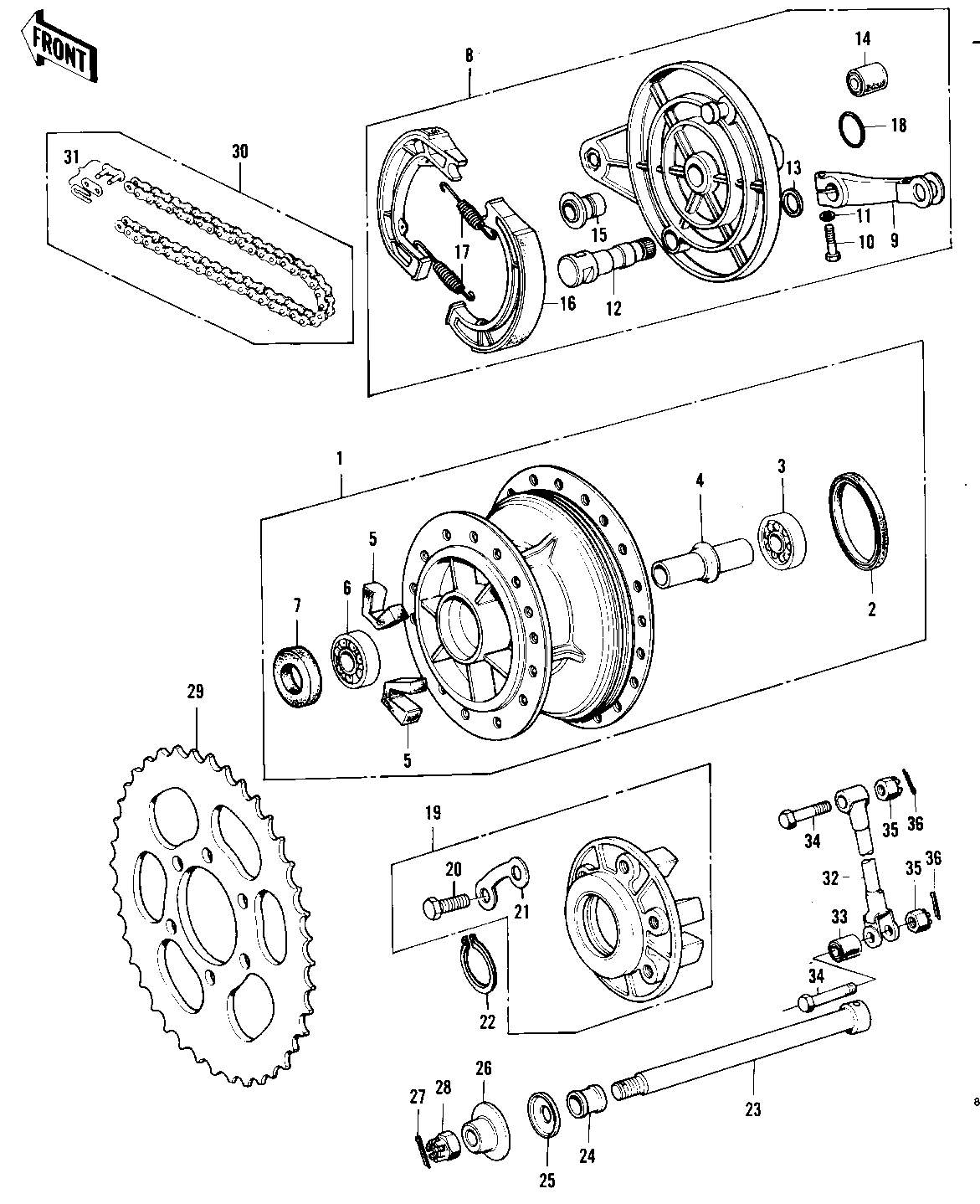

1974 F11-A - REAR HUB/BRAKE/CHAIN

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 1 42005-023-21 FLAT BLACK
.OIL SEAL,#50656 2 657G506506
.BALL BEARING,#6203ZC 3 601B6203Z
.SPACER,RR BRAKE DRUM 4 42010-025
.DAMPER-REAR HUB SHOC 5 42014-020
.BEARING BALL #6203 6 601B6203
.OIL SEAL-COUPLING 7 92052-003
PANEL-ASY,RR BRK,BLK 8 42006-023-21 FLAT BLACK
.LEVER-BRAKE CAM 9 42029-018
.BOLT-UPSET 10 112G0625
.WASHER PLAIN 6MM 11 410B0600
.CAMSHAFT,REAR BRAKE 12 42026-022
CAMSHAFT,REAR BRAKE 12 42026-022
.DUST SHIELD BRAKE CA 13 41051-001
.BUSH-RR BRK PEDAL RU 14 92092-008
.COLLAR-REAR HUB 15 42032-032
.SHOE,BRAKE 16 42019-011
SHOE,BRAKE 16 42019-011
.SPRING-BRAKE SHOE 17 42020-004
."0" RING,34MM 18 670B3034
COUPLING ASSY-RR HUB 19 42008-011 FLAT BLACK
.BOLT-REAR SPROCKET 20 92001-109
.WASHER LOCK 21 92088-007
.CIRCLIP,52MM 22 480J5200
AXLE-REAR 23 42031-031
COLLAR-REAR AXLE,R.H 24 42032-035
DUST-SHIELD-CAM SHAF 25 41042-010
COLLAR-REAR AXLE,L.H 26 42032-034
PIN-COTTER,4.0X35 27 550D4035
NUT CASTLE,16MM 28 92015-055
REAR SPROCKET 29 42041-121 STD
REAR SPROCKET 29 42041-120 OPTION
REAR SPROCKET 46T 29 42041-117 OPTION
DR CHAIN 525X106 30 92057-022 NO. 525 SH, 106L
.CHAIN JOINT 525 31 92058-006 NO. 525
TORQUE LINK-REAR BRK 32 43007-030
BUSH-RR BRK PEDAL RU 33 92092-008
BOLT-HEX HEAD,10X42 34 92003-085
NUT CASTLE 10MM 35 321B1000
PIN COTTER 2.5X20 36 550D2520
