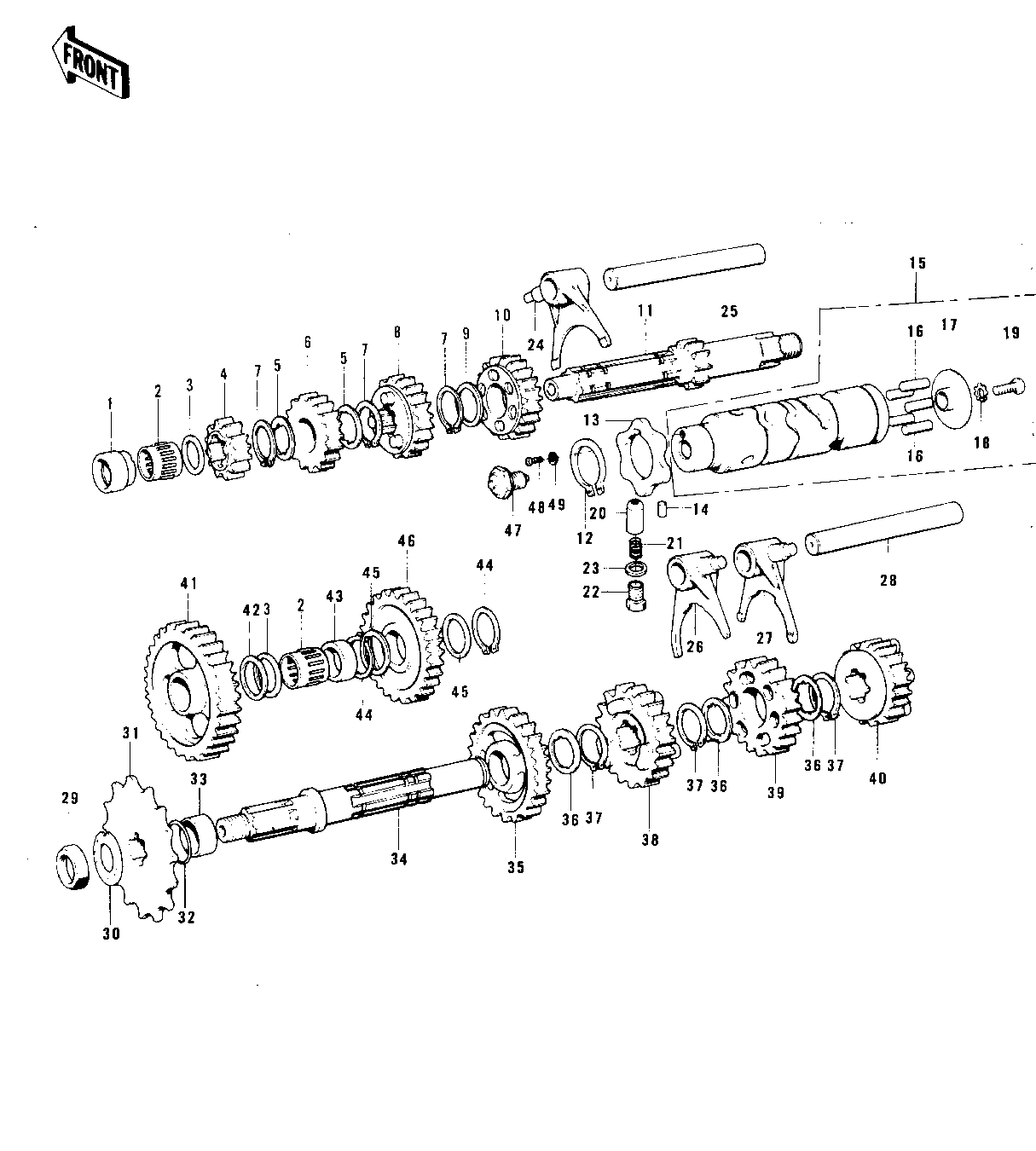

1974 F11-A - TRANSMISSION/CHANGE DRUM ('73 F11M)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BUSHING 1 92028-109
BEARING-NEEDLE 2 92046-1184
WASHER 17MM 3 92022-075 LD=17.5
2ND GEAR-DRIVE SHAFT 4 13130-029 16T
WASHER-LOCK 5 92024-039 O.D=27
TOP GEAR,DRIVE SHAFT 6 13136-043 22T
CIRCLIP 7 92033-025
3RD GEAR,DRIVE SHAFT 8 13132-032 19T
WASHER-PLAIN 9 92022-198 I.D=22.3
4TH GEAR,DRIVE SHAFT 10 13134-017 21T
SHAFT,DRIVE 11 13127-040 14T
CIRCLIP,30MM 12 480J3000
CAM-CHANGE DRUM 13 13145-1058
PIN-DOWEL,4X6 14 610A0406
DRUM ASSY-GEAR CHANGE 15 13239-012
PIN GEAR CHANGE DRUM 16 92042-014
PLATE CHANGE DRUM PIN 17 13142-008
WASHER LOCK 6MM 18 464H0600
SCREW PAN HEAD 6X12 19 220B0612
PIN-NEUTRAL POSITION 20 92043-076
SPRING 21 92081-112
BOLT 22 92001-106
GASKET 23 92065-090
FORK-SELECTOR,4TH&TOP 24 13140-044
ROD-SHIFT,LONG 25 13209-007 L=64.5M/M
FORK-SELECTOR,2ND&3RD 26 13140-043
FORK-SELECTOR,LOW 27 13140-042
ROD-SHIFT,LONG 28 13209-007 L=94 M/M
NUT 18MM 29 92015-019
WASHER,LOCK,18MM 30 92024-067
ENGINE SPROCKET 14T 31 13144-017 STD
ENGINE SPROCKET 14T 31 13144-017 OPTION
ENGINE SPROCKET 15T 31 13144-025
"O" RING 32 92055-035
COLLAR-ENG SPROKET 33 92027-163
SHAFT-OUTPUT 34 13128-033
2ND GEAR,OUTPUT SHAF 35 13131-039 26T
WASHER-LOCK 36 92024-038 O.D=31
CIRCLIP 37 92033-026
TOP GEAR,OUTPUT SHAF 38 13137-026 20T
3RD GEAR,OUTPUT SHAF 39 13133-032 24T
4TH GEAR,OUTPUT SHAF 40 13135-021 22T
LOW GEAR,OUTPUT SHAF 41 13129-047 29T
WASHER THRUST 42 92026-021
BUSHING 43 92028-110
CIRCLIP 16MM 44 480J1600
WASHER-THRUST 45 92022-197 LD=17.3
IDLE GEAR-KICKSTARTE 46 13073-008 30T
SWITCH,NEUTRAL 47 13151-018
SCREW,PAN HEAD,4X6 48 92009-006
WASHER SPRING 4MM 49 461F0400
