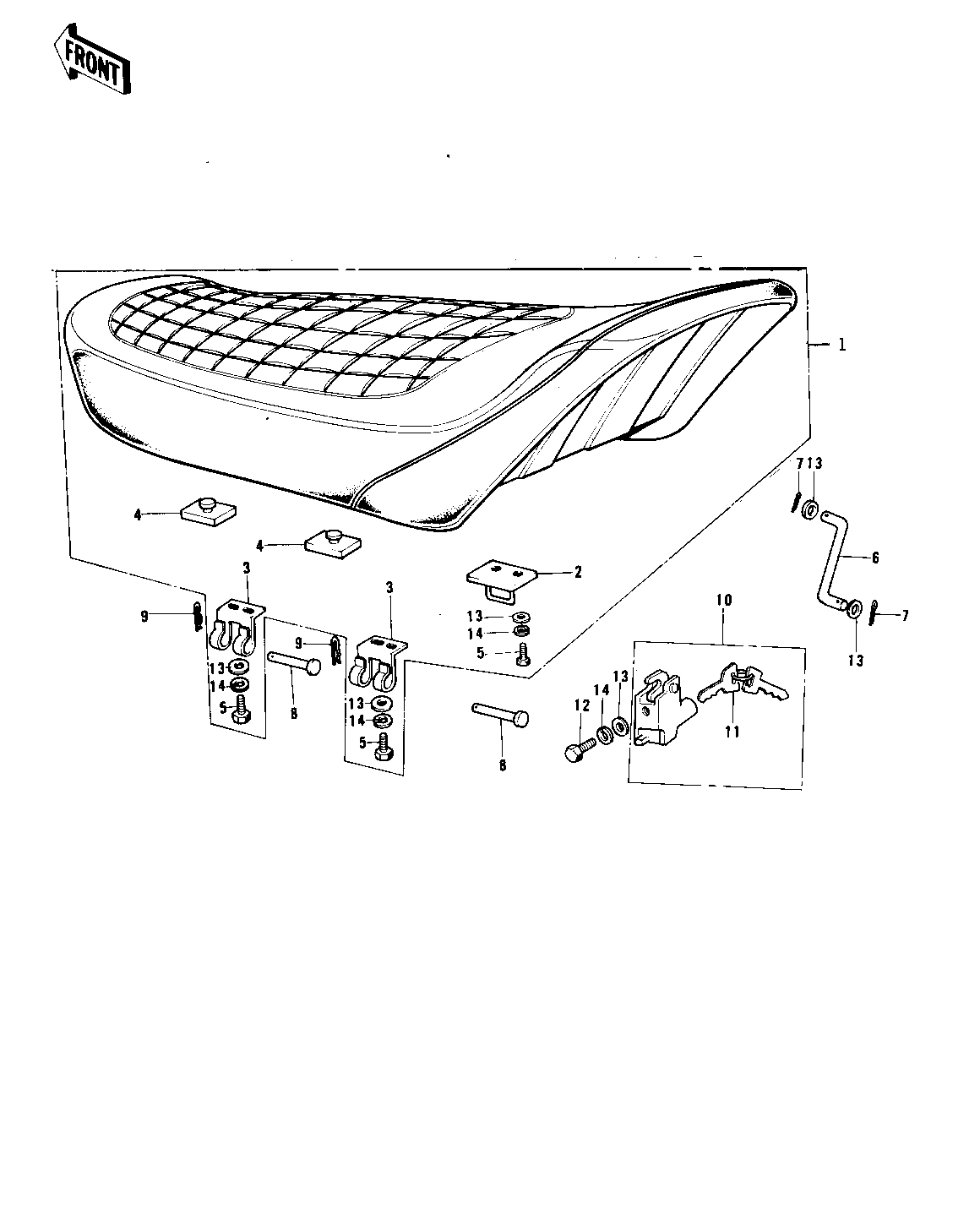

1975 F11-B - SEAT (F11-A/B)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT ASSY,DUAL 1 53002-056 F11A/B
HOOK, SEAT 2 53008-021
HINGE,BLACK 3 53009-017-10
DAMPER RUBBER 4 92075-099
BOLT-UPSET 6X14 5 112B0614
BOLT-UPSET 6X14 5 112B0614
STOPPER,SEAT 6 53054-008
PIN COTTER 2.0X15 7 550D2015
PIN,COTER 7 92041-006 F11B
PIN 8 53011-002
COTTER PIN 9 92041-003
LOCK ASSY,SEAT 10 53045-017
KEY SET,#421 11 27008-063-21 REF GRID F3 #42 FOR KEY BLANKS
KEY SET,#422 11 27008-063-22
KEY SET,#423 11 27008-063-23
KEY SET,#424 11 27008-063-24
KEY SET,#425 11 27008-063-25
KEY SET,#426 11 27008-063-26
KEY SET,#427 11 27008-063-27
KEY SET,#428 11 27008-063-28
KEY SET,#429 11 27008-063-29
KEY SET,#430 11 27008-063-30
BOLT-UPSET,6X12 12 112G0612
WASHER PLAIN 6MM 13 411B0600
WASHER SPRING 6MM 14 461F0600
