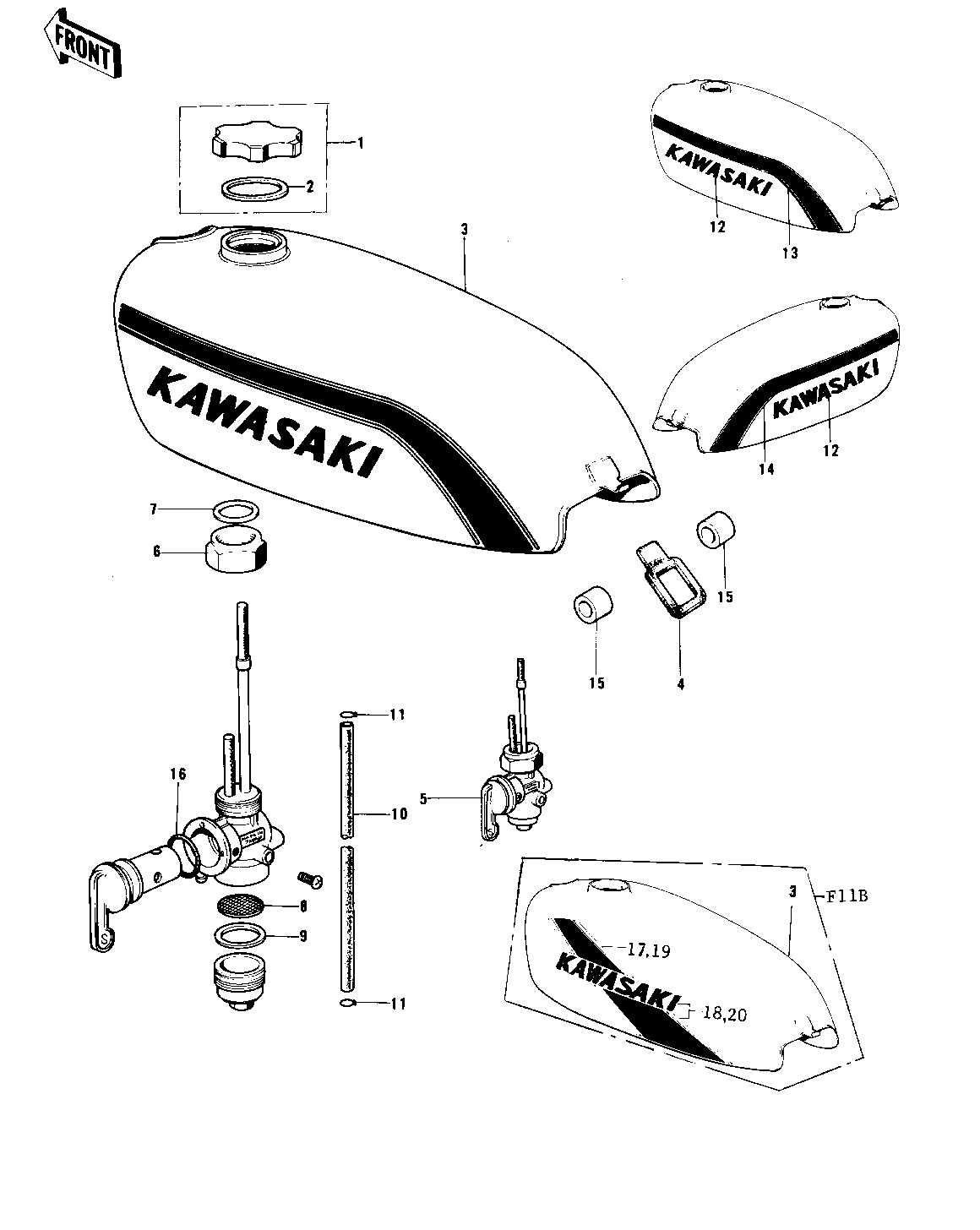

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,FUEL TANK | 1 | 51048-1013 | |||
| GASKET,FUEL TANK CAP | 2 | 51059-011 | |||
| TANK-FUEL,C.YELLOW | 3 | 51001-076-1U | F11A | ||
| TANK-FUEL,C.LIME | 3 | 51001-076-1M | F11A | ||
| TANK-FUEL,C.BLUE | 3 | 51001-076-1S | F11B | ||
| TANK-FUEL,C.ORANGE | 3 | 51001-076-3H | F11B | ||
| BAND-FUEL TANK | 4 | 92072-036 | |||
| COCK ASSY,FUEL | 5 | 51023-044 | |||
| FUEL COCK JOINT NUT | 6 | 51035-009 | |||
| GASKET-FUEL COCK JNT | 7 | 92065-081 | |||
| STRAINER FUEL | 8 | 51038-007 | |||
| GASKET FUEL COCK CUP | 9 | 51037-010 | |||
| PIPE-FUEL | 10 | 92059-080 | L=90 M/M | ||
| CLAMP FUEL PIPE | 11 | 92037-010 | |||
| DECAL-FUEL TANK | 12 | 56013-051 | *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL-FUEL TANK | 12 | 56013-051 | *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL,L.H FUEL TANK | 13 | 56027-171 | *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL,L.H FUEL TANK | 13 | 56027-171 | *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL,R.H FUEL TANK | 14 | 56027-172 | *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL,R.H FUEL TANK | 14 | 56027-172 | *SPECIAL SOLUTION IS REQUIRED | ||
| SPACER,FUEL TANK | 15 | 92026-088 | |||
| "O" RING,14MM | 16 | 670B2014 | |||
| DECAL,L.H FL TK,UPPE | 17 | 56027-282-SP | *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL,L.H FL TK,UPPE | 17 | 56027-282-SP | *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL,L.H FL TK,LOWE | 18 | 56027-283-SP | F11B *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL,L.H FL TK,LOWE | 18 | 56027-283-SP | F11B *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL,R.H FL TK,UPPE | 19 | 56027-284-SP | *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL,R.H FL TK,UPPE | 19 | 56027-284-SP | *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL,R.H FL TK,LOWE | 20 | 56027-285-SP | *SPECIAL SOLUTION IS REQUIRED | ||
| DECAL,R.H FL TK,LOWE | 20 | 56027-285-SP | *SPECIAL SOLUTION IS REQUIRED |
