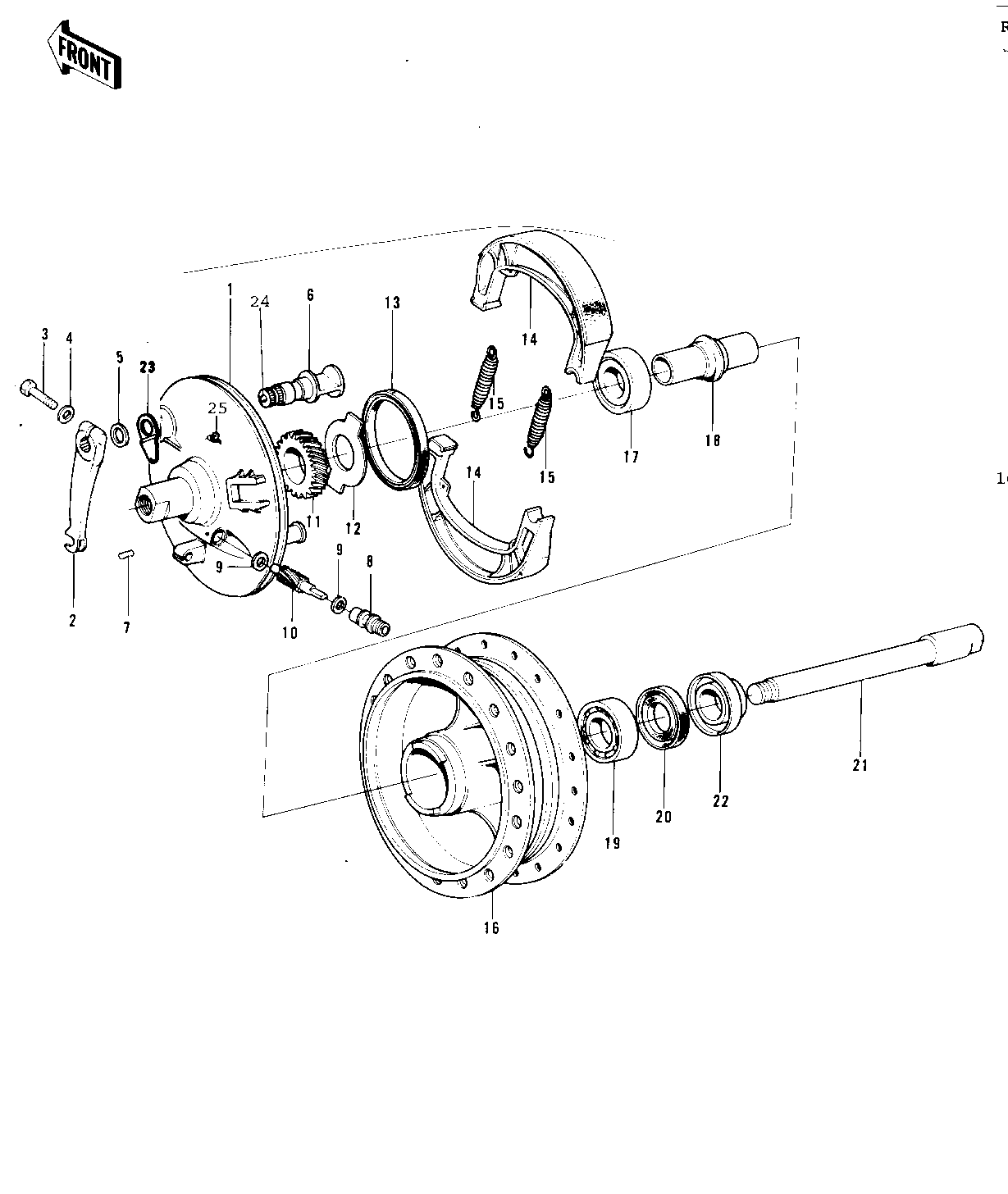

1974 F11-A - FRONT HUB/BRAKE ('73-'75 F11/F11-A/F11-B
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PANEL-ASY,FR BRK BLK | 1~15 | 41035-038-21 | FLAT BLACK F11 | ||
| PANEL-ASY,FR BRK BUF | 1~15 | 41035-045-80 | |||
| LEVER-BRAKE CAM | 2 | 41053-017 | |||
| BOLT-UPSET | 3 | 112G0625 | |||
| BOLT-UPSET | 3 | 112G0625 | |||
| WASHER PLAIN 6MM | 4 | 410B0600 | |||
| DUST SHIELD BRAKE CA | 5 | 41051-001 | |||
| CAMSHAFT,REAR BRAKE | 6 | 42026-022 | F11 | ||
| CAM SHAFT,FRONT BRAK | 6 | 41050-015 | F11A/B | ||
| SCREW-BUSHING NET | 7 | 41070-004 | F11A | ||
| PIN,SPRING | 7 | 41082-001 | F11A/B | ||
| BUSH SPEEDMETER CABL | 8 | 41062-001 | F11A | ||
| BUSH,SPEEDMETER CABL | 8 | 41062-005 | F11B | ||
| WASHER THRST SPD PIN | 9 | 41063-001 | |||
| PINION-SPEEDOMETER | 10 | 41060-010 | |||
| GEAR-SPEEDOMETER | 11 | 41059-011 | |||
| RECIEVER GEAR | 12 | 41064-003 | |||
| OIL SEAL F BRK PANEL | 13 | 92050-010 | |||
| SHOE,BRAKE | 14 | 42019-011 | |||
| SPRING-BRAKE SHOE | 15 | 42020-004 | |||
| DRUM-ASSY,FR BRK,BUF | 16~20 | 41034-023-80 | BUFF FINISH | ||
| BEARING BALL #6202Z | 17 | 601B6202Z | |||
| SPACER-FRONT HUB BER | 18 | 41039-020 | |||
| BEARING BALL #6202 | 19 | 601B6202 | |||
| OIL SEAL RR BRK DRUM | 20 | 92050-008 | |||
| AXLE-FRONT | 21 | 41068-037 | |||
| COLLAR-FRONT AXLE | 22 | 41069-019 | |||
| INDICATOR,FR BRK PNL | 23 | 41085-005 | F11Z/B | ||
| GREASE NIPPLE | 24 | 92080-002 | F11 | ||
| GREASE NIPPLE | 25 | 92005-002 |
| PANEL-ASY,FR BRK BLK | |
| REF # | 1~15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | FLAT BLACK F11 |
| PANEL-ASY,FR BRK BUF | |
| REF # | 1~15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| LEVER-BRAKE CAM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| DUST SHIELD BRAKE CA | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT,REAR BRAKE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | F11 |
| CAM SHAFT,FRONT BRAK | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | F11A/B |
| SCREW-BUSHING NET | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | F11A |
| PIN,SPRING | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | F11A/B |
| BUSH SPEEDMETER CABL | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | F11A |
| BUSH,SPEEDMETER CABL | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | F11B |
| WASHER THRST SPD PIN | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| PINION-SPEEDOMETER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| GEAR-SPEEDOMETER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| RECIEVER GEAR | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| OIL SEAL F BRK PANEL | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SHOE,BRAKE | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPRING-BRAKE SHOE | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| DRUM-ASSY,FR BRK,BUF | |
| REF # | 16~20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | BUFF FINISH |
| BEARING BALL #6202Z | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| SPACER-FRONT HUB BER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| BEARING BALL #6202 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| OIL SEAL RR BRK DRUM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| AXLE-FRONT | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| COLLAR-FRONT AXLE | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
| INDICATOR,FR BRK PNL | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | F11Z/B |
| GREASE NIPPLE | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | F11 |
| GREASE NIPPLE | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | |
| DESTINATION | |
| REMARKS | |
