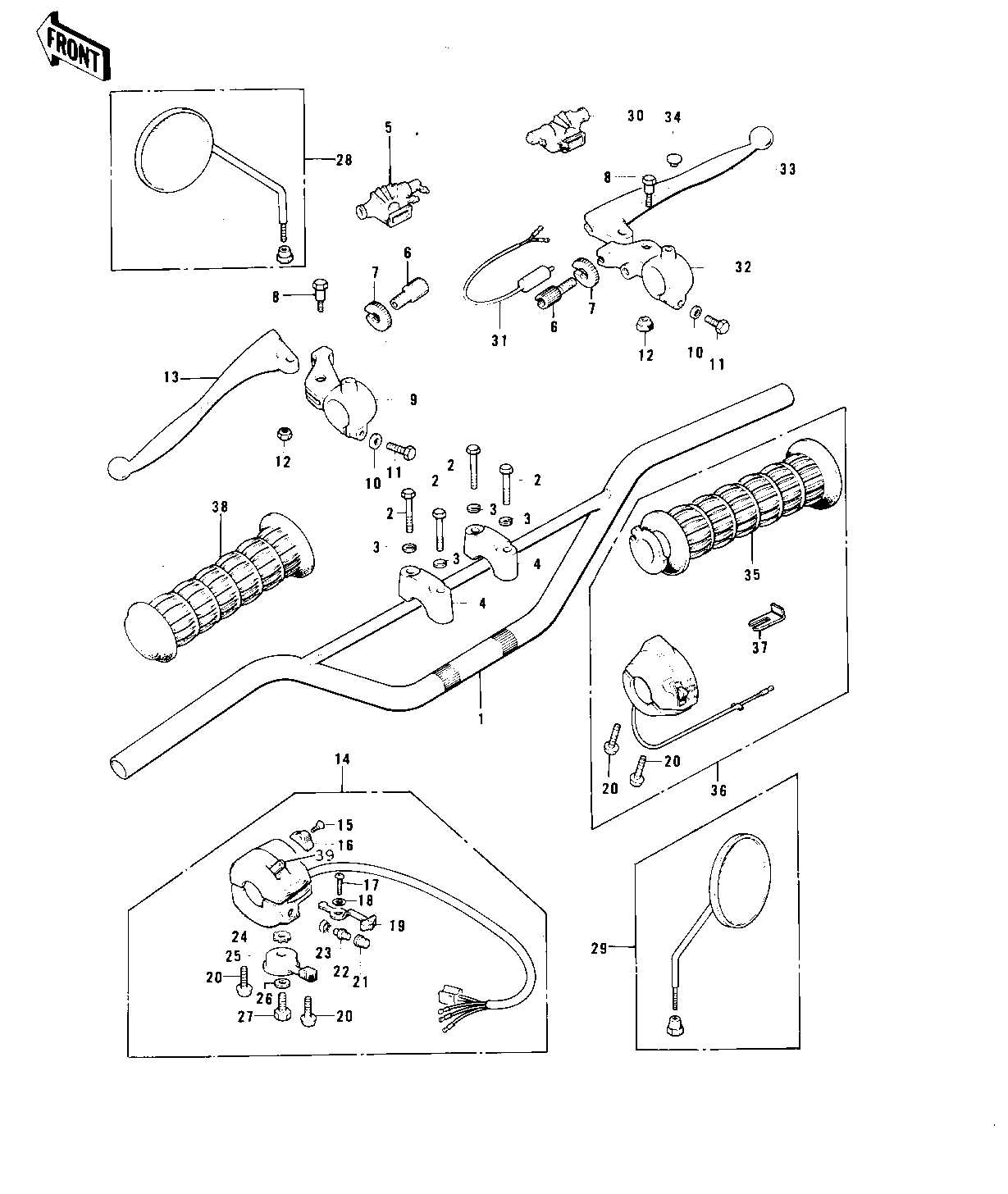

1974 F11-A - HANDLEBAR (F11-B)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46004-019
BOLT 8X38 2 92001-1405
WASHER SPRING 8MM 3 461F0800
HOLDER-HANDLEBAR 4 46012-008
BOOTS,LEVER HOLDER 5 49006-1017
SCREW CABLE ADJUST 6 46055-003
NUT-LOCK 7 46056-005
BOLT,HEX HEAD,5X22 8 92007-046
HOLDER-CLUTCH LEV,BL 9 46094-011-21 FLAT BLACK
WASHER PLAIN 6MM 10 410B0600
BOLT HEX HEAD 6X25 11 110N0625
NUT-LOCK,5MM 12 92019-014
LEVER-CLUTCH 13 46092-015
CASE ASSY,L.H,BLACK 14 46091-029-21 FLAT BLACK
L.H GRIP SWITCH KIT 15,16, 99990-531
SCREW CNTSNK HD 3X8 15 221B0308A
KNOB-L.H SWITCH 16 46044-011
SCREW PAN HEAD 3X5 17 220B0305A
WASHER 18 92095-010
KNOB-SWITCH 19 46044-012
SCREW-PAN-CROS,5X25 20 220B0525
SWITCH ASSY,HORN BUT 21 27010-1009
SWITCH ASSY,HORN BUT 22 27010-1009
SWITCH ASSY,HORN BUT 23 27010-1009
WASHER LOCK 24 92095-012
LEVER,STARTER,BLACK 25 46096-008-10
WASHER PLAIN 6MM 26 410B0600
BOLT,6X10 27 112G0610
REAR VIEW MIRROR,L.H 28 56003-009
REAR VIEW MIRROR,R.H 29 56002-020 OPTION
BOOTS,LEVER HOLDER 30 49006-1017
SWITCH-FR BRAKE LAMP 31 27021-005
HOLDER-FR BRK LEV,BL 32 46060-009-21 FLAT BLACK
LEVER FRONT BRAKE 33 46058-004
CAP-RR VIEW MIRROR 34 92102-009 NOT REQUIRED FOR 56003-01
GRIP ASSY-THROTTLE 35 46019-022
CASE ASSY,R.H. BLACK 36 46018-037-21 FLAT BLACK
HOLDER,CONTROL CABLE 37 46037-023
RUBBER-L.H GRIP 38 46075-019
SWITCH ASSY,L.H 39 46089-015
