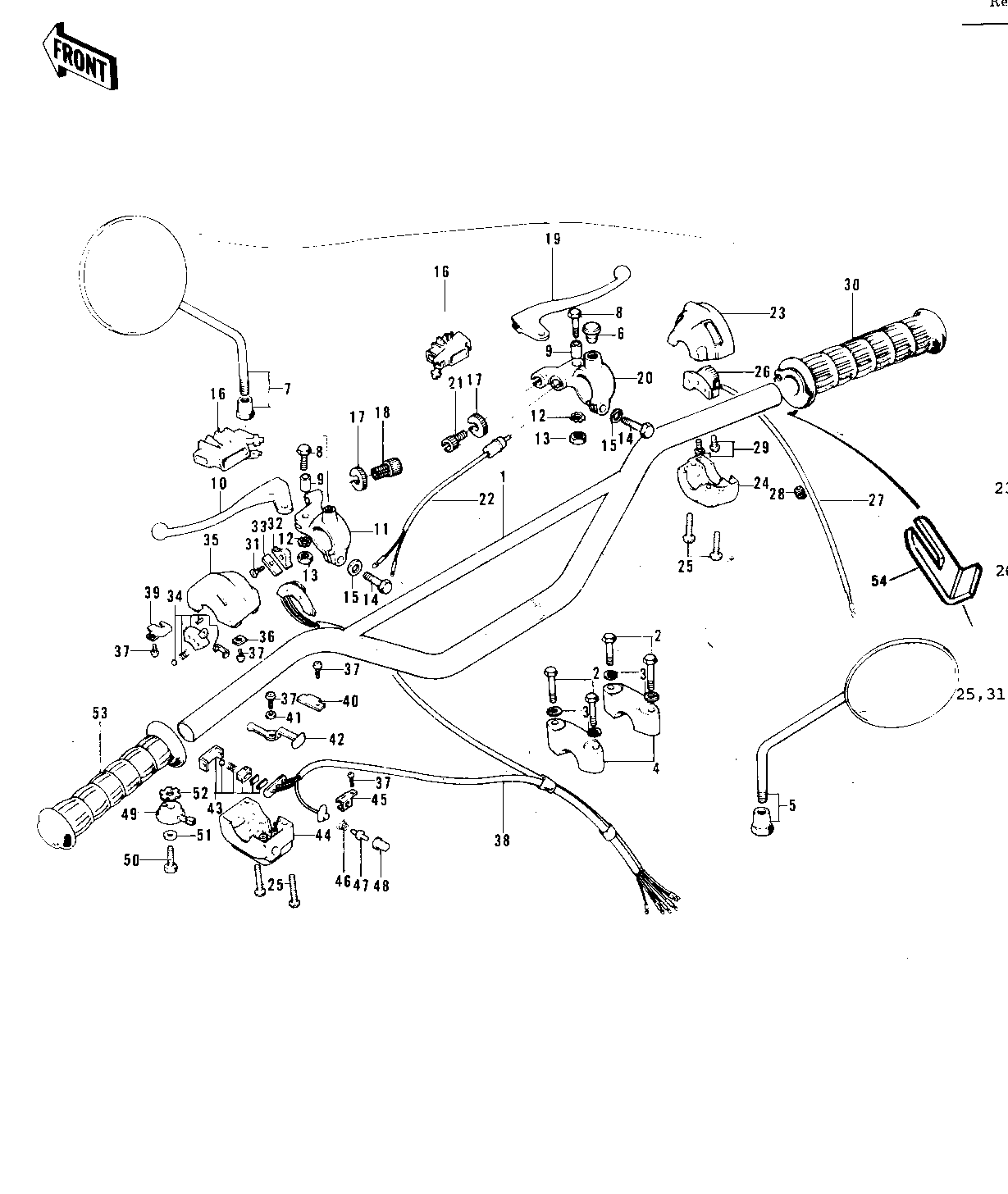

1974 F11-A - HANDLEBAR (F11-A)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HANDLEBAR 1 46004-019
BOLT 8X38 2 92001-1405
WASHER SPRING 8MM 3 461F0800
HOLDER-HANDLEBAR 4 46012-008
REAR VIEW MIRROR,R.H 5 56002-020 OPTION
CAP-RR VIEW MIRROR 6 92102-009 NOT REQD FOR 56003-001
REAR VIEW MIRROR,L.H 7 56003-009
BOLT HEX HEAD 5X20 8 92007-020
COLLAR LEVER 9 46059-011
LEVER-CLUTCH 10 46092-015
HOLDER-CLUTCH LEV,BL 11 46094-011-21 FLAT BLACK
WASHER LOCK 5MM 12 464H0500
NUT 5MM 13 312B0500
BOLT HEX HEAD 6X25 14 110N0625
WASHER PLAIN 6MM 15 410B0600
DUST COVER 16 46071-002
NUT-LOCK 17 46056-005
SCREW CABLE ADJUST 18 46055-003 I.D=8
LEVER FRONT BRAKE 19 46058-004
HOLDER-FR BRK LEV,BL 20 46060-009-21 FLAT BLACK
SCREW,CABLE ADJUST 21 46055-010 I.D=7
SWITCH-FR BRAKE LAMP 22 27021-005
CASE ASSY-R.H,F.BLAC 23~30 46018-023-21 FLAT BLACK
CASE-R.H UPPER,BLACK 23 46041-009-21 FLAT BLACK
CASE-R.H LOWER,BLACK 24 46023-009-21 FLAT BLACK
SCREW PAN HEAD 5X22 25 220B0522
SWITCH ASSY-ENG STOP 26~28 46027-010
SWITCH-ENGINE STOP 26 46028-004
WIRING HARNESS-STP S 27 46082-024
GROMMET-WIRING HARNE 28 92071-060
SCREW-PAN-HEAD 3X6 29 220B0306
GRIP ASSY-THROTTLE 30 46019-022
CASE ASSY-L.H,F.BLAC 25,31~ 46091-011-21 FLAT BLACK
SCREW CNTSNK HD 3X8 31 221B0308A
KNOB-L.H SWITCH 32 46044-011
SPRING L.H SW KNOB 33 46031-003
SWITCH ASSY,L.H 34 46089-012
CASE-L.H UPPER,BLACK 35 46086-016-21 FLAT BLACK
HOLDER-L.H SW UPPER, 36 46085-019
SCREW-PAN-HEAD 3X6 37 220B0306
WIRING HARNESS-L.H S 38 46082-025
HOLDER-LH SW UPPER,A 39 46085-020
HOLDER-L.H SW LOWER, 40 46085-016
WASHER 41 92095-010
KNOB-SWITCH 42 46044-012
SLIDE BLOCK AY-L.H S 43 46089-007
CASE-L.H LOWER,BLACK 44 46077-017-21 FLAT BLACK
HOLDER-L.H SW LOWER, 45 46085-017
SWITCH ASSY,HORN BUT 46 27010-1009
SWITCH ASSY,HORN BUT 47 27010-1009
SWITCH ASSY,HORN BUT 48 27010-1009
LEVER,STARTER,BLACK 49 46096-008-10
BOLT HEX HEAD 6X8 50 110B0608
BOLT-UPSET,6X8 50 112B0608
WASHER PLAIN 6MM 51 410B0600
WASHER LOCK 52 92095-012
RUBBER-L.H GRIP 53 46075-019
HOLDER,CONTROL CABLE 54 46037-023
