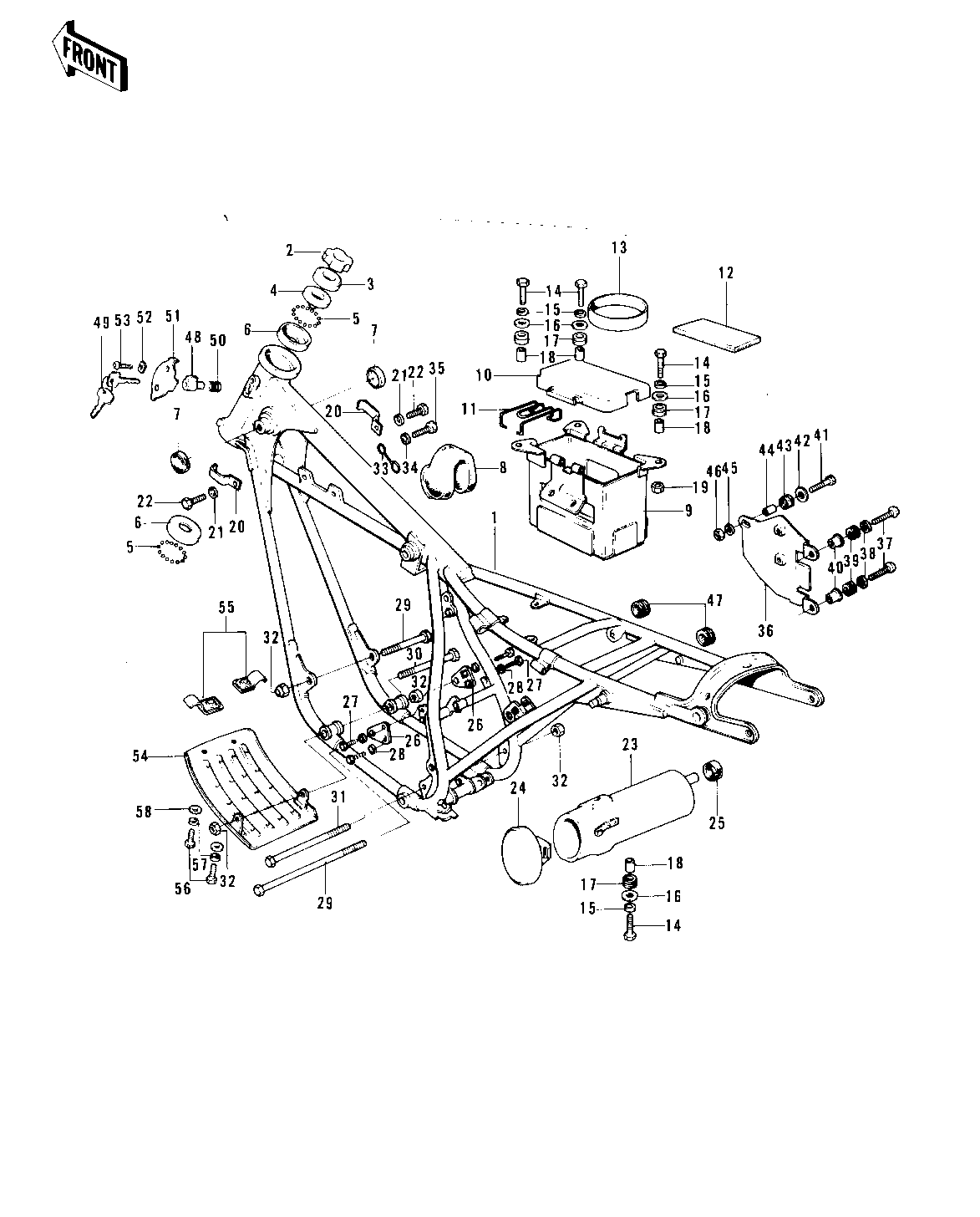

1974 F11-A - FRAME/FRAME FITTINGS/BATTERY CASE/TOOL C

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRAME 1 32002-051 F11
FRAME 1 32002-076 F11A/B
NUT STEERING STEM LC 2 92090-006
CAP-STEERING STEM 3 46098-011
CONE STERNG BERG UPP 4 92047-003
BALL STEEL 1/4' 5 600A0800
RACE STEERING BEARIN 6 92048-005
DAMPER RUBBER-FL TAN 7 92075-101 FRONT
DAMPER RUBBER 8 92075-102 REAR
CASE-BATTERY 9 32097-020
COVER-BATTERY 10 32130-001
FASTENER-BATTERY CAS 11 92079-003
MAT-BATTERY 12 32103-022
MAT-BATTERY SIDE 13 32103-023
BOLT 6X22 14 112B0622
BOLT 6X22 14 112B0622
WASHER SPRING 6MM 15 461F0600
WASHER 6.5X20X1.6T 16 92022-125
DAMPER RUBBER 17 92075-076
COLLAR,6.8X10X8.5 18 92027-129
NUT 6MM 19 311B0600
CLAMP-WIRE HARNESS 20 92037-086
WASHER SPRING 6MM 21 461F0600
BOLT-UPSET 6X14 22 112B0614
BOLT-UPSET 6X14 22 112B0614
CASE-TOOL 23 32098-017
COVER-TOOL CASE,BLAC 24 32104-004-21 FLAT BLACK
DAMPER RUBBER 25 92075-107
PLATE-ENGINE MOUNT 26 32030-024
BOLT,8X20 27 115G0820
WASHER SPRING 8MM 28 461F0800
BOLT-HEX HEAD,10X136 29 113B10136
BOLT-HEX HEAD,10X223 30 113B10223
BOLT,HEX HEAD,10X117 31 92001-1246
NUT,10MM 32 92015-1429
CLAMP 33 92037-053
WASHER PLAIN 6MM 34 411B0600
BOLT-UPSET,6X12 35 112G0612
BOLT-UPSET,6X12 35 112G0612
BRACKET-TERMINAL 36 26017-001
SCREW-PAN-CROS 37 220B0514
WASHER SPRING 5MM 38 461F0500
DAMPER RUBBER 39 92075-147 I.D=7
COLLAR 40 92027-166
SCREW PAN HEAD 6X22 41 220B0622
WASHER 6.5X22X1.6T 42 92022-237
DAMPER RUBBER 43 92075-149 I.D=8.5
COLLAR 44 92027-165
WASHER SPRING 6MM 45 461F0600
NUT 6MM 46 311B0600
GROMMET 47 92071-056
LOCK ASSY-STEERING 48,49 27016-028
LOCK ASSY,STEERING 48,49 27016-042 F11A/B
KEY SET-STRNG,#265 49 27018-014-65 F11
KEY SET-STRNG,#266 49 27018-014-66 F11
KEY SET-STRNG,#266 49 27018-014-66 F11
KEY SET-STRNG,#267 49 27018-014-67 F11
KEY SET-STRNG,#268 49 27018-014-68 F11
KEY SET-STRNG,#269 49 27018-014-69 F11
KEY SET,#421 49 27008-063-21 F11A/B
KEY SET,#422 49 27008-063-22 F11A/B
KEY SET,#423 49 27008-063-23 F11A/B
KEY SET,#424 49 27008-063-24 F11A/B
KEY SET,#425 49 27008-063-25 F11A/B
KEY SET,#426 49 27008-063-26 F11A/B
KEY SET,#427 49 27008-063-27 F11A/B
KEY SET,#428 49 27008-063-28 F11A/B
KEY SET,#429 49 27008-063-29 F11A/B
KEY SET,#430 49 27008-063-30 F11A/B
SPRING-STEERING LOCK 50 27032-001
CAP,STEERING LOCK 51 11012-1134
WASHER 52 92097-003
SCREW-TAPPING 53 92008-007
GUARD-ENGINE 54 55011-015
BRACKET-ENGINE GUARD 55 55016-006
BOLT,8X20 56 115G0820
BOLT,8X20 56 115G0820
WASHER SPRING 8MM 57 461F0800
WASHER PLAIN 8MM 58 411B0800
