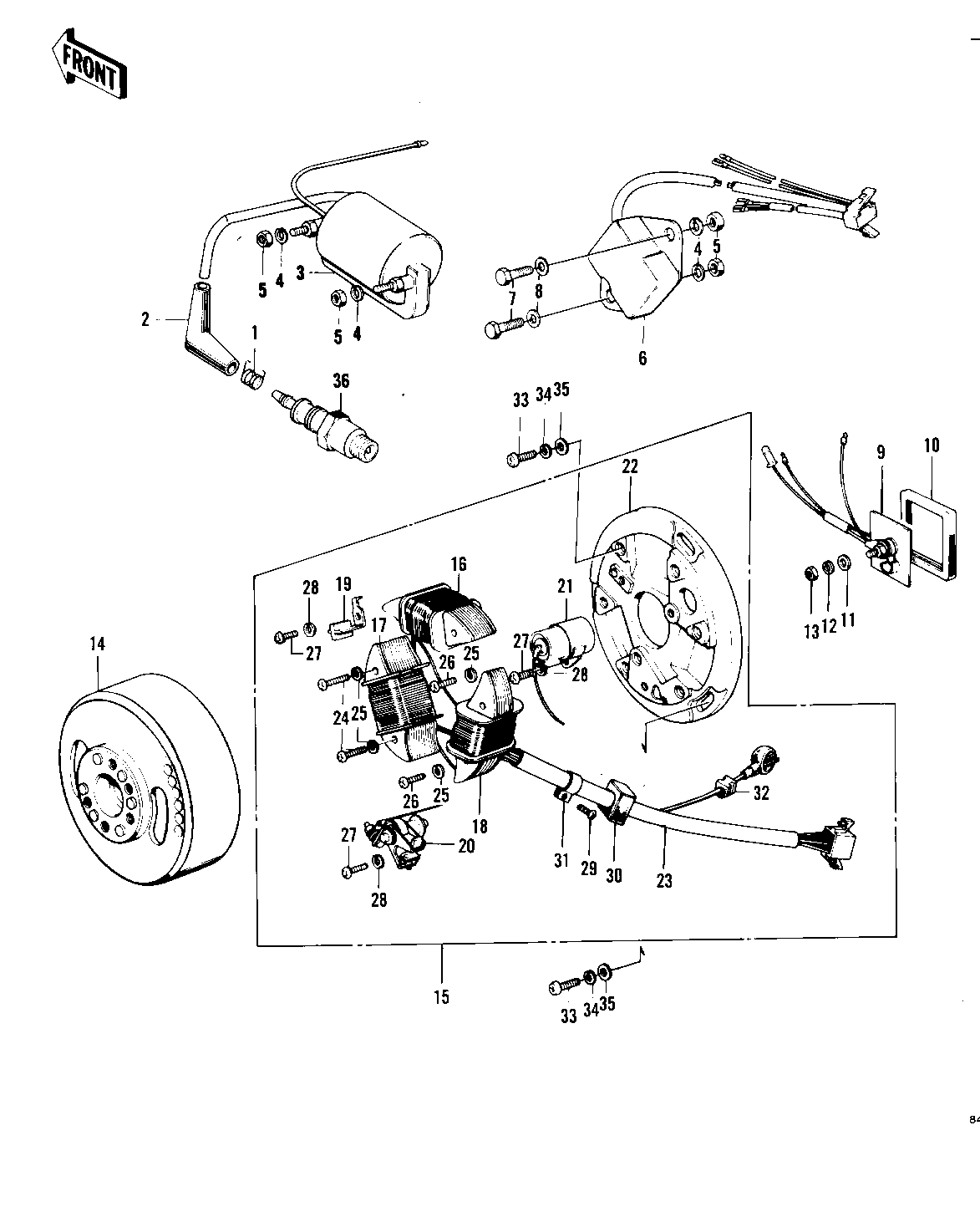

1974 F11-A - GENERATOR/RECTIFIER

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SPRING-SPARK PLUG CA 1 92101-001
CAP SPARK PLUG 2 21130-009
COIL-IGNITION 3 21121-042
WASHER SPRING 6MM 4 461F0600
NUT 6MM 5 311B0600
REGULATOR 6 21066-016
BOLT-UPSET,6X12 7 112G0612
WASHER PLAIN 6MM 8 411B0600
RECTIFIER 9 21061-013
MAT-RECTIFIER 10 32103-020
WASHER PLAIN 5MM 11 410B0500
WASHER SPRING 5MM 12 461F0500
NUT,5MM 13 311B0500
FLYWHEEL 14 21050-013
STATOR ASSY 15 21003-017
.COIL-LIGHTING,A 16 21047-017
.COIL-LIGHTING B 17 21047-018
.COIL-PRIMARY 18 21049-015
.FELT OIL 19 21019-005
.BREAKER-CONTACT 20 21008-020
.~E/NO. 4999CONDENSER 21 21013-030
CONDENSER 21 21013-030 E/NO. 5000~
.BASE-MAGNETO 22 21048-009
.WIRING HARNESS-MAIN 23 21029-023
.SCREW PAN HEAD 5X30 24 220B0530
.WASHER SPRING 5MM 25 461F0500
.SCREW-PAN-CROS,5X25 26 220B0525
.SCREW PAN HEAD 4X10 27 220B0410
.WASHER SPRING 4MM 28 461F0400
.SCREW PAN HEAD 4X6 29 220B0406
.GROMMET-WIRING HARN 30 92071-050
.CLAMP WIRING HARNESS 31 21037-002
.GROMMET WIRING HARN 32 21017-005
SCREW PAN HEAD 5X20 33 220B0520
WASHER SPRING 5MM 34 461F0500
WASHER PLAIN 5MM 35 410B0500
SPARK PLUG B9HS 36 B9HS
SPARK PLUG B9HS 36 B9HS
SPARK PLUG B9HS 36 B9HS
