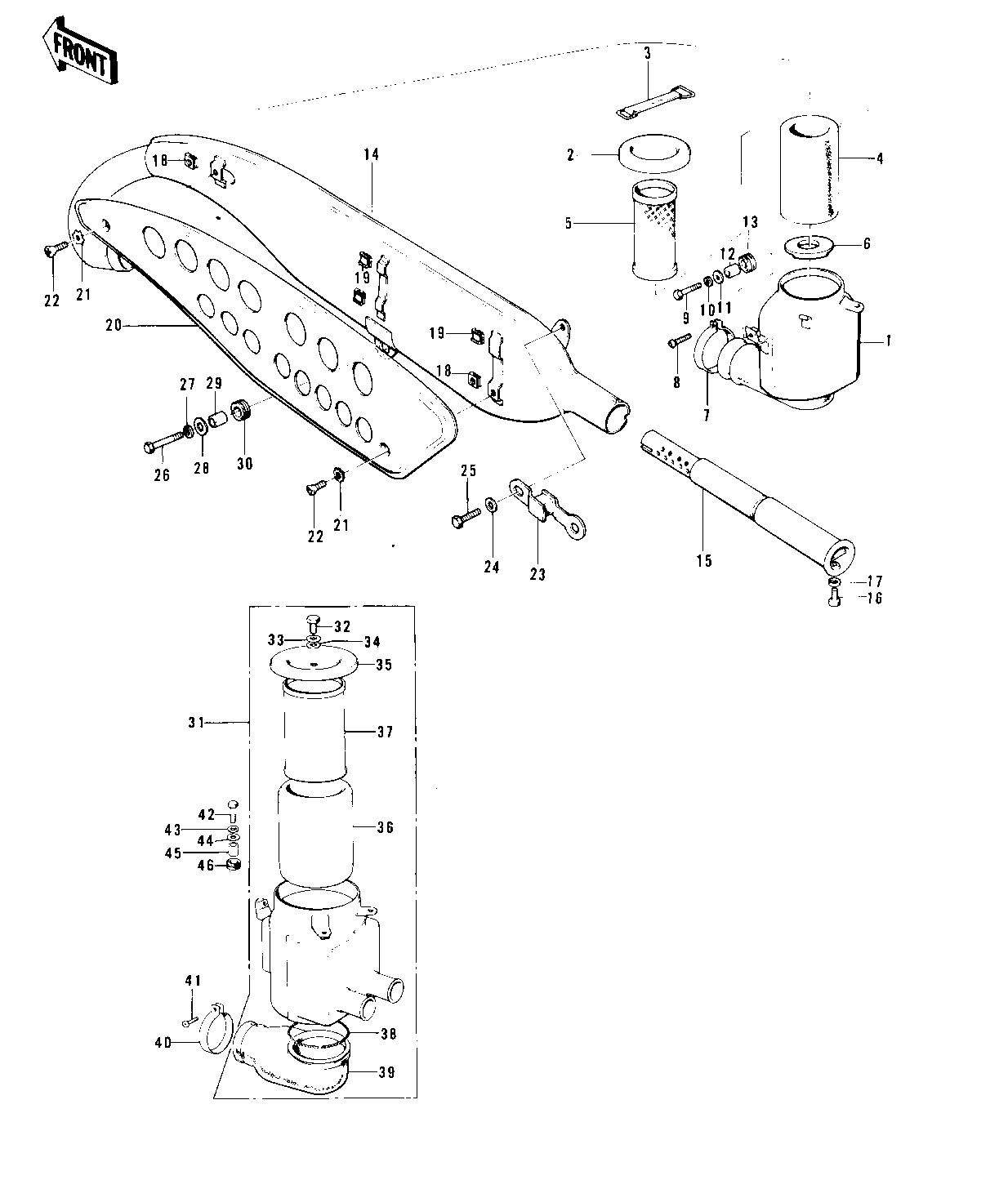

1974 F11-A - AIR CLEANER/MUFFLER ('73-'75 F11/F11-A/F

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AIR CLEANER ASSY,BLACK 1~6 11010-056-10 BLACK
CAP, AIR CLEANER 2 11012-027-10 BLACK
BAND-AIRCLEANER CAP 3 92072-043
ELEMENT,AIR,CLNR 4 11013-047
WIRE NET-AIR CLEANER 5 11014-006
HOLDER-AIR INLET PIP 6 16065-016
CLAMP-INLET PIPE 7,8 92037-061
SCREW-PAN-CROS 8 220B0535
BOLT 6X22 9 112B0622
BOLT 6X22 9 112B0622
WASHER SPRING 6MM 10 461F0600
WASHER 6.5X20X1.6T 11 92022-125
COLLAR,6.8X10X8.5 12 92027-129
DAMPER RUBBER 13 92075-076
MUFFLER ASSY.F-BLACK 14~17 18001-125-21
BAFFLE TUBE 15 18033-065
BOLT-UPSET,6X12 16 112G0612
BOLT-UPSET,6X12 16 112G0612
WASHER SPRING 6MM 17 461F0600
INSULATOR-HEAT 18 18065-009
INSULATOR 19 18065-007
COVER-MUFFLER 20 18064-008
WASHER LOCK 6MM 21 463H0600
SCREW PAN HEAD 6X12 22 220E0612
BRACKET-MUFFLER 23 18061-038
WASHER PLAIN 6MM 24 411B0600
BOLT-UPSET,6X16 25 112G0616
BOLT-SMALL-UPSET,8X3 26 115G0830
WASHER SPRING 8MM 27 461F0800
WASHER FUEL TANK FIT 28 92022-035
COLLAR 29 92027-102
DAMPER RUBBER-MUFFLE 30 18063-005
AIR CLEANER ASY,BLAC 31 11010-080-10 BLACK F11B
BOLT,HEX HEAD,6X14 32 92001-121 BLACK F11B
WASHER SPRING 6MM 33 461F0600 BLACK F11B
WASHER PLAIN 6MM 34 410B0600 BLACK F11B
CAP,AIR CLEANER 35 11012-046 BLACK F11B
ELEMENT,AIR,CLNR 36 11013-047 BLACK F11B
WIRE NET-AIR CLEANER 37 11014-006 BLACK F11B
SPRING,COIL 38 92081-063 BLACK F11B
PIPE,AIR INLET 39 11015-045 BLACK F11B
CLAMP-INLET PIPE 40 92037-061 BLACK F11B
SCREW-PAN-CROS 41 220B0535 BLACK F11B
BOLT 6X22 42 112B0622 BLACK F11B
WASHER SPRING 6MM 43 461F0600 BLACK F11B
WASHER 6.5X20X1.6T 44 92022-125 BLACK F11B
COLLAR,6.8X10X8.5 45 92027-129 BLACK F11B
DAMPER RUBBER 46 92075-076 BLACK F11B
