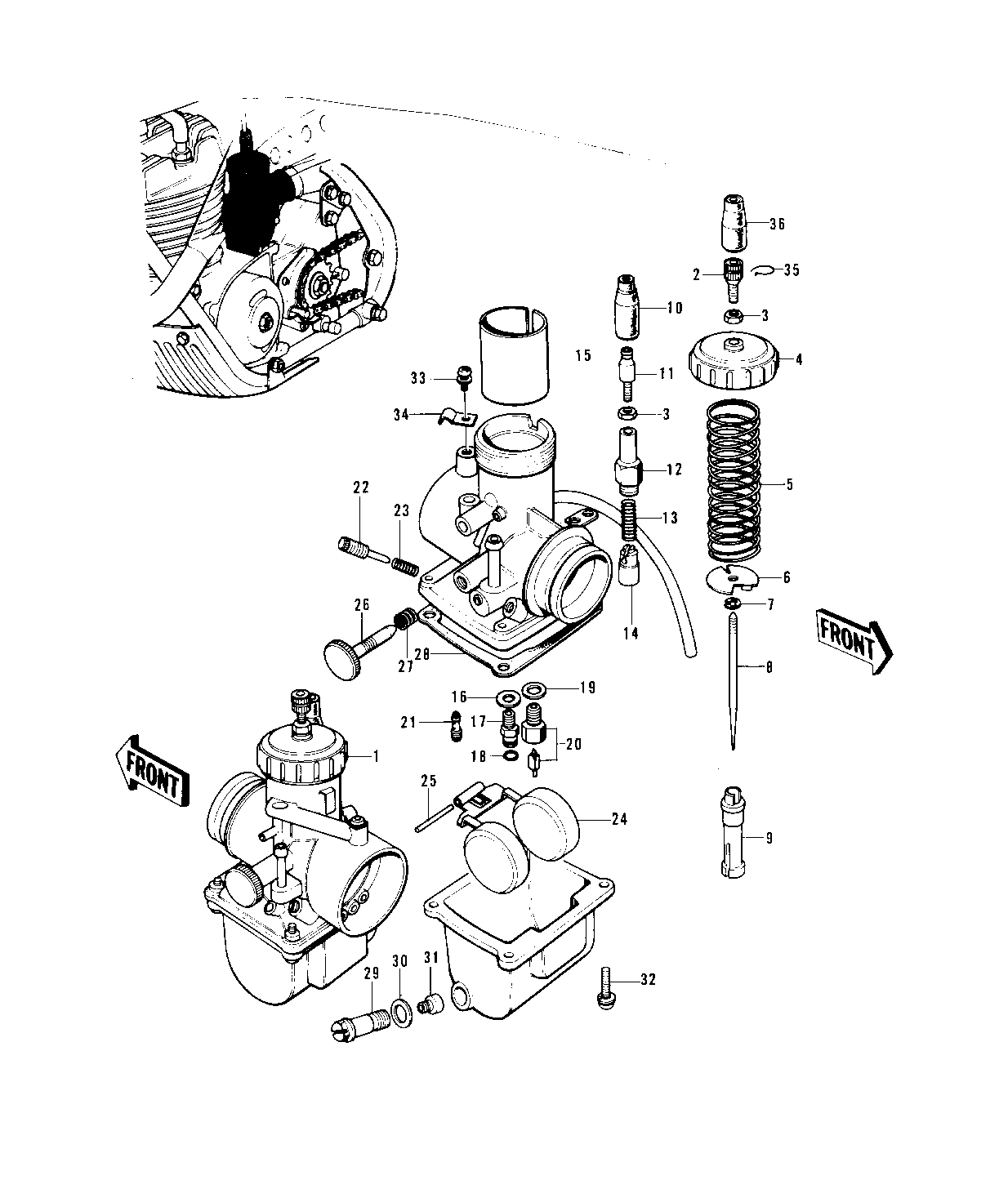

1974 F11-A - CARBURETOR ('73-'75 F11/F11-A/F11-B)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CARBURETOR ASSY 1 16001-171 F11
CARBURETOR ASSY 1 16001-171 F11A
CABLE ADJUSTER 2 16002-010
NUT-CABLE ADJUST LOC 3 16003-006
CAP-MIXING CHAMBER 4 16004-018 F11
UNAVAILABLE IN PRICE BOOK 4 16004-020 F11A
SPRING THROTTLE VALV 5 16006-006 F11
SPRING THROTTLE VALV 5 16006-007 F11A
SPRING SEAT-THRTL VL 6 16007-017
CIRCLIP 7 16008-010
JET NEEDLE 5DJ19 8 16009-049
NEEDLE JET,O-8 9 16017-061 F11
NEEDLE JET,0-6 9 16017-063 F11A
CAP,CARBURETOR 10 16036-007
CABLE ADJUSTER 11 16002-002
CAP STARTER PLUNGER 12 16012-008
SPRING-PLUNGER 13 16013-003
PLUNGER-ENRICHNER 14 16016-002
VALVE-THROTTLE,CA2.5 15 16025-050 F11
VALVE-THROTTLE,CA2.5 15 16025-047 F11A
WASHER MAIN JET 16 16034-001
HOLDER-NEEDLE JET 17 16065-014
"0" RING 18 92055-044
WASHER FLOAT VLV SEA 19 16029-004
FLOAT VALVE ASSY 20 16030-005
JET-PILOT NO 40 21 92064-024 F11
JET-PILOT NO 30 21 92064-022 F11A
SCREW 22 16014-006
SPRING-THR STOP SCRE 23 16022-007
FLOAT 24 16031-023
FLOAT PIN 25 16032-003
SCREW-THROTTLE STOP 26 16021-017
SPRING THR STOP SCRE 27 16022-005
GASKET FLOAT CHAMBER 28 16019-008
BOLT-BANJO 29 92001-118
WASHER-BANJO BOLT 30 16034-006
JET-MAIN NO 112.5R 31 92063-075 STD F11;OPT F11A/B
JET-MAIN NO 115R 31 92063-076 OPT F11; STD F11A/B
JET-MAIN NO 107.5R 31 92063-073 F11
MAIN JET,#110R 31 92063-1038 F11A/B
JET-MAIN NO 117.5R 31 92063-077 F11A/B
MAIN JET NO 120R 31 92063-078 F11A/B
SCREW FLOAT CHAMBER 32 16033-009
SCREW-CLAMP 33 16033-014
CLAMP 34 16053-004
CIRCLIP 35 92036-018
CAP-CABLE ADJUSTER 36 16036-009
