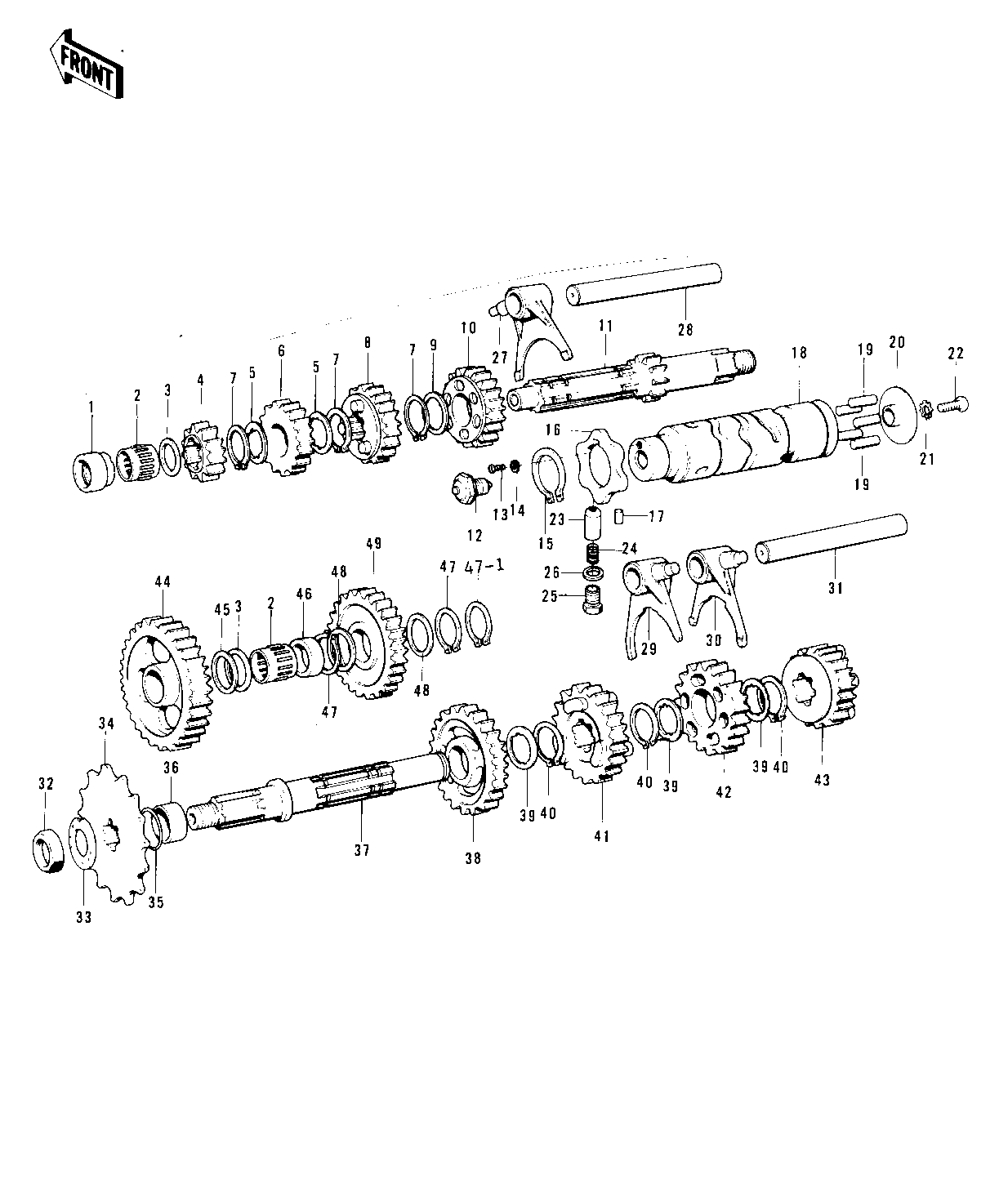

1974 F11-A - TRANSMISSION/CHANGE DRUM ('73-'75 F11/F1

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BUSHING 1 92028-109
BEARING-NEEDLE 2 92046-1184
WASHER 17MM 3 92022-075 O.D=28
2ND GEAR-DRIVE SHAFT 4 13130-029 F11
2ND GEAR,DRIVE SHAFT 4 13130-031 F11A/B
WASHER-LOCK 5 92024-039 O.D=27
TOP GEAR-DRIVE SHAFT 6 13136-039 24T
CIRCLIP,25MM 7 92033-025
3RD GEAR-DRIVE SHAFT 8 13132-031 20T
WASHER-PLAIN 9 92022-198 I.D=22.3
4TH GEAR-DRIVE SHAFT 10 13134-014 22T
SHAFT-DRIVE 11 13127-037 F11
SHAFT,DRIVE 11 13127-040 F11A/B
SWITCH,NEUTRAL 12 13151-018
SCREW,PAN HEAD,4X6 13 92009-006
SCREW PAN HEAD 4X6 13 211B0406A
WASHER SPRING 4MM 14 461F0400
CIRCLIP,30MM 15 480J3000
CAM-CHANGE DRUM 16 13145-1058
PIN-DOWEL,4X6 17 610A0406
DRUM ASSY-GEAR CHANG 18~22 13239-012
PIN GEAR CHANGE DRUM 19 92042-014
PLATE CHANGE DRUM PI 20 13142-008
WASHER LOCK 6MM 21 464H0600
SCREW PAN HEAD 6X12 22 220B0612
PIN-NEUTRAL POSITION 23 92043-076
SPRING 24 92081-112
BOLT 25 92001-106
BOLT,10MM 25 92001-131 F11B
GASKET 26 92065-090
GASKET 26 92065-090 F11B
FORK-SELECTOR,4TH&TO 27 13140-044
ROD-SHIFT,SHORT 28 13209-008 L=64.5 M/M
FORK-SELECTOR,2ND&3R 29 13140-043
FORK-SELECTOR,LOW 30 13140-042
ROD-SHIFT,LONG 31 13209-007 L=94. M/M
NUT 18MM 32 92015-019
WASHER,LOCK,18MM 33 92024-067
ENG SPROCKET 13T (OP 34 13144-043 STD
ENGINE SPROCKET 14T 34 13144-017 OPTION
ENGINE SPROCKET 15T 34 13144-025 OPTION
"O" RING 35 92055-035
COLLAR-ENG SPROKET 36 92027-163
SHAFT-OUTPUT 37 13128-033
2ND GEAR-OUTPUT SHAF 38 13131-035 F11
2ND GEAR,OUTPUT SHAF 38 13131-037 F11A/B
WASHER-LOCK 39 92024-038 O.D=31
CIRCLIP 40 92033-026
TOP GEAR-OUTPUT SHAF 41 13137-023 18T
3RD GEAR-OUTPUT SHAF 42 13133-028 F11
3RD GEAR,OUTPUT SHAF 42 13133-030 F11A/B
4TH GEAR-OUTPUT SHAF 43 13135-018 20T
LOW GEAR-OUTPUT SHAF 44 13129-041 F11
LOW GEAR,OUTPUT SHAF 44 13129-044 F11A/B
WASHER THRUST 45 92026-021 PHOSPOHOR-BRONZE
BUSHING 46 92028-110
CIRCLIP 16MM 47 480J1600 (1 REQ FOR F11B)
CIRCLIP 16MM 47-1 480J1600 F11B
WASHER-THRUST 48 92022-197 O.D=24
IDLE GEAR-KICKSTARTE 49 13073-008 30T
