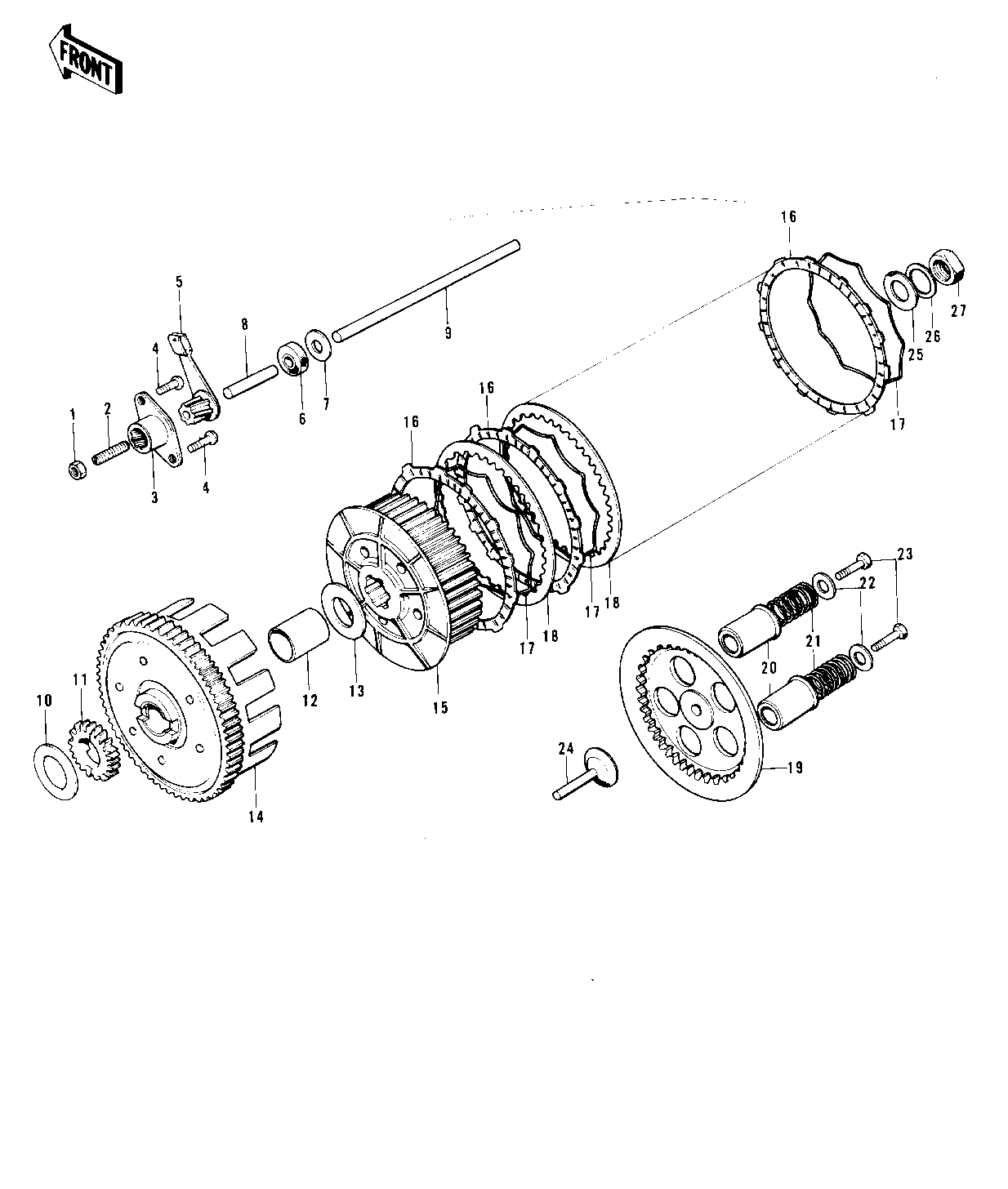

1974 F11-A - CLUTCH ('73-'75 F11/F11-A/F11-B)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| NUT 6MM | 1 | 311B0600 | |||
| NUT 6MM | 1 | 311B0600 | |||
| SCREW-CLUTCH ADJUST | 2 | 92014-011 | |||
| RELEASE OUTER-CLUTCH | 3 | 13118-005 | |||
| SCREW PAN HEAD 6X14 | 4 | 220B0614 | |||
| RELEASE INNER-CLUTCH | 5 | 13102-010 | |||
| OIL SEAL-CLTH PSH RO | 6 | 92050-034 | |||
| WASHER-PLAIN,18MM | 7 | 92026-073 | |||
| PUSH ROD-CLUTCH,SHOR | 8 | 13116-013 | |||
| ROD-CLUTCH PUSH,LONG | 9 | 13116-017 | |||
| WASHER-CLUTCH THRUST | 10 | 92022-168 | 1.4T | ||
| CLUTCH-ASSY | 11~13 | 13081-060 | F11A/B | ||
| PINION-KICKSTARTER | 11 | 13075-008 | |||
| BUSHING | 12 | 92028-105 | |||
| WASHER-PLAIN,20MM | 13 | 92022-189 | |||
| CLUTCH ASSY | 14~23 | 13081-041 | F11 | ||
| HOUSING-CLUTCH | 14 | 13095-031 | |||
| HUB-CLUTCH | 15 | 13087-029 | |||
| PLATE-CLUTCH FRICTIO | 16 | 13088-029 | |||
| RING-CLUTCH STEEL | 17 | 13229-003 | |||
| PLATE CLUTCH STEEL | 18 | 13089-013 | |||
| PLATE-CLUTCH SPRING | 19 | 13187-005 | |||
| GUIDE CLUTCH SPRING | 20 | 13092-005 | |||
| SPRING-CLUTCH | 21 | 92081-083 | |||
| HOLDER CL SPG6.5X20X | 22 | 13091-009 | |||
| BOLT-UPSET | 23 | 112G0618 | |||
| BOLT-UPSET | 23 | 112G0618 | |||
| PUSHER-CLTCH SPRG PL | 24 | 13116-020 | |||
| WASHER-PLAIN | 25 | 92022-229 | |||
| WASHER-LOCK,14MM | 26 | 463G1400 | |||
| NUT,14MM | 27 | 314B1400 |
