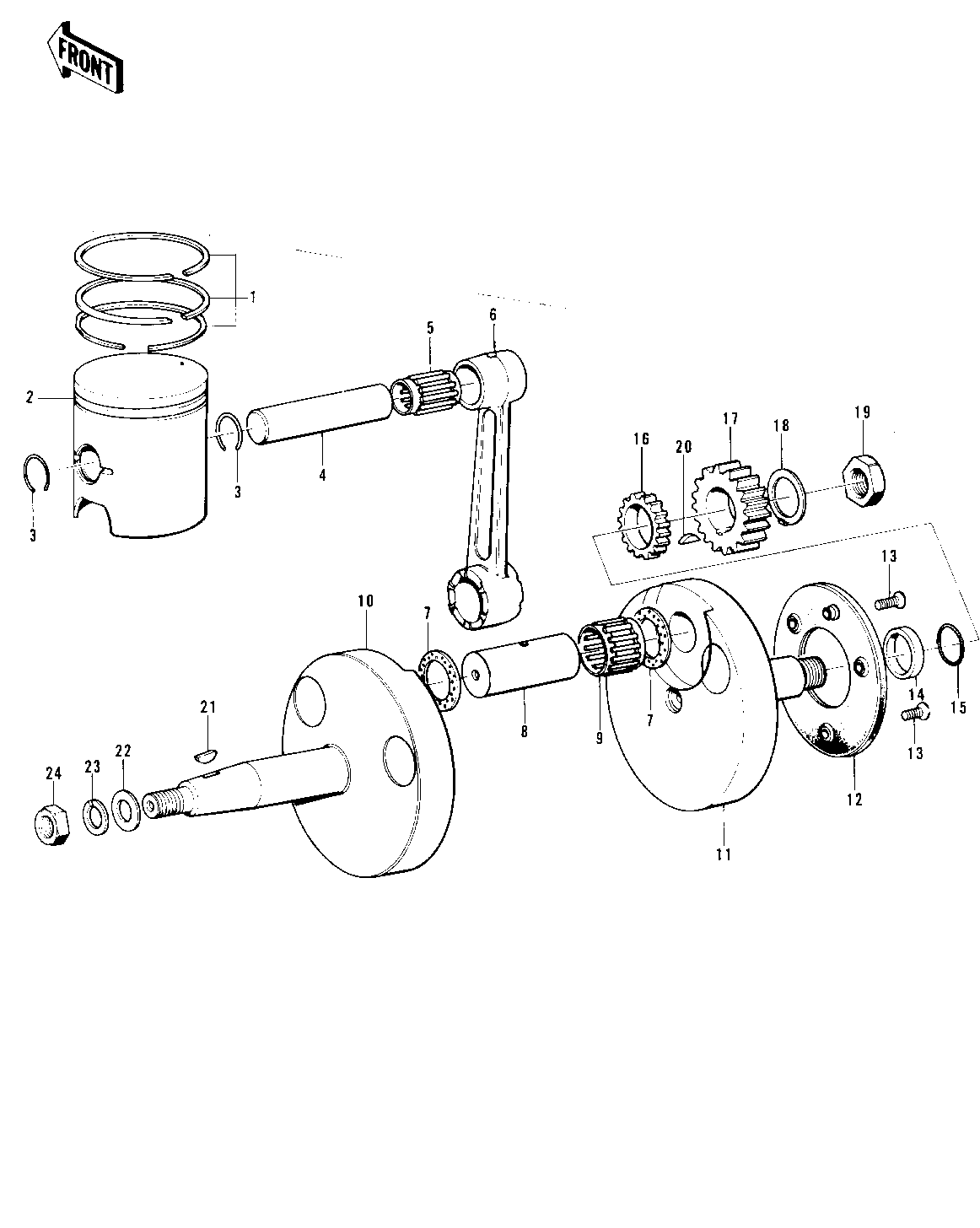

1974 F11-A - CRANKSHAFT/PISTON ('73-'75 F11/F11-A/F11
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| RING SET,STD | 1 | 13008-026 | |||
| RING SET,0.020" O.S | 1 | 13025-030 | |||
| RING SET,0.040" O.S | 1 | 13024-033 | |||
| PISTON,STD | 2 | 13001-053 | |||
| PISTON,0.020' O.S | 2 | 13029-055 | |||
| PISTON,0.040' O.S | 2 | 13027-053 | |||
| CIRCLIP-PISTON PIN | 3 | 92036-015 | |||
| PIN-PISTON | 4 | 13002-017 | |||
| BEARING-SMALL END | 5 | 13033-1010 | KBK182223,8X | ||
| CONNECTING ROD SET | 6~9 | 13044-023 | |||
| CRANK&CONROD ASSY | 6~13 | 13036-037 | |||
| SPACER | 7 | 92026-1241 | |||
| CRANK PIN | 8 | 13035-031 | |||
| PK243219.8XBEARING,BIG END NEED | 9 | 13034-049 | |||
| CRANKSHAFT,L.H | 10 | 13037-049 | |||
| CRANKSHAFT,R.H | 11 | 13038-044 | |||
| OIL RECEIVER | 12 | 13045-009 | |||
| SCREW OVL CNTSNK 5X1 | 13 | 92012-002 | |||
| COLLAR-CRANKSHAFT | 14 | 92027-144 | |||
| "0" RING,20MM | 15 | 670B2020 | |||
| PINION-OIL PUMP | 16 | 16084-013 | 17T | ||
| PINION-PRIMARY | 17 | 13121-022 | 24T | ||
| WASHER,LOCK,18MM | 18 | 92024-067 | |||
| NUT 18MM | 19 | 92015-019 | |||
| WOODRUFF KEY | 20 | 510A5100 | |||
| WOODRUFF KEY | 21 | 92038-001 | |||
| WASHER-PLAIN,14MM | 22 | 92022-172 | |||
| WASHER SPRING 14MM | 23 | 461F1400 | |||
| NUT 14MM | 24 | 92015-043 |
