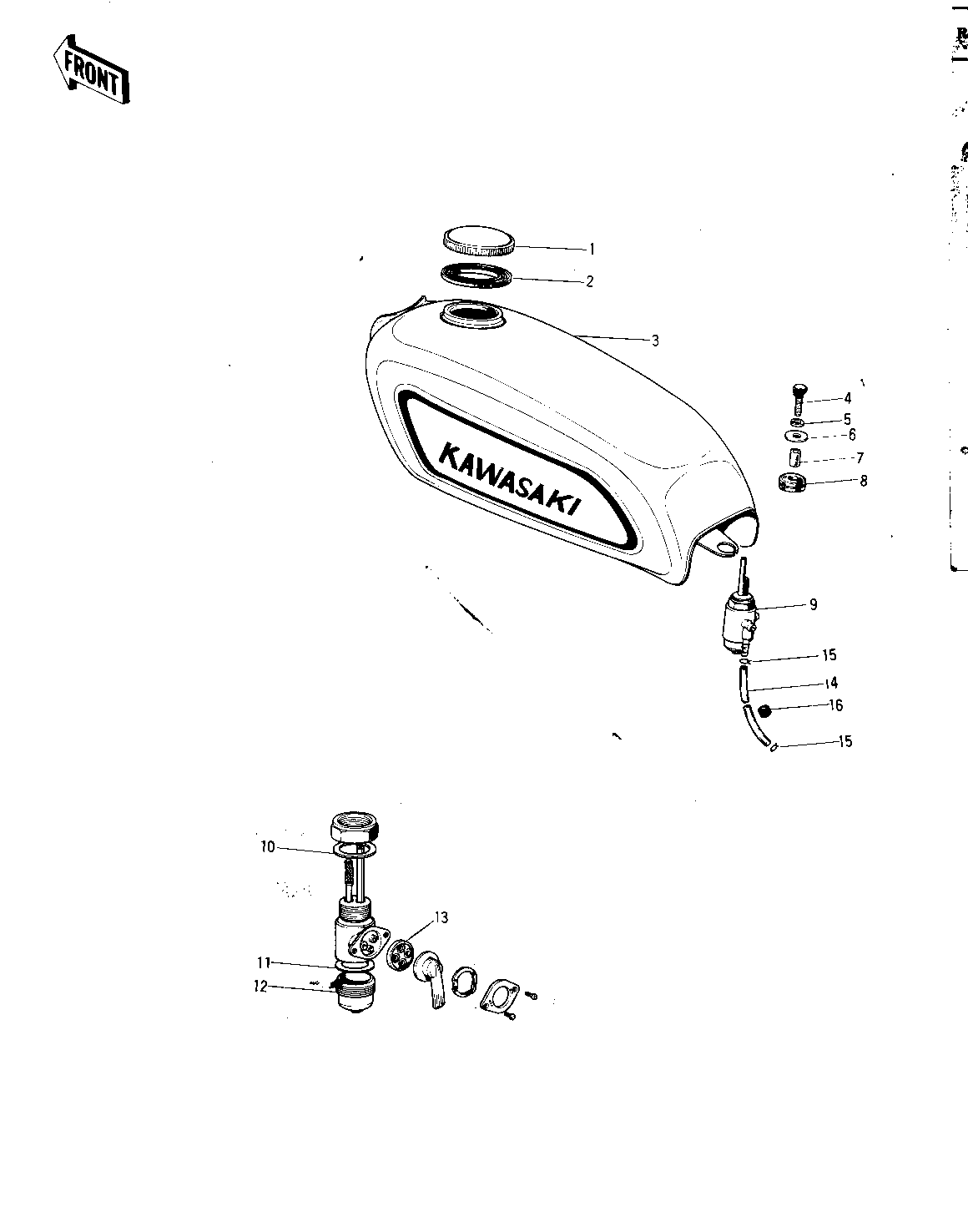

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP FUEL TANK | 1 | 51049-008 | 1 | ||
| GASKET-FUEL TANK CAP | 2 | 51059-007 | 1 | ||
| FUEL TANK-LIME GREEN | 3 | 51001-055-54 | 1 | ||
| BOLT-SMALL-UPSET | 4 | 115B0832 | 1 | ||
| WASHER SPRING 8MM | 5 | 461F0800 | 1 | ||
| WASHER,8X26X2.3 | 6 | 92022-1564 | 1 | ||
| SPACER FUEL TANK REAR | 7 | 92027-034 | 1 | ||
| DAMPER RUBB TANK REAR | 8 | 92075-030 | 1 | ||
| COCK ASSY,FUEL | 9 | 51023-044 | 1 | ||
| GASKET FUEL COCK JONT | 10 | 51032-001 | 1 | ||
| GASKET FUEL COCK CUP | 11 | 51037-007 | 1 | ||
| CUP FUEL COCK | 12 | 51036-003 | 1 | ||
| GASKET FUEL COCK LEV | 13 | 92065-019 | 1 | ||
| PIPE-OIL | 14 | 92059-072 | 1 | L=345 M/M | |
| CLAMP FUEL PIPE | 15 | 92037-010 | 2 | ||
| GROMMET PIPE | 16 | 92071-038 | 1 |
