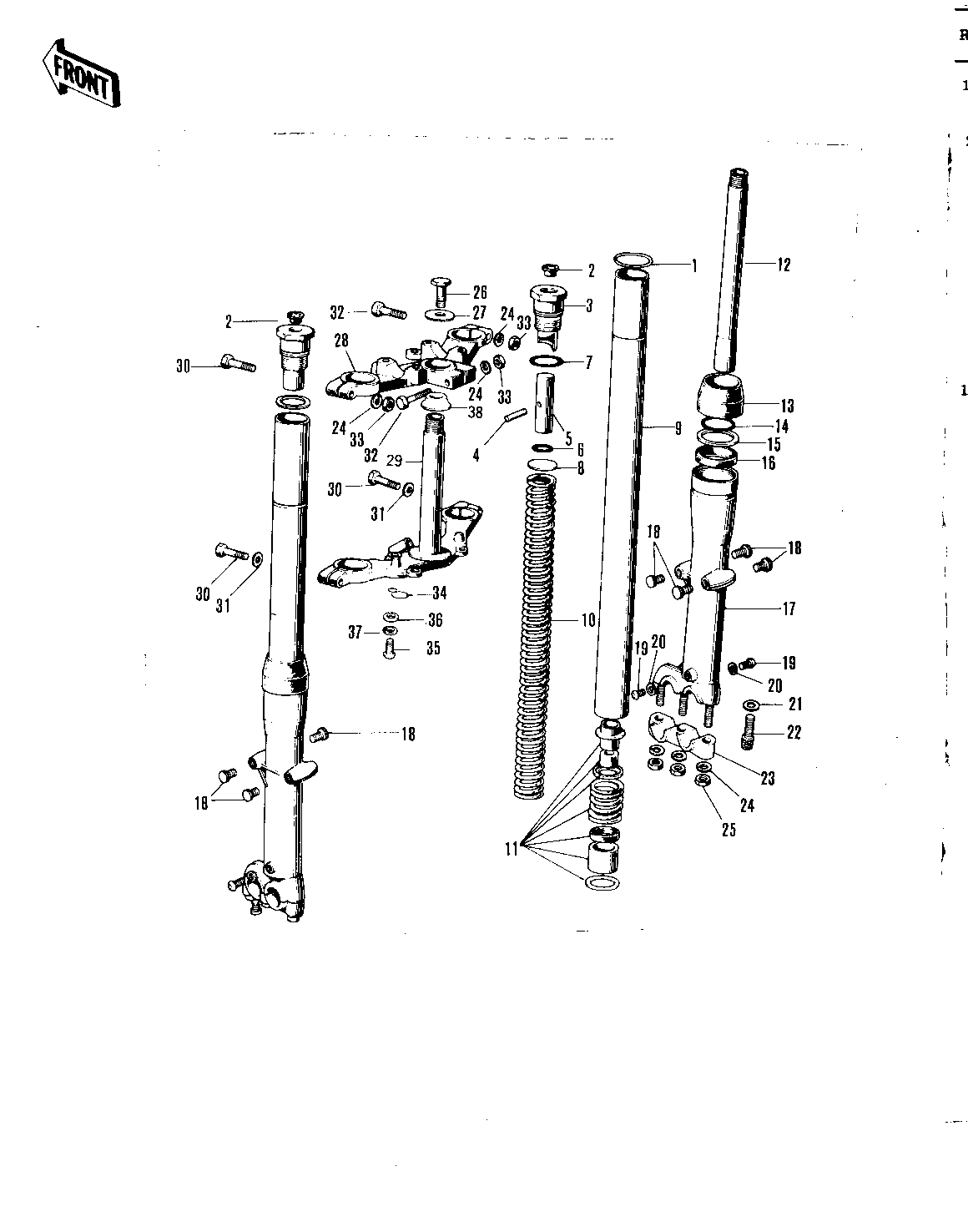

1972 F8-A - FRONT FORK ('71 F81M)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FRONT FORK ASSY 1~33 44001-065 1
CIRCLIP 1 44044-009 2
BOLT-FORK TOP 2~6 44041-030 2
CAP CARB MOUNT HOLE 2 14039-001 2
'O' RING FORK TOP 7 44046-015 2
WASHER-FORK SPRG SEAT 8 44029-015 2
TUBE-FORK INNER 9 44013-022 2
SPRING-FORK 10 44026-028 2
CYLINDER-FORK 11,12 44022-003 2
DUST SHIELD 13 44010-014 2
CIRCLIP OIL SEAL FIT 14 44044-005 2
WASHER OIL SEAL FIT 15 44043-023 2
OIL SEAL,FORK 16 44009-020 2
TUBE OUTER 17 44005-030 2
CAP 18 44062-002 7
SCREW PAN HEAD 4X8 19 220B0408 4
GASKET FORK DRAIN PLG 20 44045-002 4
GASKET FORK CYL BOLT 21 44045-030 2
BOLT FORK CYLINDER 22 44041-027 2
HOLDER-FRONT AXLE 23 44063-001 2
WASHER SPRING 8MM 24 461F0800 9
NUT,8MM 25 311B0800 6
BOLT STRNG STEM HEAD 26 44041-007 1
WASHER STRNG STEM HD 27 44043-016 1
HEAD-STEERING STEM 28 44039-032 1
STEM-STEERING 29 44037-032 1
BOLT HEX HEAD 12X40 30 113B1240 2
WASHER SPRING 12MM 31 461F1200 2
BOLT 32 92001-1578 3
NUT,8MM 33 311B0800 3
CLAMP-CABLE 34 92037-046 1
SCREW PAN HEAD 6X14 35 220B0614 1
WASHER PLAIN 6MM 36 410B0600 1
WASHER SPRING 6MM 37 461F0600 1
CONE STERNG BERG LOW 38 92047-010 1
